DB-SMA-JK-1
DB-SMA-JK-1
detailed information

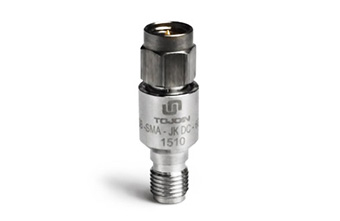

Product Appearance
Product Model DB-SMA-JK-1
Product Name Straightener
Product Number 60.06.090.0014
Technical Specifications
| Working frequency | 50MHz-6000MHz |
Insertion loss(dB) | 0.3 |
Standing wave ratio（VSWR） | ≤1.2 |
Resistance(Ω) | 50±10 |
Interface Type | SMA male-SMA female |
Operating temperature（℃） | -10 - +70 |
Appearance dimension | Φ9.7*29.3mm |
Standards compliant | MIL-C-39012 |

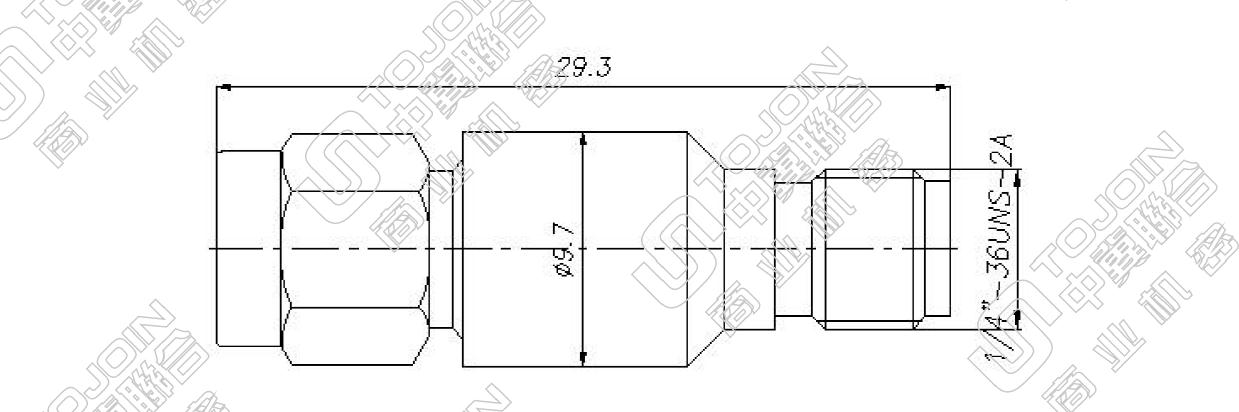

Appearance structure
