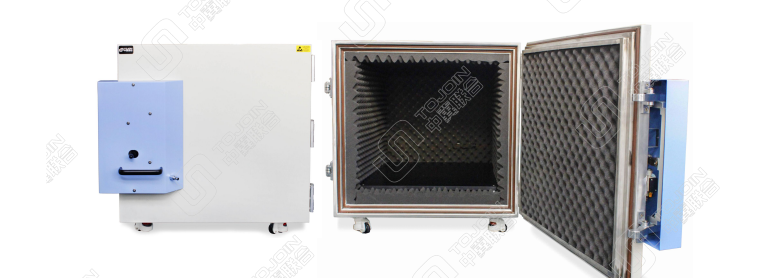

MS6060 series soundproof box
MS6060 series soundproof box
Product Description
MS6060 series is a semi-automatic soundproof box, which is suitable for building modules and terminal test solutions platform in smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, smart home and other fields. The shield box is made of high-quality large-scale plate laser CNC cutting, sheet metal molding, electroplating, electrostatic spraying paint, assembly and commissioning, aging, testing and other more than a dozen strict process, with high shielding effectiveness, reliable structure, stable performance The advantages. Filter selection can be based on the actual needs of the customer, configure the appropriate I / O data interface, RF interface, or finalize the development of non-standard communication interface.
MS6060 Series Technical Specifications
Model/Number | Frequency（GHz） | Shielding effect（dB） | Number of filter openings | Internal and external dimensions（mm） | Weight（kg） |

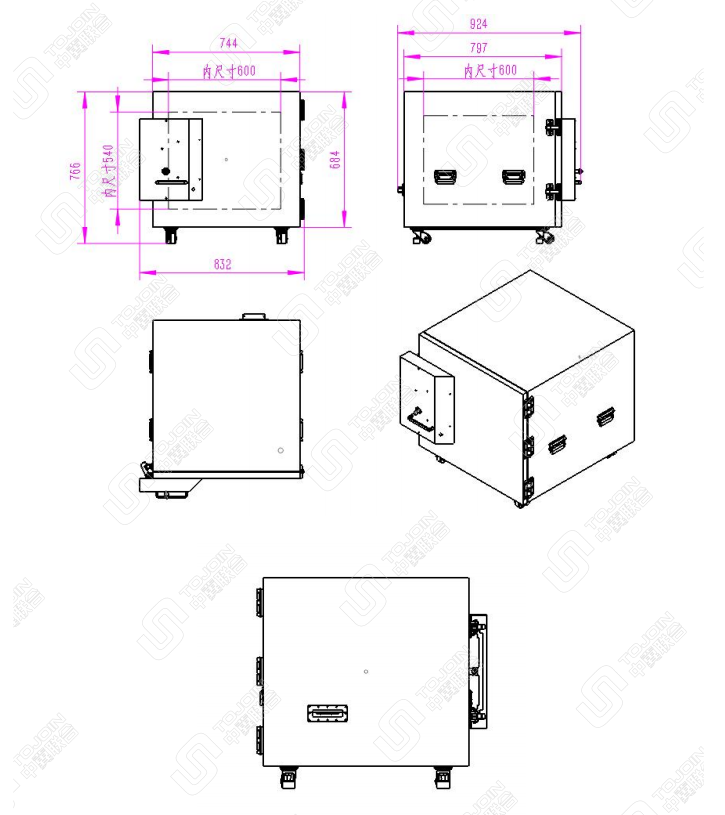

MS6060-A 60.00.001.0611 | 0.7～3 | External≥80 Internal≤45 | 2pcs | Internal：600(W)*600(D)*540(H) External：857.5(W)*932(D)*802(H) | About 135 |
MS6060-B 60.00.001.0612 | 0.7～3 | External≥80 Internal≤45 | 2pcs | Internal：400(W)*400(D)*500(H) External：697.5(W)*784(D)*800(H) | About 95 |
