IPEX I Probe
IPEX I Probe
detailed information
Product Description HIROSE Series (also known as U.FL-R-SMA-1 Series, and IPEX Generation 1)
IPEX I Series Technical Specifications
Model /Number
| Frequency（GHz） | Voltage Standing Wave Ratio | Rated voltage （Vrms） | Insulation resistance（MΩ） | Characteristic impedance（Ω） | Insertion loss（dB） | Operating temperature（℃） | Mechanical life （Times/min） | Center contact fixation |
ST1 00.00.001.0084 | DC～6 | ≤1.25@ DC~6GHz | 250 | ≥1000 | 50 | ≤0.25 | -10~85 | 500 | 26.7N min |
ST2 00.00.001.0083 | DC～6 | ≤1.25@ DC~6GHz | 250 | ≥1000 | 50 | ≤0.25 | -40~85 | 500 | 26.7N min |
ST4 00.00.001.0295 | DC～6 | ≤1.25@ DC~6GHz | 250 | ≥1000 | 50 | ≤0.25 | -10~85 | 500 | 26.7N min |
SMA-KFD(Probe) Five claw probe 00.00.001.0009 | DC～6 | ≤1.3@ DC~6GHz | 250 | ≥1000 | 50 | / | -10~85 | 10万 | 26.7N min |

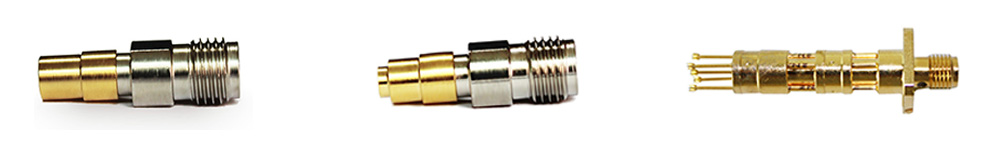

Product Appearance
ST1 ST4 SMA-KFD(Probe)
