DB(HV)-N-JK
DB(HV)-N-JK
detailed information

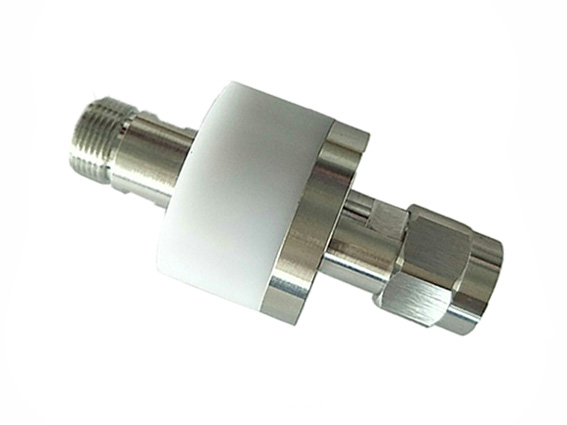

Product Appearance
Product Model DB(HV)-N-JK
Product Name Straightener
Product Number 60.06.090.0009
Technical Specifications
Working frequency | 50MHz-6000MHz |
Insertion loss(dB) | 0.5 |
Standing wave ratio(VSWR) | ≤1.25 |
Resistance(Ω) | 50 |
Interface Type | N male-N female |
Operating temperature(℃) | -10 - +70 |
Appearance dimension | Φ38*78.3mm |
Standards compliant | MIL-C-39012 |

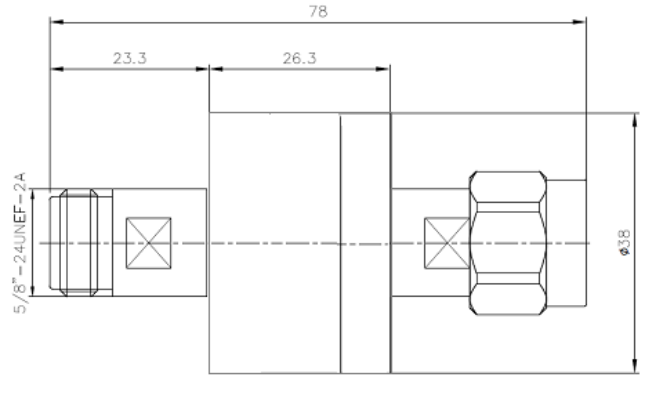

Appearance structure
