M3020 series shielding box
M3020 series shielding box
Product Description

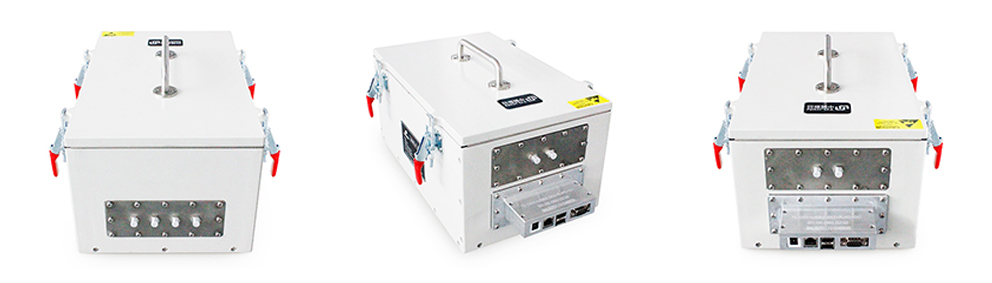

M3020 series is a manual shielded box for wireless network card and other wireless communication equipment detection. The shield box is made of aluminum alloy material bending, good shielding and tight structure. The shielding box has a shielding factor of up to 75dB and a test frequency of up to 6GHz. It is an extremely economical and practical shielding test box. Its low price can reduce unnecessary expenses for the company. The product has been successfully recognized by customers at home and abroad, and has received favorable comments.
M3020 Series Technical Specifications
Model/Number | Frequency（GHz） | Shielding effect（dB） | Number of filter openings | Internal and external dimensions（mm） | Weight（kg） |

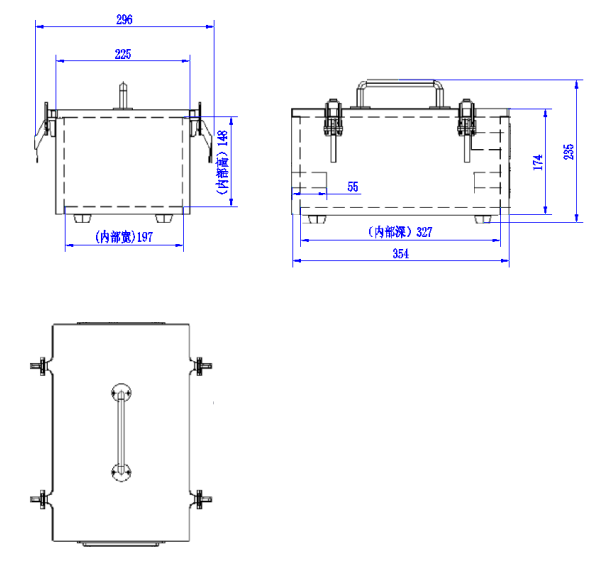

M3020 60.00.011.0220 | 0.8～8 | ≥75@2.4GHz/5.8GHz | 2pcs | Internal：327(W)*197(D)*148(H) External：354(W)*296(D)*204(H) | About 8 |
M3020-A 60.00.011.0223 | 0.8～8 | ≥75@2.4GHz/5.8GHz | 3pcs | Internal：327(W)*197(D)*148(H) External：354(W)*296(D)*235(H) | About 12 |
