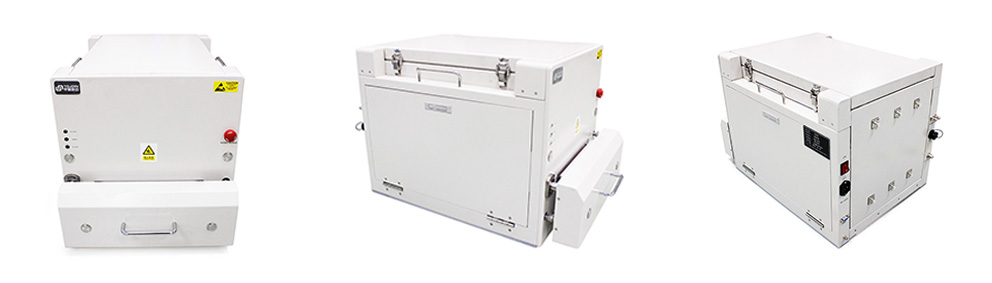

Electromagnetic wave room
Electromagnetic wave room
Product Description
The ultra-wideband antenna array compact field electromagnetic chamber is suitable for mobile phone wireless testing, and is mainly applicable to the design and manufacture without radio frequency interference in the test of mobile phone production, as well as the receiver sensitivity test and transmitter radiated power test; it is used in small UHF systems. EMI, EMS testing. The electromagnetic wave room is made of high-quality large-scale plate laser CNC cutting, sheet metal forming, electroplating, electrostatic spraying paint, assembly and debugging, aging, testing and other more than a dozen strict process, with the advantages of reliable structure and stable performance.
Technical Specifications
Model/Number | Frequency（GHz） | Shielding effect（dB） | Number of filter openings | Internal and external dimensions（mm） | Weight（kg） |
AS4356-A 60.00.102.1151 | 0.8~6 | ≥80@2.4GHz&5.8GHz | 2pcs | Internal：230(W)*460(D)*330(H) External：430(W)*560(D)*410(H) | About 60 |
AS5556 60.00.102.1270 | 0.8~6 | ≥80@2.4GHz&5.8GHz | 1pcs | Internal：350(W)*460(D)*470(H) External：550(W)*560(D)*550(H) | About 60 |
AS4356 60.00.102.1150 | 0.8~6 | ≥75@2.4GHz/5.8GHz | 0 | Internal：310(W)*510(D)*380(H) External：439(W)*696(D)*440(H) | About 35 |
MS4040-X 60.00.001.1310 | 0.8~6 | ≥90@2.4GHz ≥85@5.8GHz | 5pcs | Internal：400(W)*400(D)*400(H) External：530(W)*605(D)*502(H) | About 40 |
