SD6058 series shielding box
SD6058 series shielding box
Product Description
SD6058 is an economical pneumatic single-layer shielding box. It is suitable for building modules and terminal test solution platforms in smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, and smart homes. The shield box is made of high-quality large-scale plate laser CNC cutting, sheet metal molding, electroplating, electrostatic spraying paint, assembly and commissioning, aging, testing and other more than a dozen strict process, with high shielding effectiveness, reliable structure, stable performance The advantages. Filter selection can be based on the actual needs of the customer, configure the appropriate I / O data interface, RF interface, or finalize the development of non-standard communication interface.
SD6058 Series Technical Specifications
Model/Number | Frequency(GHz) | Shielding effect(dB) | Number of filter openings | Internal and external dimensions(mm) | Weight(kg) |
SD6058 60.00.102.1070 | 0.8～6 | ≥80@2.4GHz/5.8GHz | 5pcs | Internal:546(W)*566(D)*400(H) External:690(W)*715(D)*514(H) | About 40 |

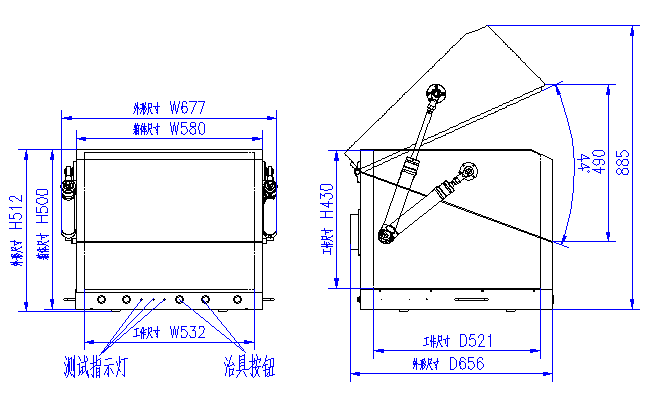

SD6058-C 60.00.102.1073 | 0.8～6 | ≥80@2.4GHz/5.8GHz | 4pcs | External:677(W)*656(D)*512(H) | About 40 |

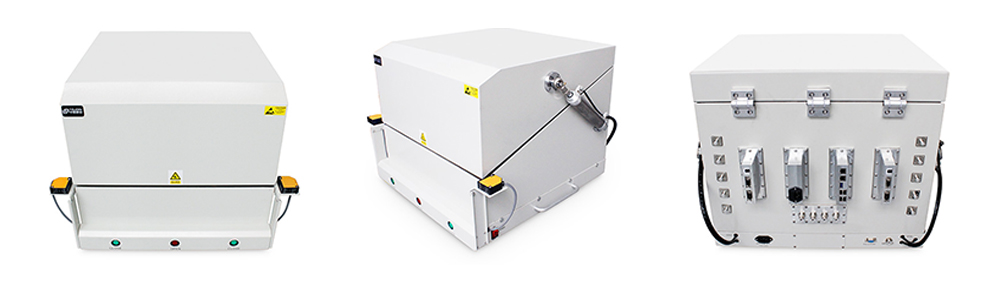

Product Appearance

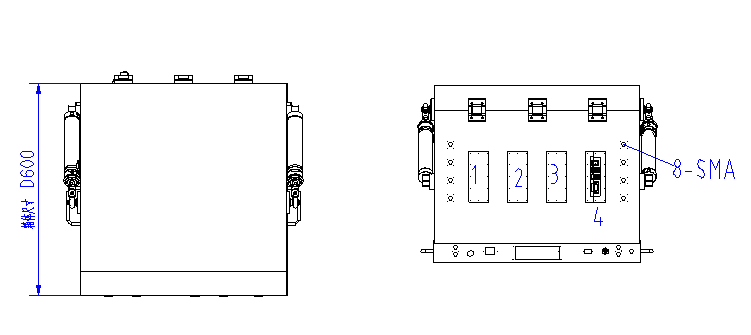

SD6058
