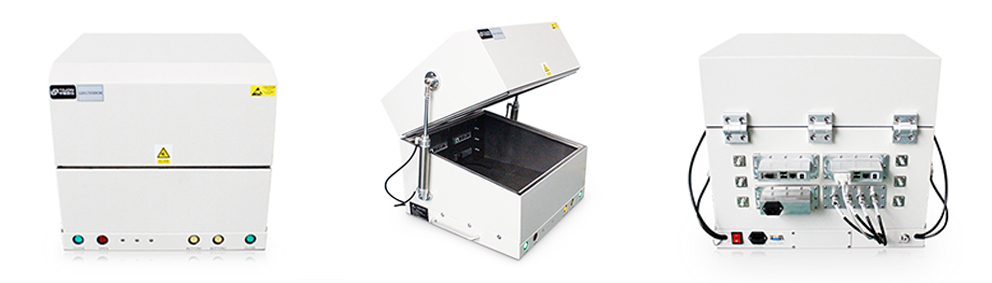

SD5051 series shielding box
SD5051 series shielding box
Product Description
SD5051 is an economical pneumatic single shield box. It is suitable for building modules and terminal test solution platforms in smart phones, WI-FI, Bluetooth, smart grid devices, automotive electronics, drones and smart homes. The screen box adopts the advantages of high-quality large-sized plate laser numerical control cutting, sheet forming, electroplating, electrostatic spraying, assembly and debugging, aging, testing, etc., with strict procedures, good shielding effect, reliable structure and stable performance. Filter selection can be based on the actual needs of customers, configure the appropriate I / O data interface and RF interface, or ultimately determine the development of non-standard communication interface.
SD5051 Series Technical Specifications
Model/Number | Frequency(Ghz) | Shielding effect(dB) | Number of filter openings | Internal and external dimensions(mm) | Weight(kg) |

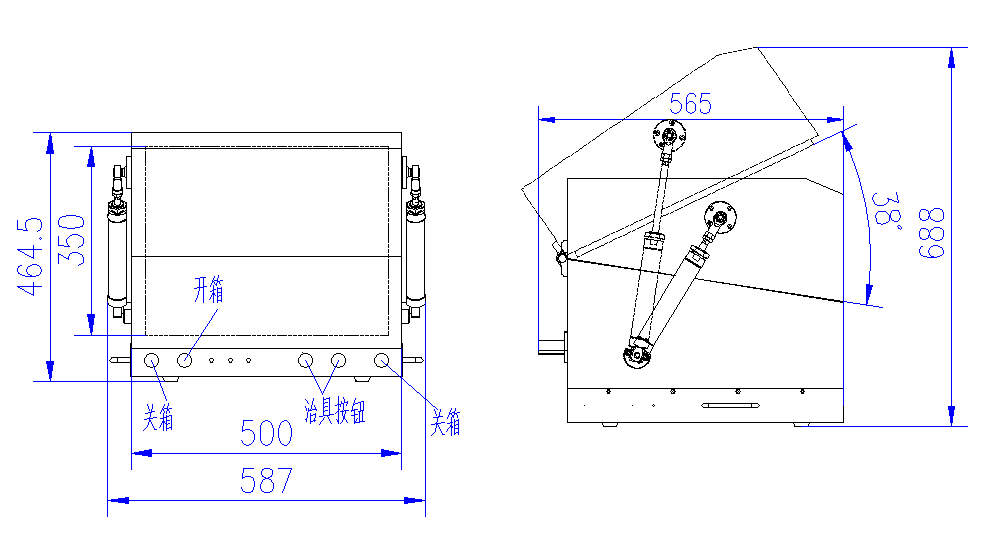

SD5051 60.00.102.1160 | 0.8~6 | ≥80@2.4GHz/5.8GHz | 4pcs | External:587(W)*565(D)*464.5(H) | About 30 |
SD5051-A 60.00.102.1162 | 0.8~6 | ≥80@2.4GHz/5.8GHz | 4pcs | External:605(W)*609(D)*494(H) | About 30 |
SD5051-B 60.00.102.1161 | 0.8~6 | ≥80@2.4GHz/5.8GHz | 4pcs | Internal:480 (W)*490(D)*310(H) External:580(W)*592(D)*408(H) | About 30 |
