TYPE C RF Filter

79PS-TYPE C RF Filter

Supports IEEE802.11a/b/g/n/ac/ax/be

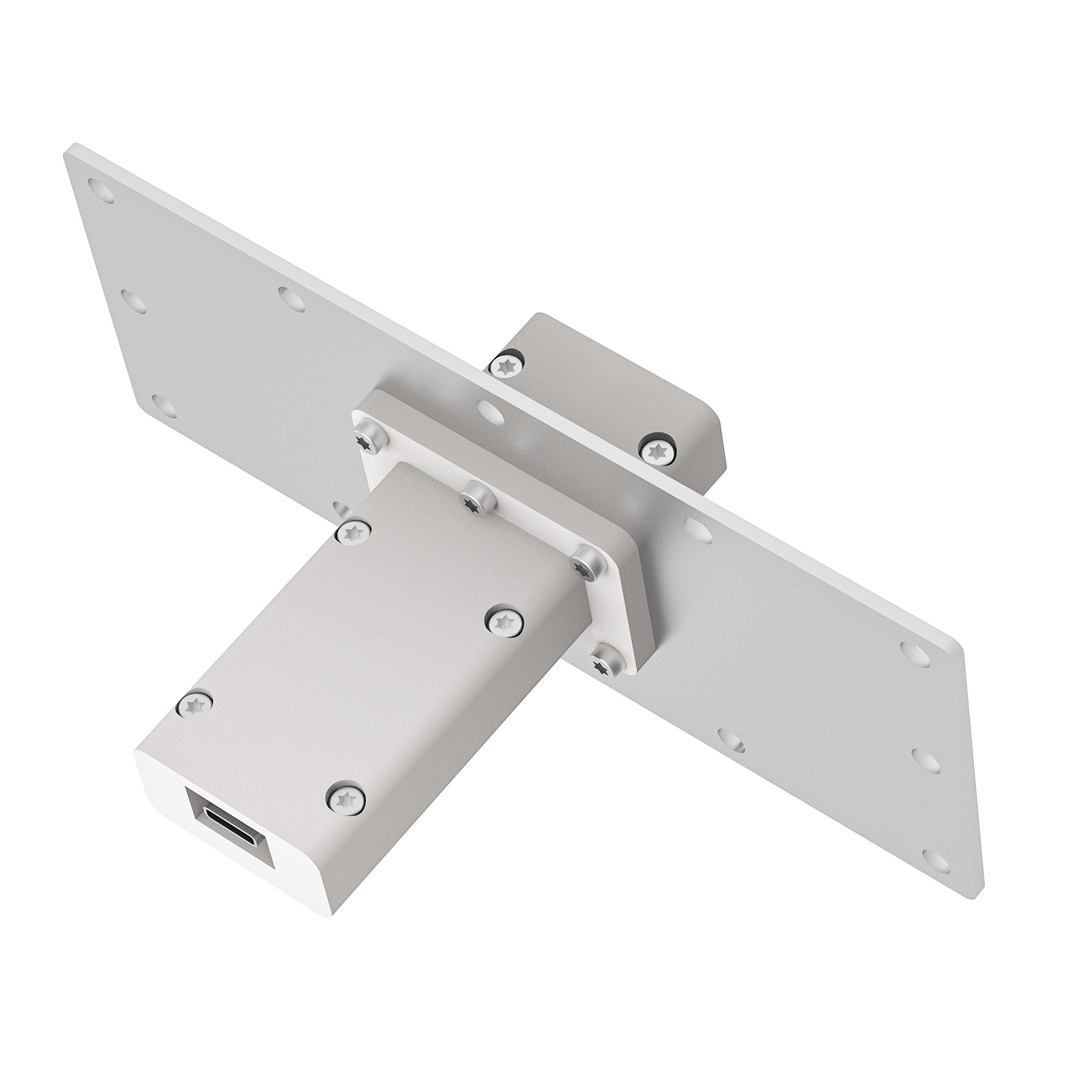

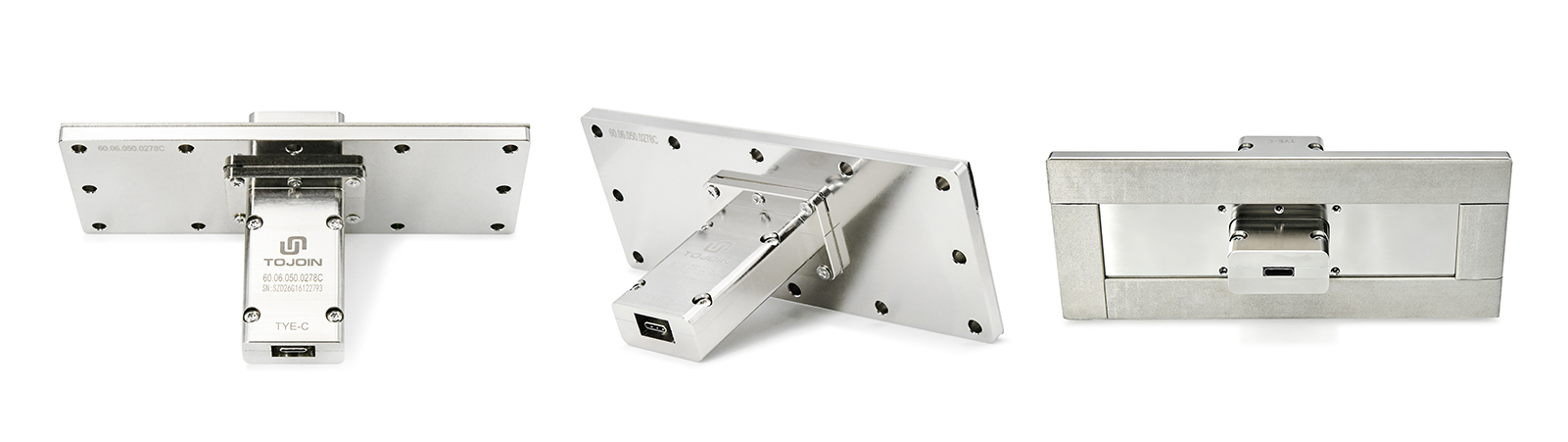

Product Appearance

P/N：60.06.050.0278C

General pictures are for illustration only

Interface Type

• Type-C port, male on the outside, female on the inside

Product Overview

This shielded enclosure filter covers the 800–8000 MHz frequency range, with an isolation of ≥70 dB, delivering excellent filtering performance. It features a Type C interface and is compatible with high-speed networking and data transmission. With an operating temperature range of -30°C to +70°C, its compact, integrated design ensures stability and is specifically engineered for electromagnetic compatibility filtering in multi-interface devices.

Big Deal

• Ultra-wideband: 0.8–8 GHz

• Supports full-featured 24P Type-C

• Isolation ≥75 dB, with outstanding EMI suppression

• Data rate greater than 5 Gbps

Applications

• Industrial control and automation equipment

• Telecommunications equipment, servers, and network terminals

• Test instruments, server rooms, and environments with strong electromagnetic fields

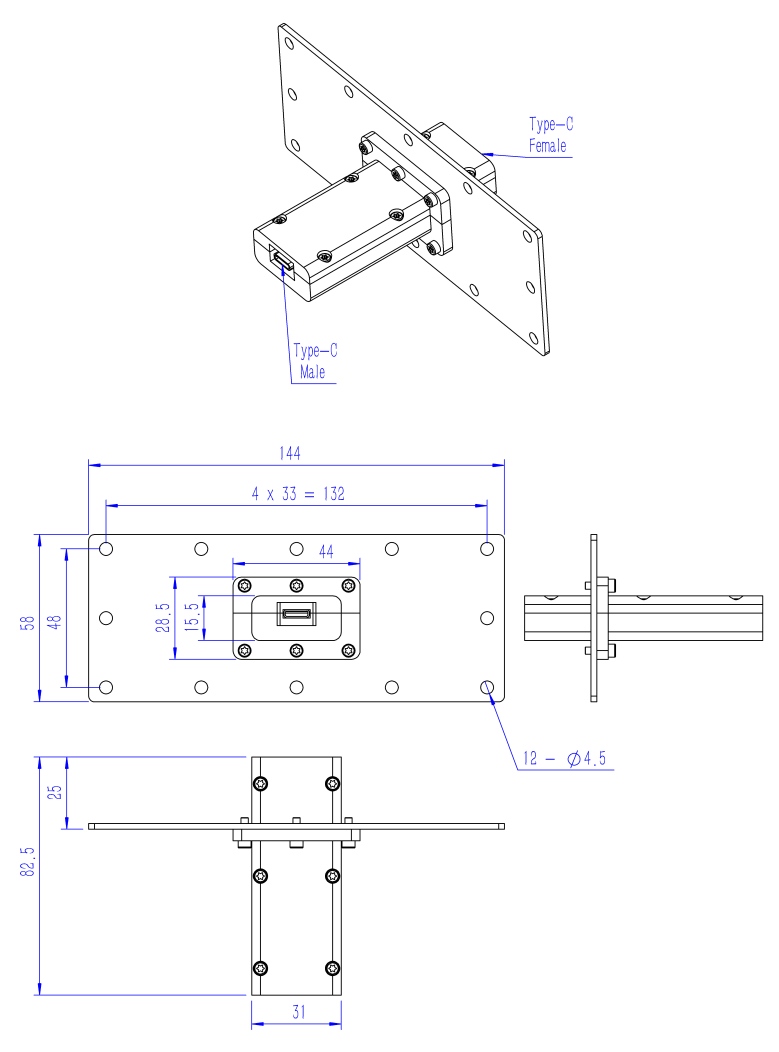

Appearance and Structure (Unit: mm)

Technical Parameter

Electrical Schematic

*The information in this document is intended to assist users in product selection. Users are advised to conduct tests to determine whether the product meets the requirements of the corresponding application scenarios. Product specifications and descriptions herein are subject to change without prior notice.
