AC+DC*2 Filter
AC+DC*2 Filter
detailed information
Product Model: AC+DC*2 （us plug）
PN: 60.06.050.0005A

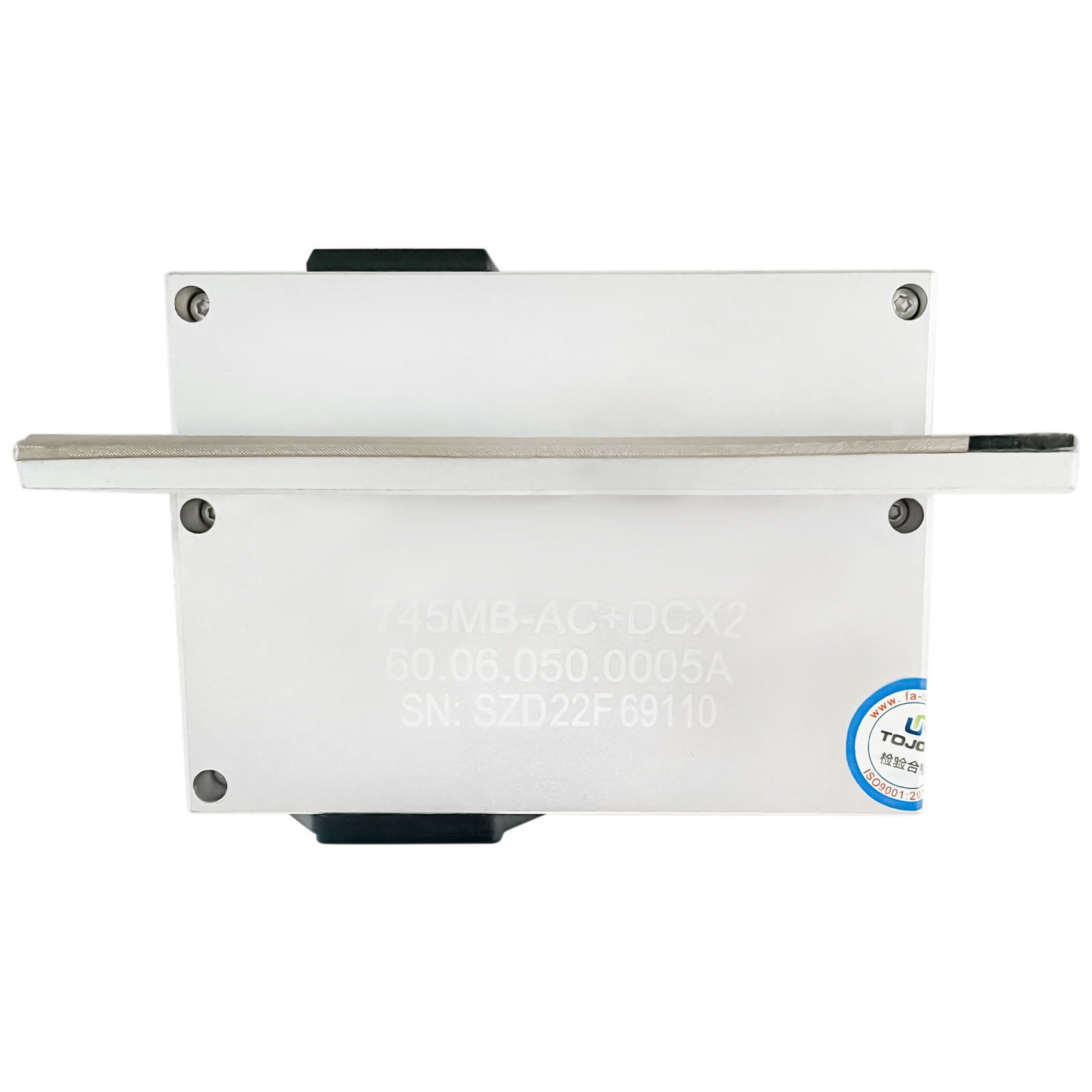

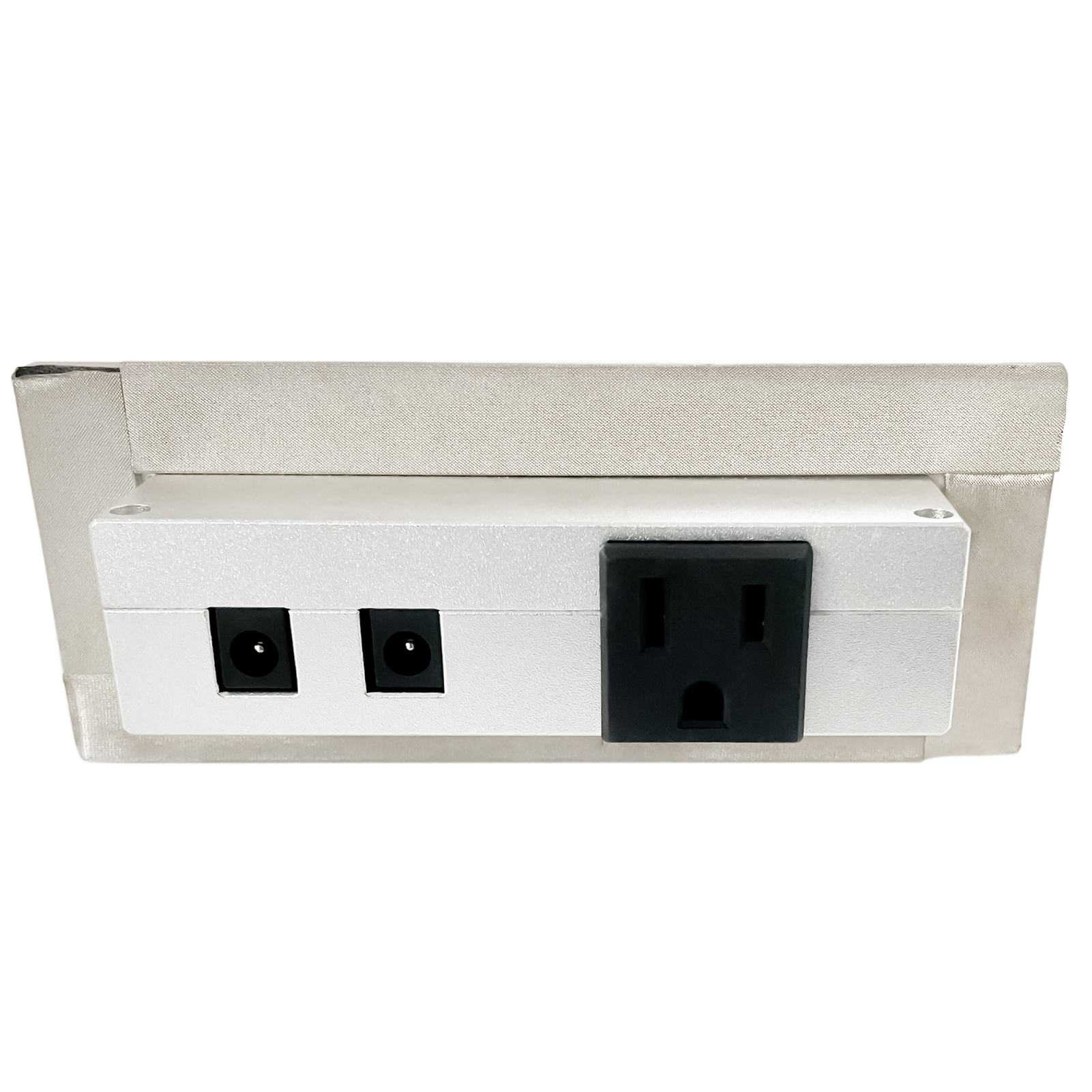

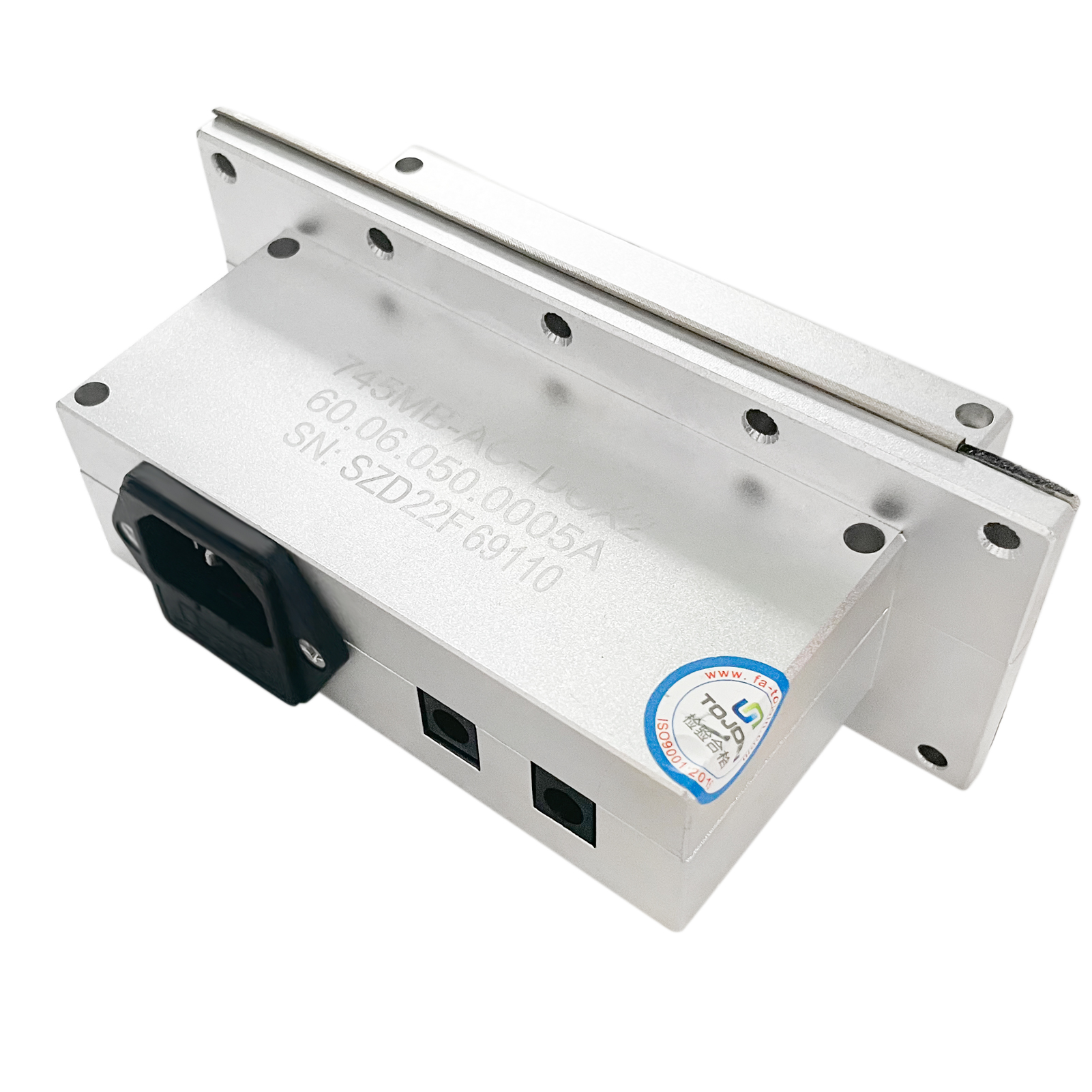

Product Appearance
|
|  |
Applications
Weather Radar and Satellite Communication Systems
Test and Measurement Equipment
Technical Parameter
| Frequency Range(MHz) | 800-8000 | |
| Shielding Performance(dB) | ≥70 | |
| AC | Operating Voltage(V) | 250 |
| Operating Current(A) | 10 (typ.5A) | |
| Leakage Current(mA) | ≤1.5 | |
| Interface Type | us plug | |
| DC | Operating Voltage(V) | 50 |
| Operating Current(A) | 2 | |
| Leakage Current(mA) | ≤1.5 | |
| Interface Type | Outer 5.5mm,Inner 2.1mm | |
| Material | Aluminum | |
| Operating Temperature(°C) | 5~70 | |
| Dimension(mm) | 144*90*57 | |
| Weight(g) | 540(typ.) | |

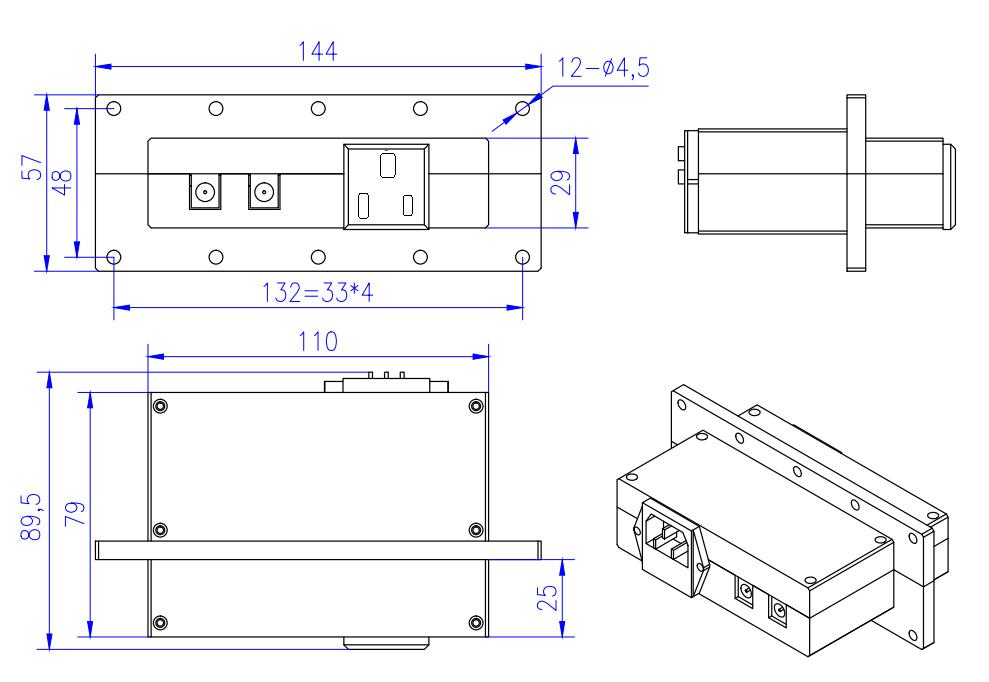

Appearance Structure
