Signal Generator GNSS-6000
Signal Generator GNSS-6000
Product Model: Signal Generator GNSS-6000
Product Code: 60.01.001.0066

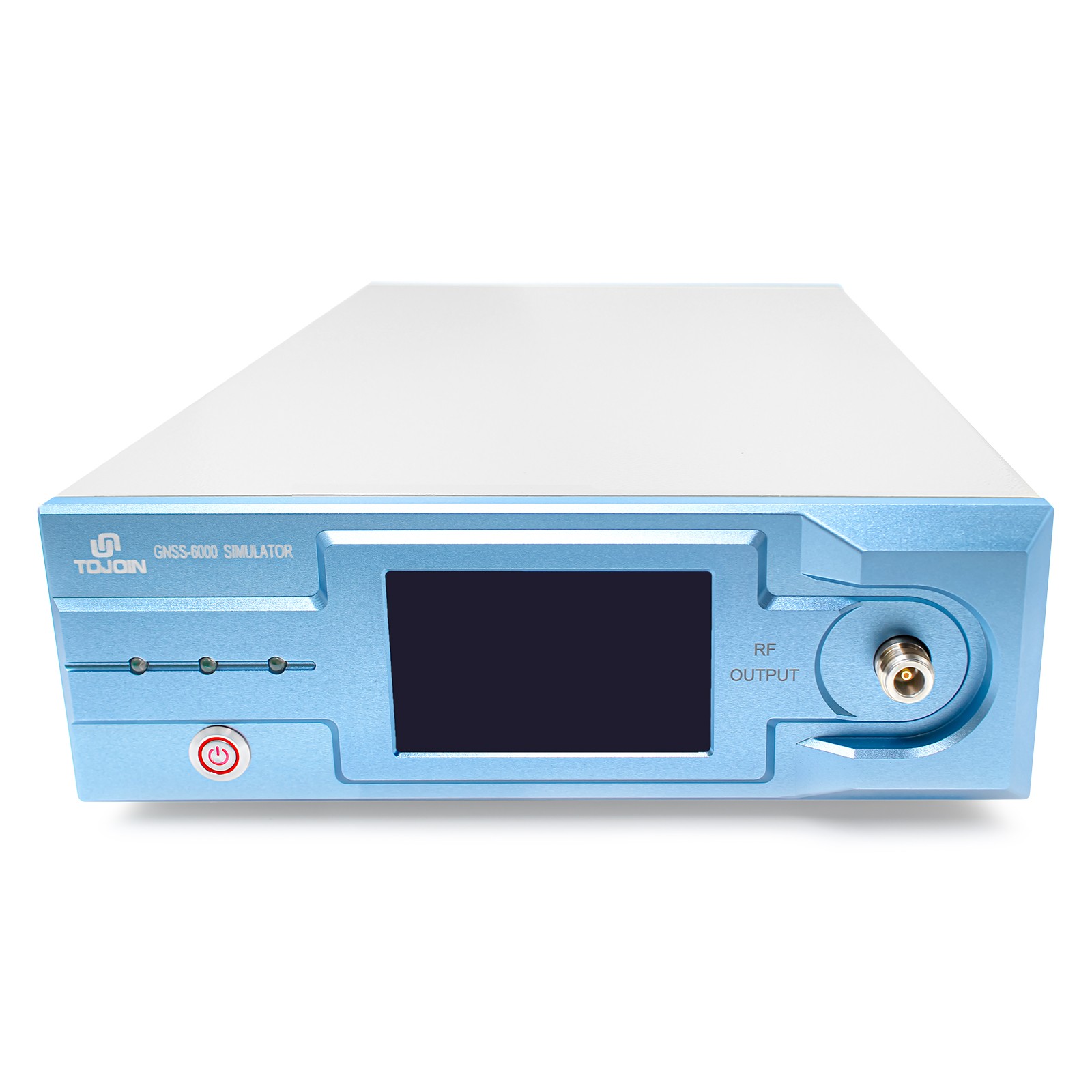

Product Appearance：
Product Introduction:
The GNSS-6000 is a compact, versatile, and portable GNSS signal generator designed to meet users' testing needs. It can simulate real-world satellite signals indoors. The device is ideal for testing, evaluating, and verifying the performance and accuracy of navigation equipment and modules. It is user-friendly, cost-effective, and provides excellent performance, making it suitable for GNSS research, development, and production testing.
Product Features:
Support multiple scenarios with corresponding selectable signal outputs.
Flexible and quick switching between different GNSS signal outputs.
Continuous signal stability, supporting uninterrupted playback of simulated signals for up to 24 hours (maximum continuous operation of one week without restart).
Portable and compact, easy to use.
Supports multiple constellations and frequencies.
Technical Specifications:
1.Supported Frequency
| Supported Systems | Frequency Bands |
| GPS | L1,L2,L5 |
| BeiDou (BDS) | B1I,B1C,B2I,B2a, B2b,B3I |
| GLONASS | G1, G2 |
| Galileo | E1, E5a, E5b, E6 |
| IRNSS/NavIC | L1,L5 |
| QZSS | L1,L2,L5,L6 |
| SBAS | L1,L5 |
2.Power Performance:
Maximum Output Power: -90dB
Output Power Adjustment Range: 90dB
Power Adjustment Step Size: 1dB
Input Power Range:-100dBm~-130dBm
3.Storage Capacity:
512GB/1TB (Selectable based on needs)

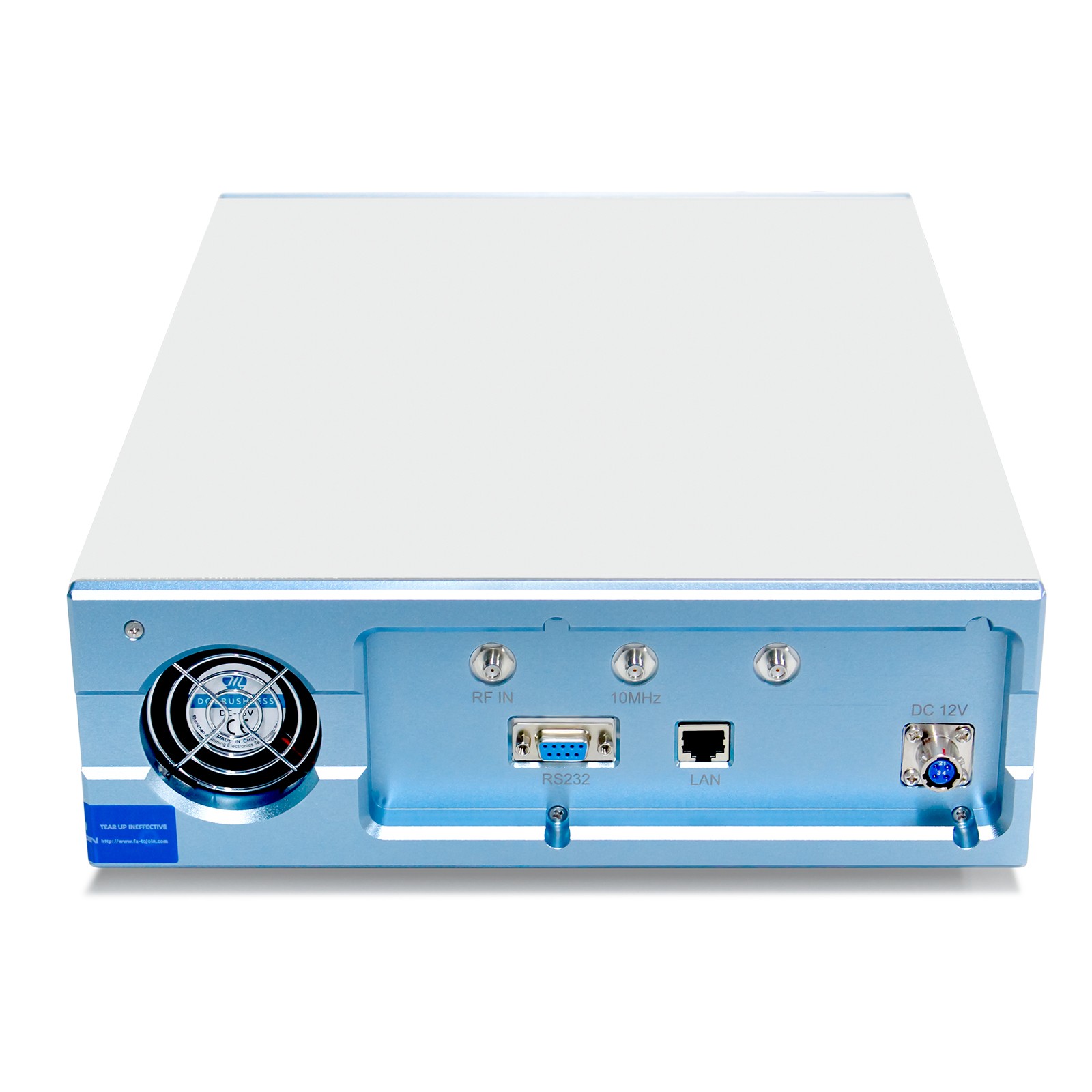

4.Connector
Input :SMA Female
Output :N Female
5.Operation Method
Remote Operation：RS232, RJ45
Touchscreen Operation：4.3-inch touchscreen
6.Power Supply:
Input Voltage:100V-240V/AC (with power adapter)
Power Consumption:s10W
7.Playback Duration:
2 hours
8.I/Q Quantization Levels:
Configurable to 2-bit or 4-bit
