MS2014 Shield Box
MS2014 Shield Box
detailed information

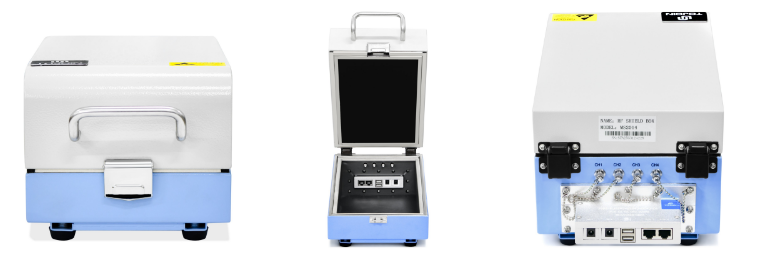

Product Name:Manual RF Shield Box
Model: MS2014
No:60.00.001.1460A
Specification
| Working Frequency(GHz) | 0.8~8GHZ |
| Shielding Effect(dB) | >=75 |
| Interface Type | DB9、USB2.0、SMA、RJ45、BNC、DC、AC |
| Numbers of Filters(pcs) | 1pcs+4SMA |
| Control Method | Manual |
| Working Temperature(°C) | Normal work |
| Work Size (mm) | 166(W)*273 (D)*127 (H) |
| Box Size (mm) | 200(W)*303(D)*148 (H) |
| Dimensions (mm) | 200(W)*405(D)*168 (H) |
| Weight (kg) | 6 |

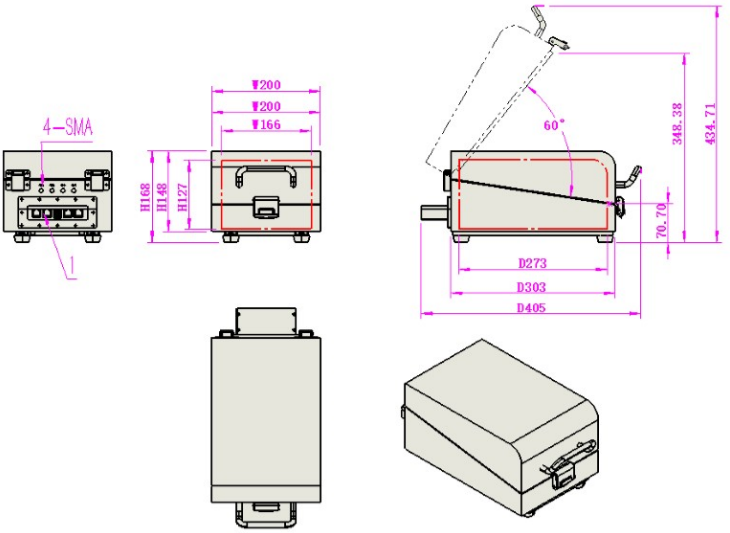

Structure
