SD6050 shielding box

SD6050 shielding box


detailed information

Product Name    shielding box

Product Model   SD6050

Product Number   60.00.102.0150

Technical Specifications

Working frequency(GHz)

0.8~8

Shielding effect

≥75dB@2.4GHz/5.8GHz

Interface Type

VGA,DB9,DB25,USB2.0,USB3.0,SMA,RJ45,BNC,RCA,DC,AC,optical fiber,HDMI,AV3.5, etc. (Could be customized and optional)

Numbers of filters

4 pcs

Control method

Touch switch control
Compatible with RS232 communication instructions
PLC online programming control (option)

Safety protection measures

Magnetic ring, light sensor dual protection, ensure operational safety

Working temperature(℃)

Normal temperature work

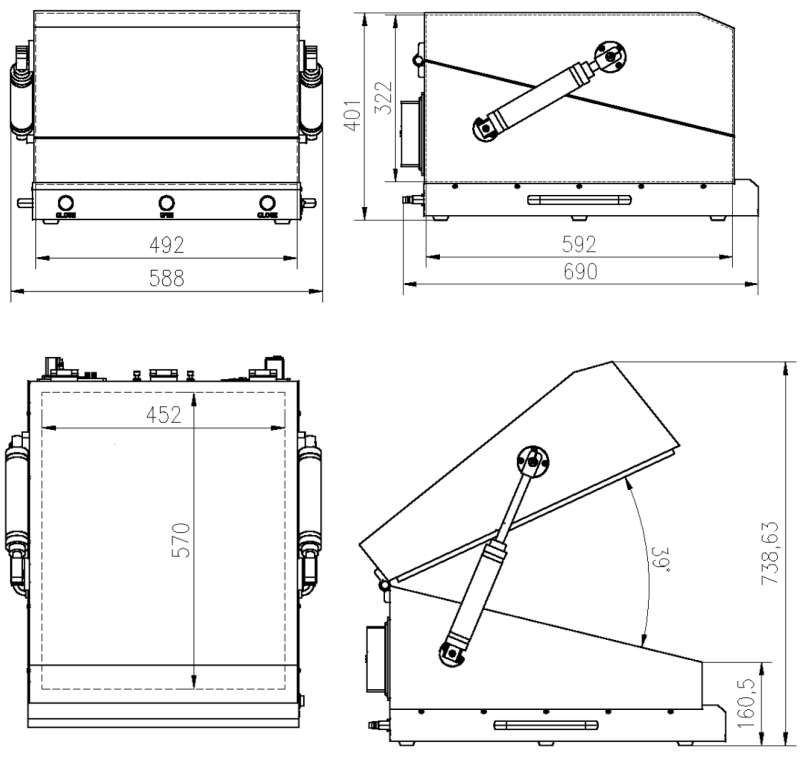

Working size(mm)

495(W)*595(D)*325(H)

Appearance dimension(mm)

600(W)*705(D)*405(H)

Weight(Kg)

About 50

Appearance of color

Beige (according to customer requirements)

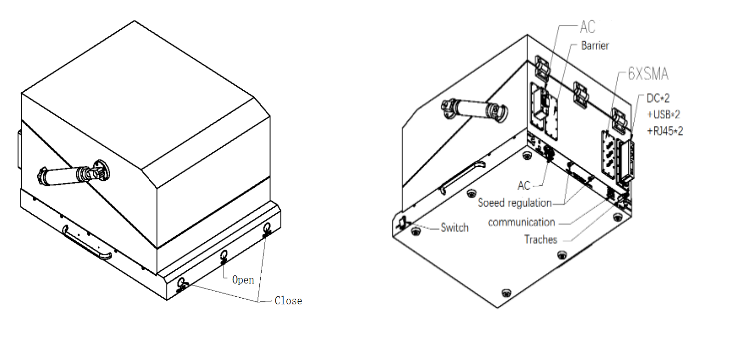

Appearance structure
