SMA/UFL-KWK-1 RF probe
SMA/UFL-KWK-1 RF probe
detailed information
SMA/UFL-KWK-1 RF probe (sharp needle type)
Model /Number
| Frequency （GHz） | Voltage Standing Wave Ratio | Rated voltage（Vrms） | Insulation resistance | Characteristic impedance（Ω） | Insertion loss （dB） | Operating temperature（℃） | Mechanical life |
SMA/UFL-KWK-1 (sharp needle type) 00.00.001.0430 | DC～6 | ≤1.3@ 0~6GHz | 335 | ＞500Ω | 50 | ≤0.2@ DC~6GHz | -10~85 | 3000 |

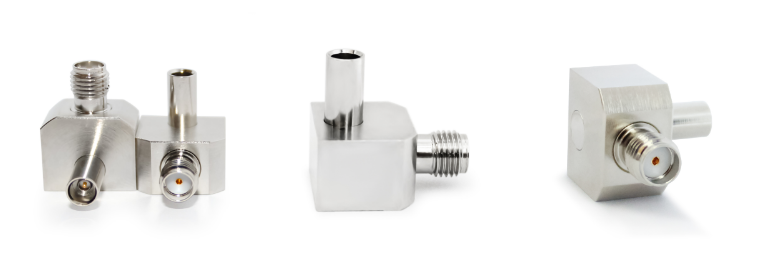

Pictures

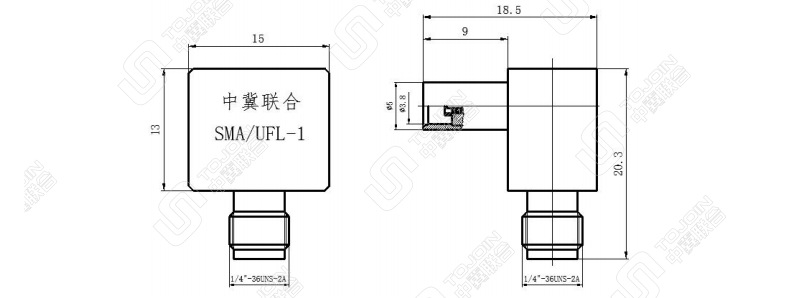

Structure
