SMAK-156 RF probe
SMAK-156 RF probe
detailed information

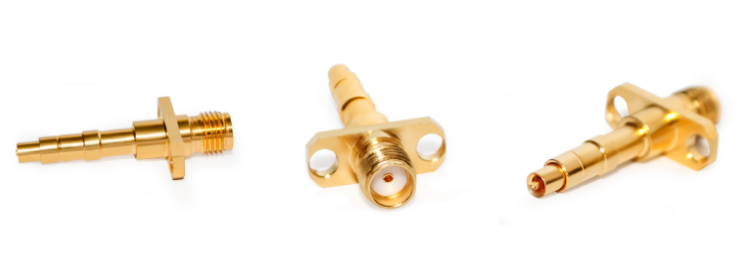

SMAK-156 RF probe (concave needle type)
Technical Specifications
Model /Number
| Frequency （GHz） | Voltage Standing Wave Ratio | Rated voltage（Vrms） | Insulation resistance | Characteristic impedance（Ω） | Insertion loss （dB） | Operating temperature（℃） | Mechanical life | Center contact fixation |
SMAK-156 (concave needle type) 00.00.001.0413 | DC～8 | ≤1.3@ 0~8GHz | 500 | ＞1000Ω | 50 | ≤0.5@ DC~8GHz | -10~125 | ＞500 | 26.7N min |

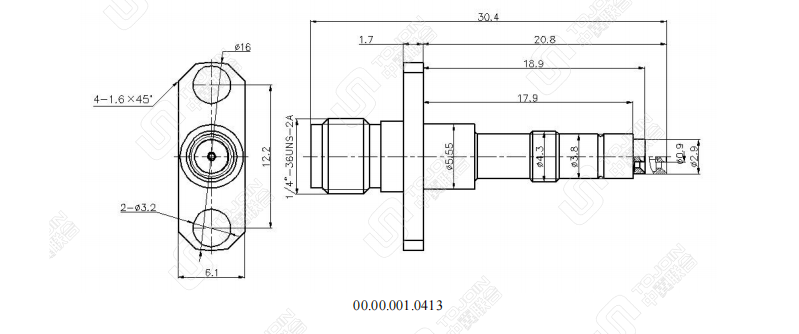

Structure
