MS5050-014 RF Shield box
MS5050-014 RF Shield box
detailed information
Product Name:Manual RF Shield Box
Model: MS5050-014
No:60.00.001.0547
Specification
| Working frequency(GHz) | 0.8~8GHz |
Shielding effect | ≥75dB @2.4GH/5.8GHz |
Interface Type | VGA、DB9、DB25、USB2.0、USB3.0、SMA、RJ45、BNC、RCA、DC、AC |
numbers of filters | 6pcs |
working temperature（°C） | Normal work |
Inside Dimensions（mm） | 507(W)*501(D)*507(H) |
Dimensions（mm） | 561(W)*639(D)*533(H) |
Weight（kg） | 25 |

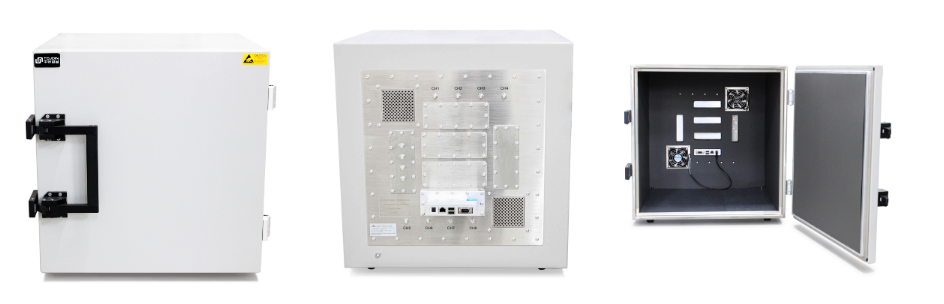

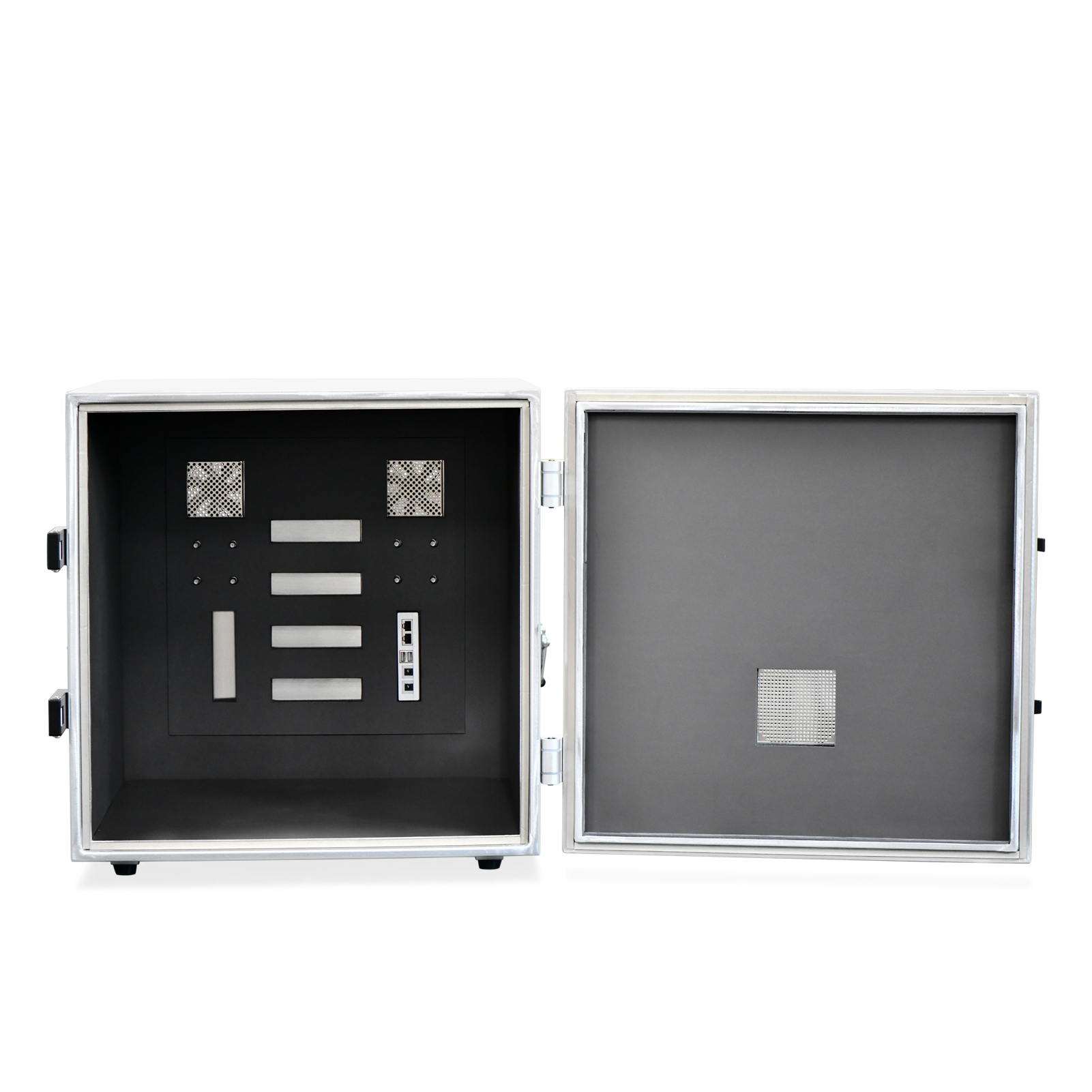

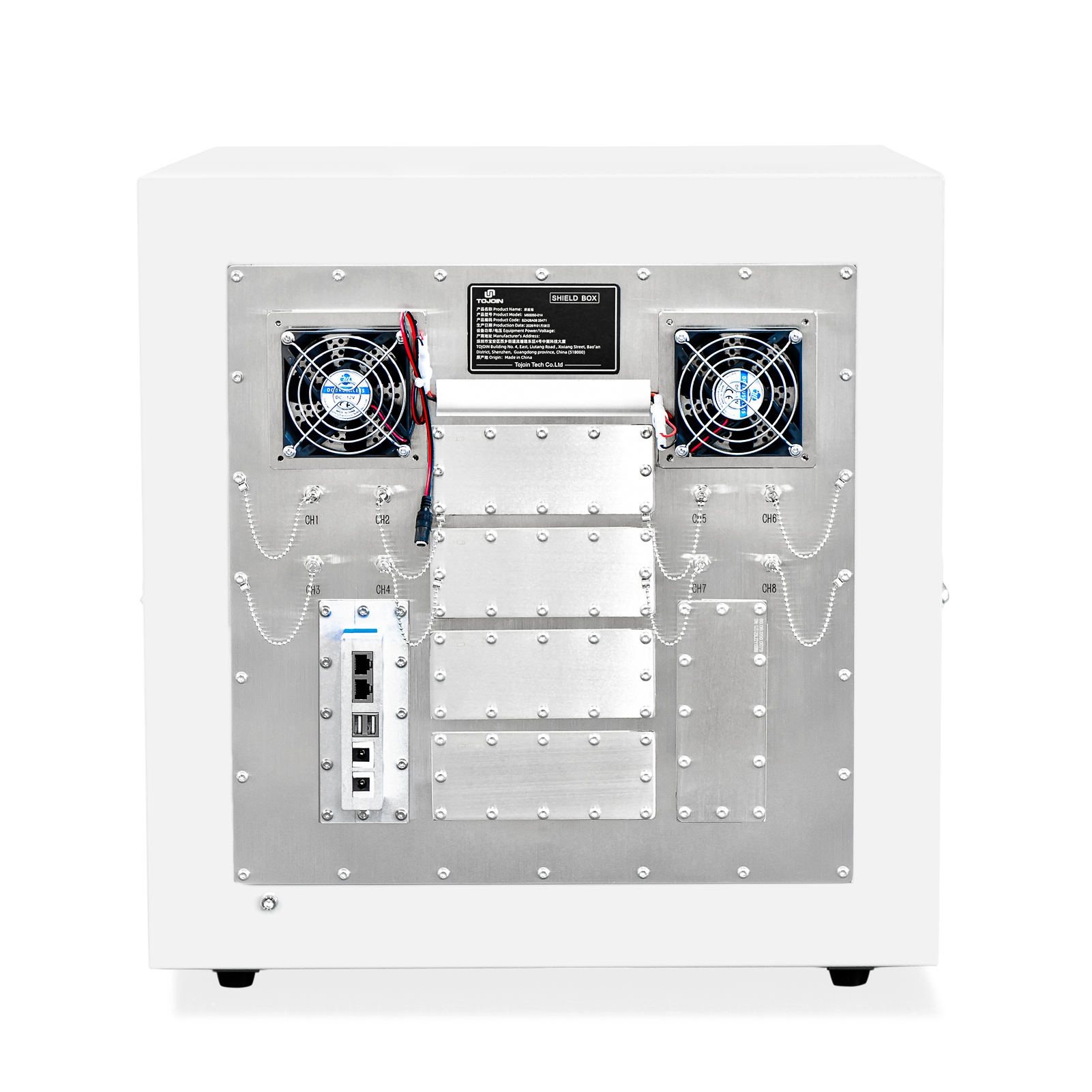

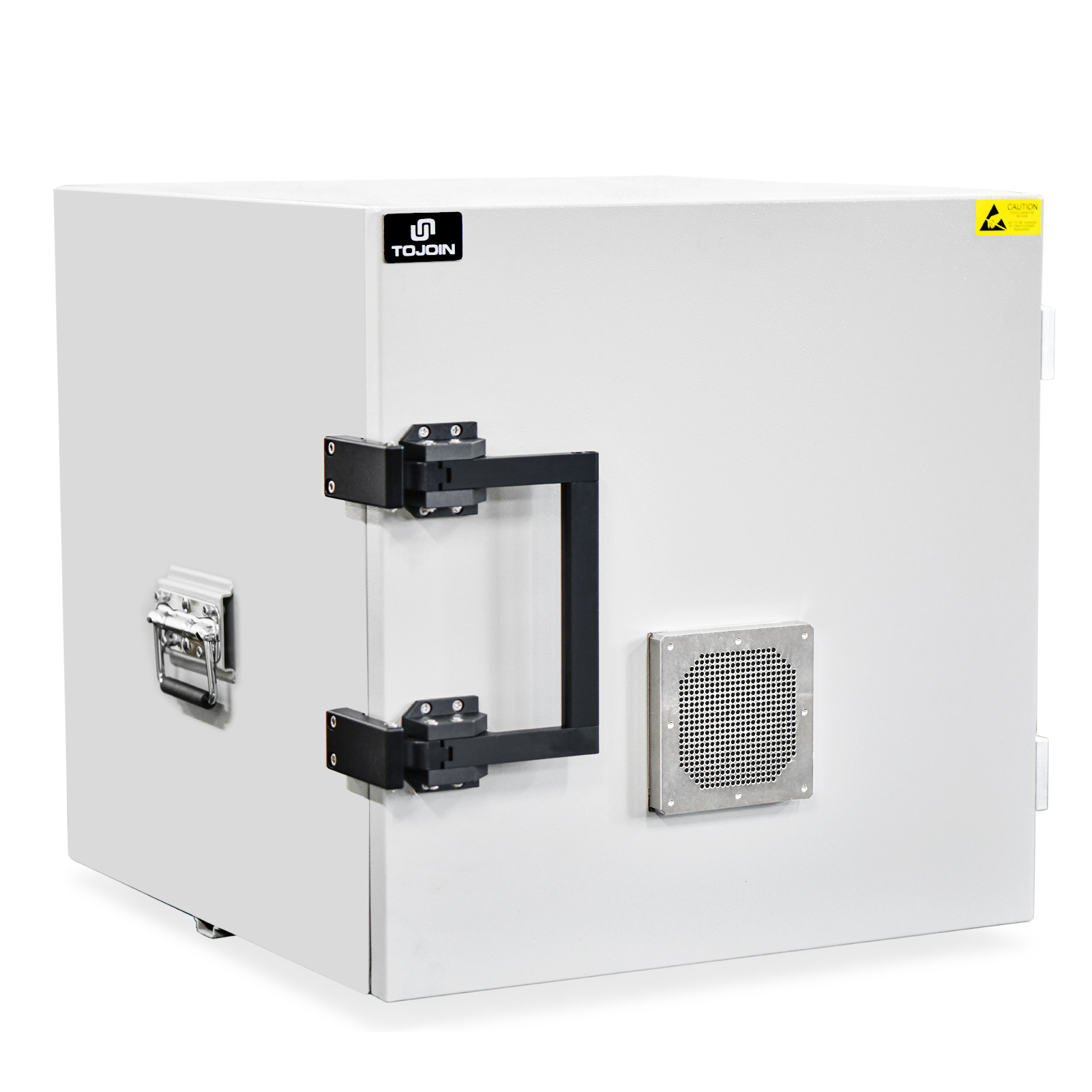

Pictures

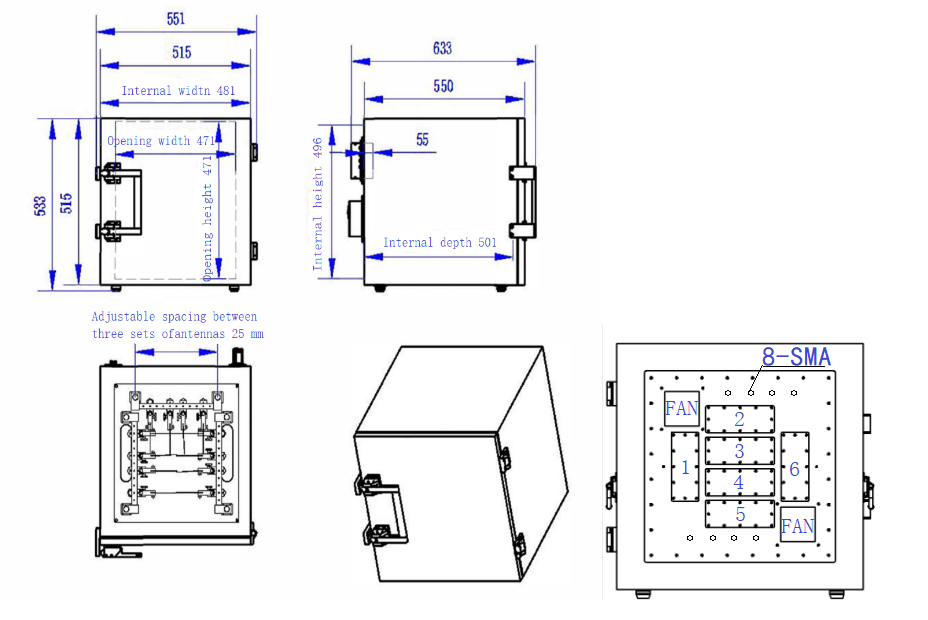

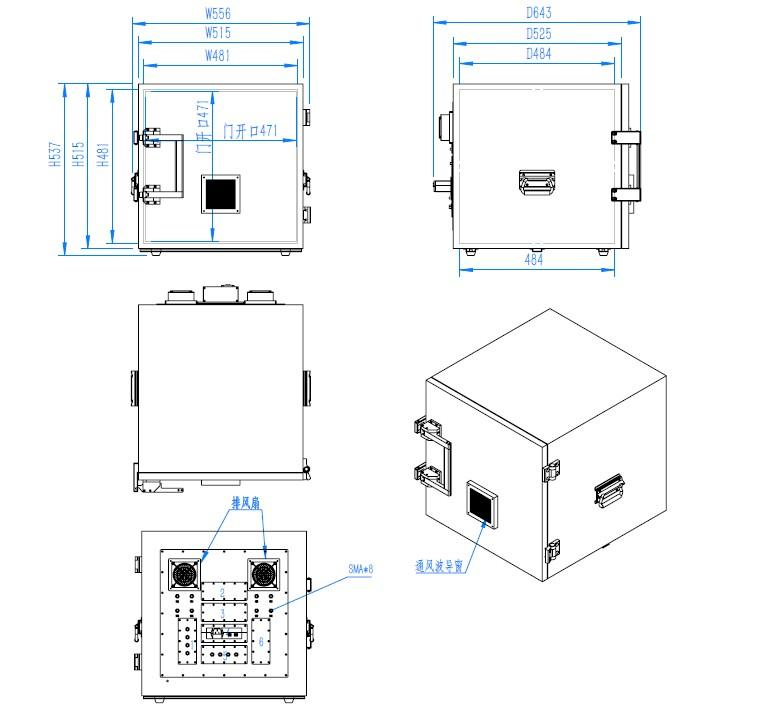

Structure
