40G DC-BLOCK DB-40-2.92
40G DC-BLOCK DB-40-2.92
detailed information
Product Model : DB-40-2.92
Product Name : DC-Block
Product Number: 60.06.090.0027

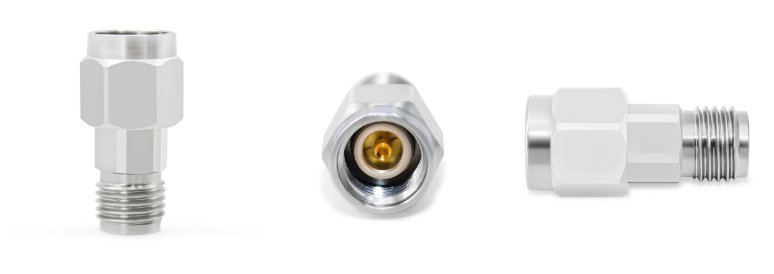

Product Appearance
Technical Specifications
| Working frequency | 10MHZ-40GHZ |
| Insertion loss(dB) | ≤0.5 |
| Standing wave ratio(VSWR ) | ≤1.30 |
| DC Voltage (V ) | 63 |
| Operating temperature(°C ) | -55℃~+125℃ |
| Weight | 3g |
| Insulators | PEI |
| Enclosure | Stainless Steel Passivation |
| Pin | Male:Gold-plated brass 50 micro-inches Female: Beryilium BronzeGold 50 micro-inches |

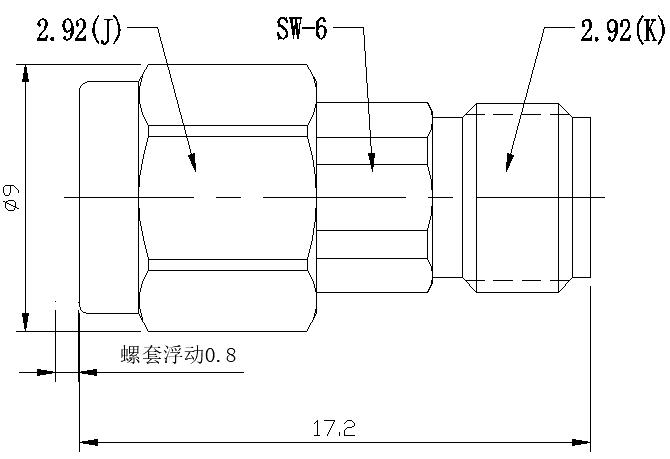

Appearance structure
