PCIE Filter
PCIE Filter
detailed information
Product Model:PCIE/miniPCIE
PN:60.06.050.0074
Technical Parameter
| Parameter | (Min.) | (Typ.) | (Max.) |
| Type | - | LPF | - |
| Frequency Range(MHz) | DC | - | 480 |
| Insertion Loss(dB) | - | - | 3 |
| Out Band Rejection(dB) | 75 | 80 | - |
| Operating Temperature（°C） | -30 | Room-temperature | +70 |

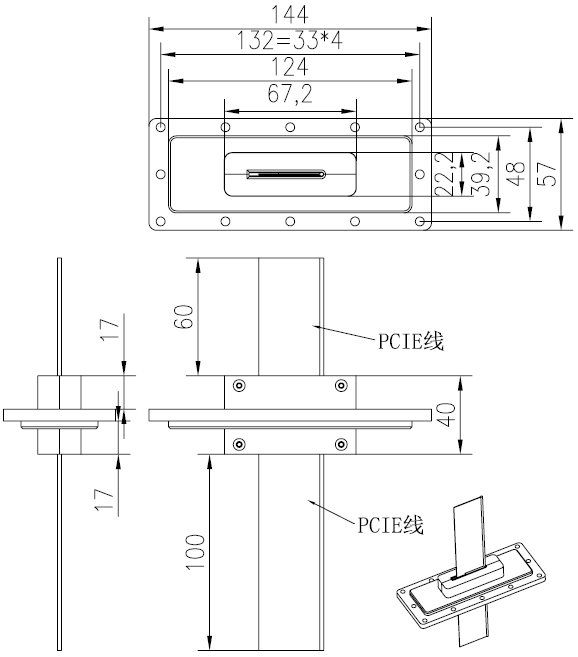

| Dimension(mm) | - | 144*22*57 | - |
| Weight(g) | - | 500 | - |
