RJ45 Fliters
RJ45 Fliters
detailed information
Product Model:79PS-RJ45*5
PN: 60.06.050.0268
Technical Parameter
| Parameter | (Min.) | (Typ.) | (Max.) |
| Type | - | LFP | - |
| Frequency Range(MHz) | DC | - | 480 |
| Insertion Loss(dB) | - | - | 3 |
| Out Band Rejection(dB) | 75 | 80 | - |
| Operating Temperature（°C） | -30 | Room-temperature | +70 |
| Dimension(mm) | - | 144*79*57 | - |
| Weight(g) | - | 650 | - |
| Interface Type | RJ45 | ||
| RJ45 | 10M、100M、1G | ||

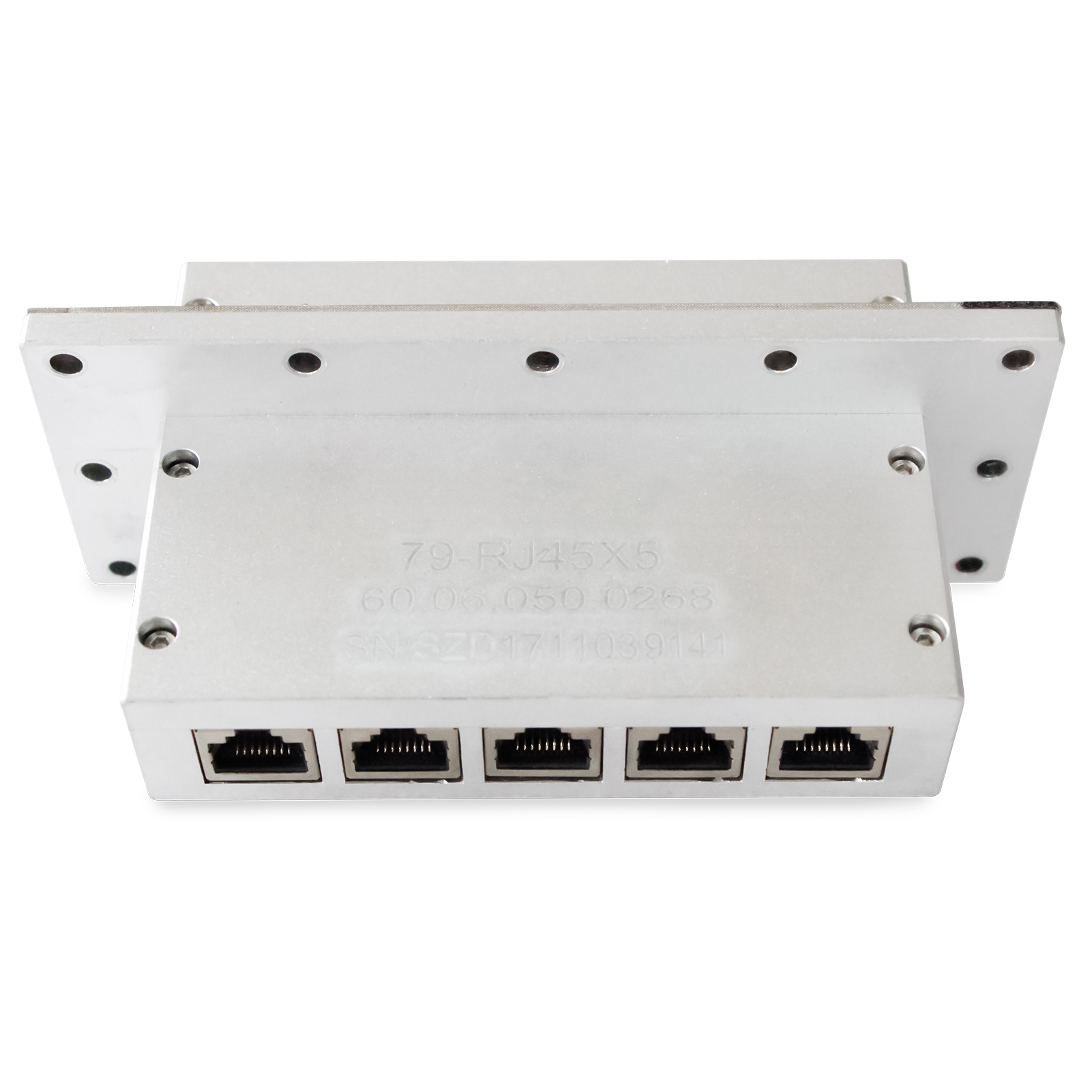

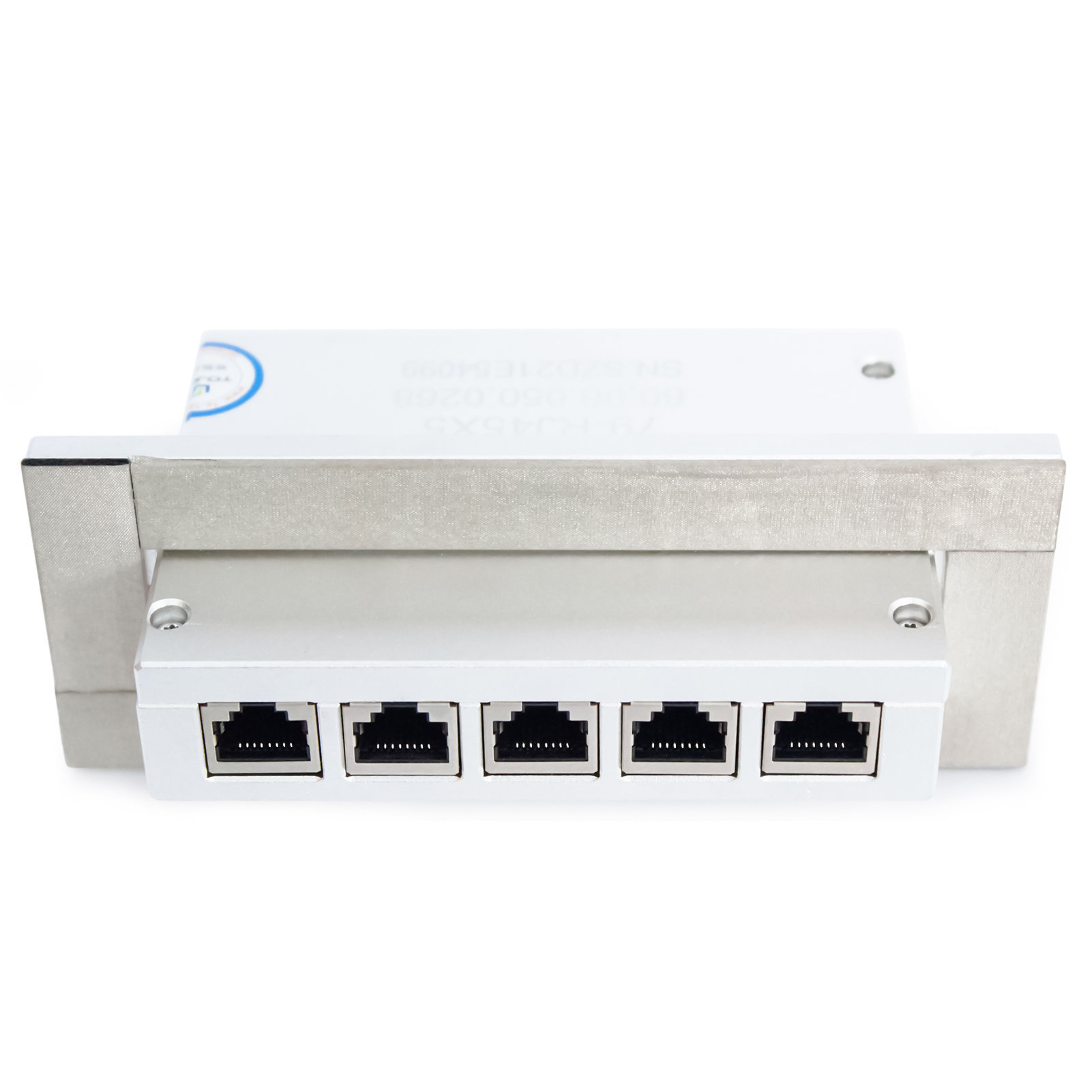

Product Appearance

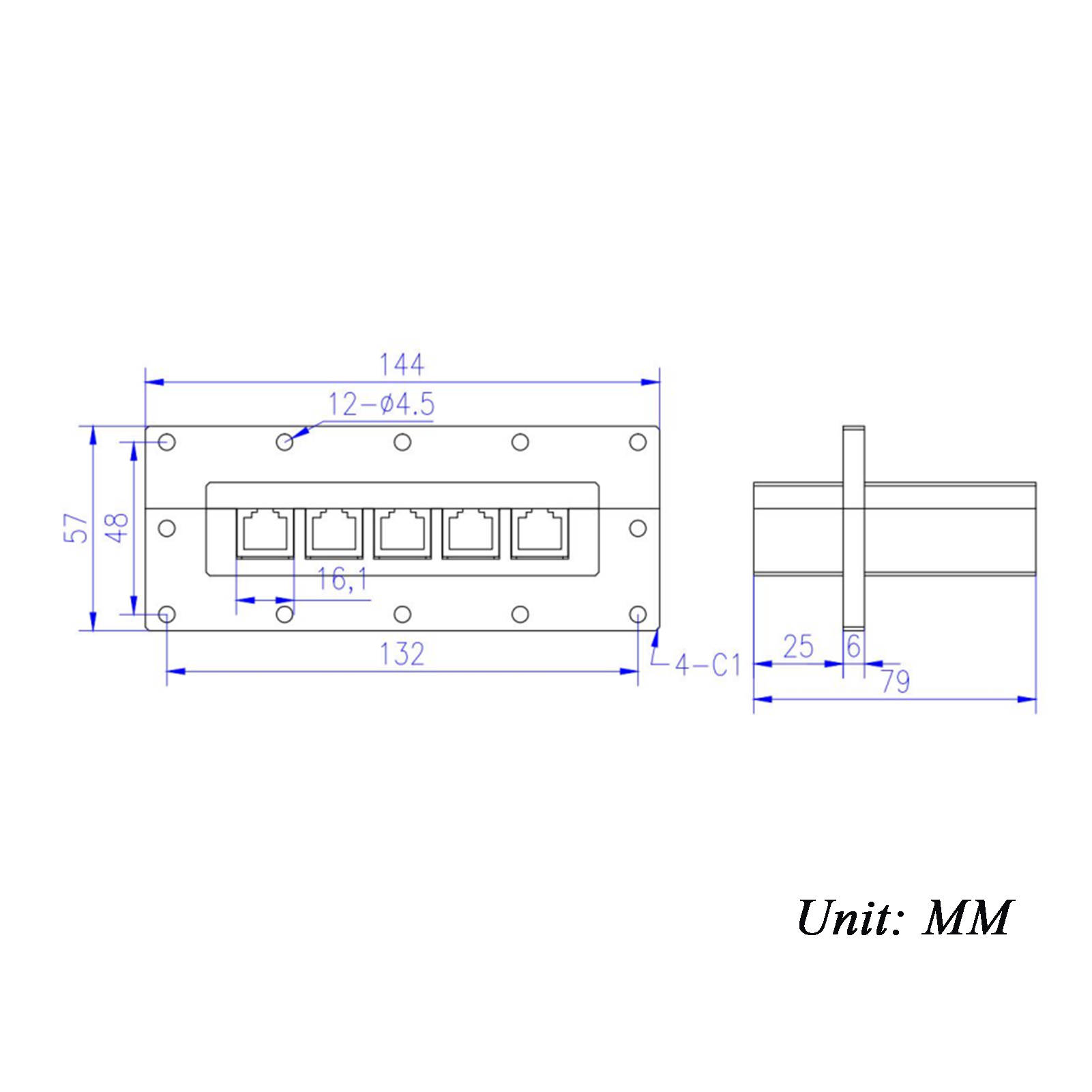

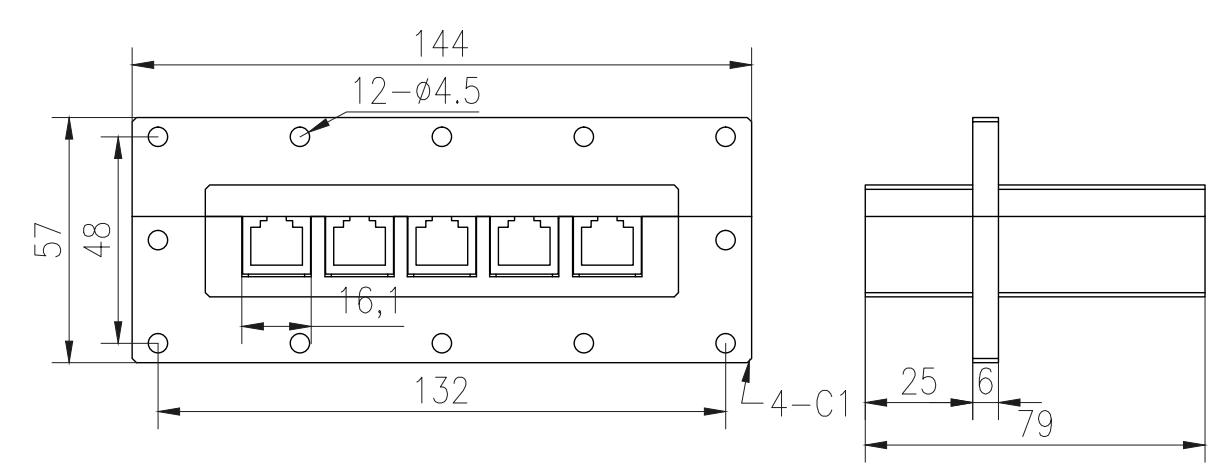

Appearance Structure
