DB9 Filters
DB9 Filters
detailed information
Product Model:DB9+USBx2+RJ45+DC
PN: 60.06.050.0239
Technical Parameter
| Parameter | (Min.) | (Typ.) | (Max.) |
| Type | - | LPF | - |
| Frequency Range(MHz) | DC | - | 480 |
| Insertion Loss(dB) | - | - | 3 |
| Out Band Rejection(dB) | 75 | 80 | - |
| Operating Temperature（°C) | -30 | Room-temperature | +70 |
| Dimension(mm) | - | 144*79*57 | - |
| Weight(g) | - | 700 | - |
| Interface Type | DB9、USB、RJ45、DC | ||
| DB9 | Support 4800、9600、19200、38400、115200 baud rate(male-female) | ||
| USB | USB10、USB2.0(USB-AF) | ||
| RJ45 | 10M 、100M、1G | ||
| DC | 24V/1.5A max (Outside diameter 5.5mm, Inside diameter 2.1mm) | ||

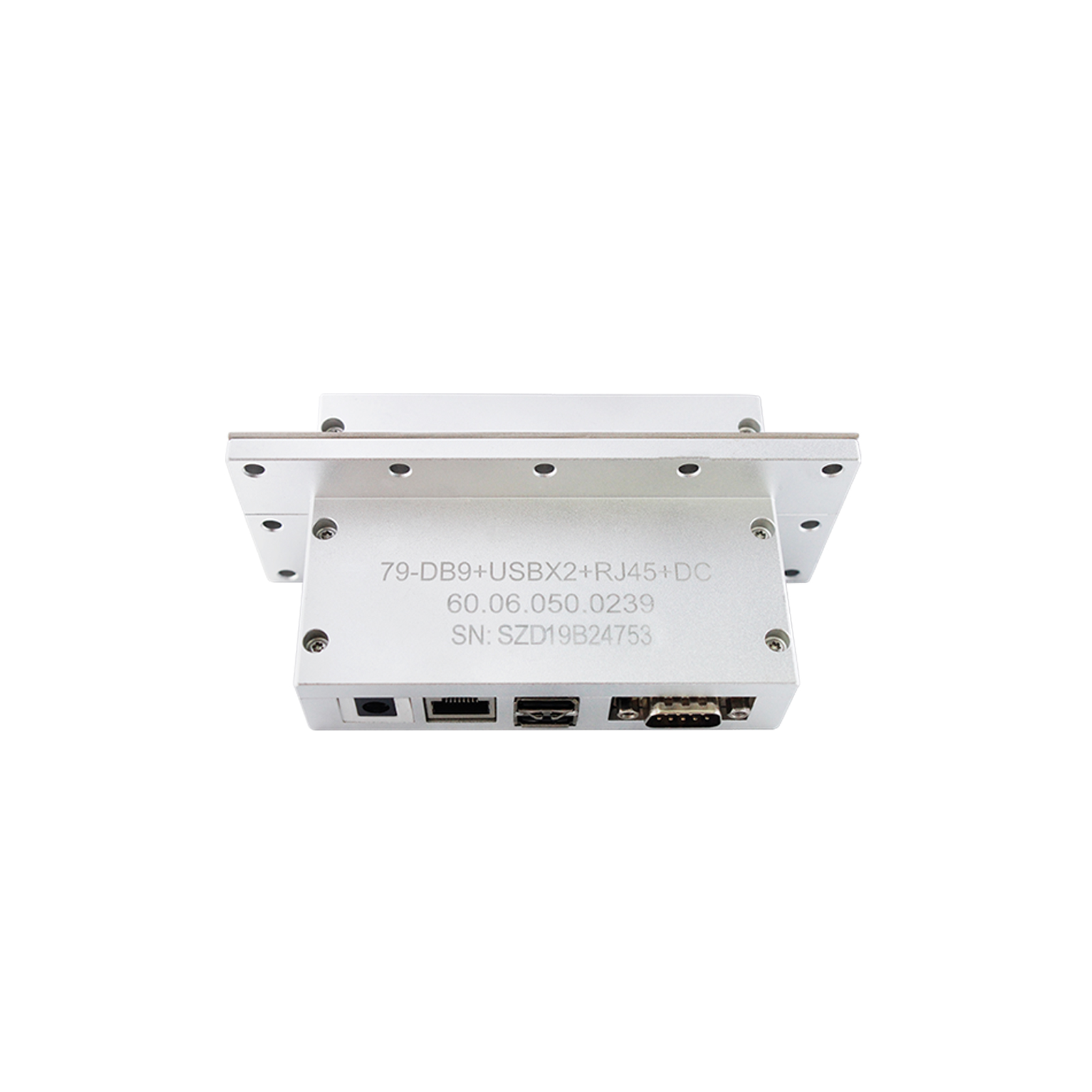

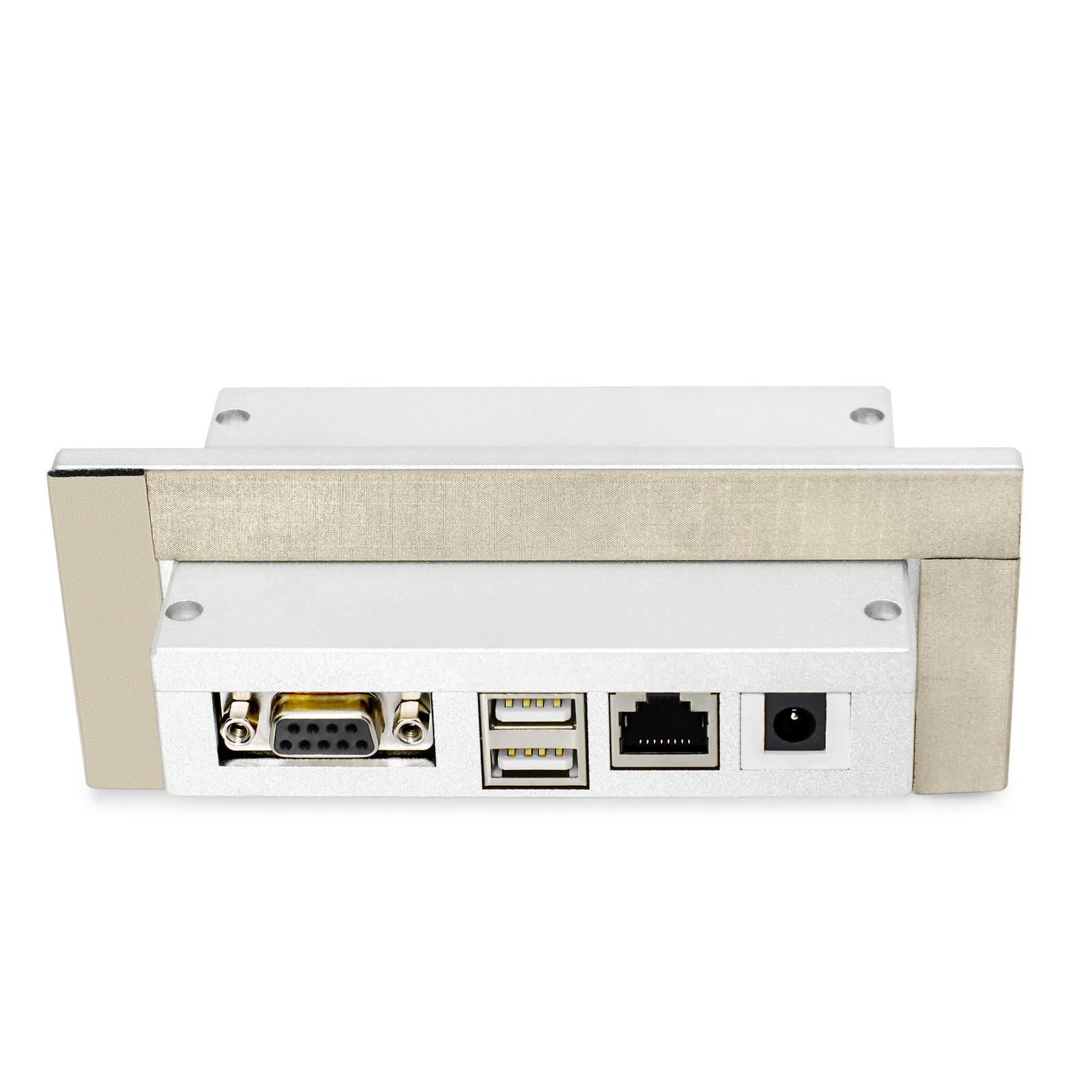

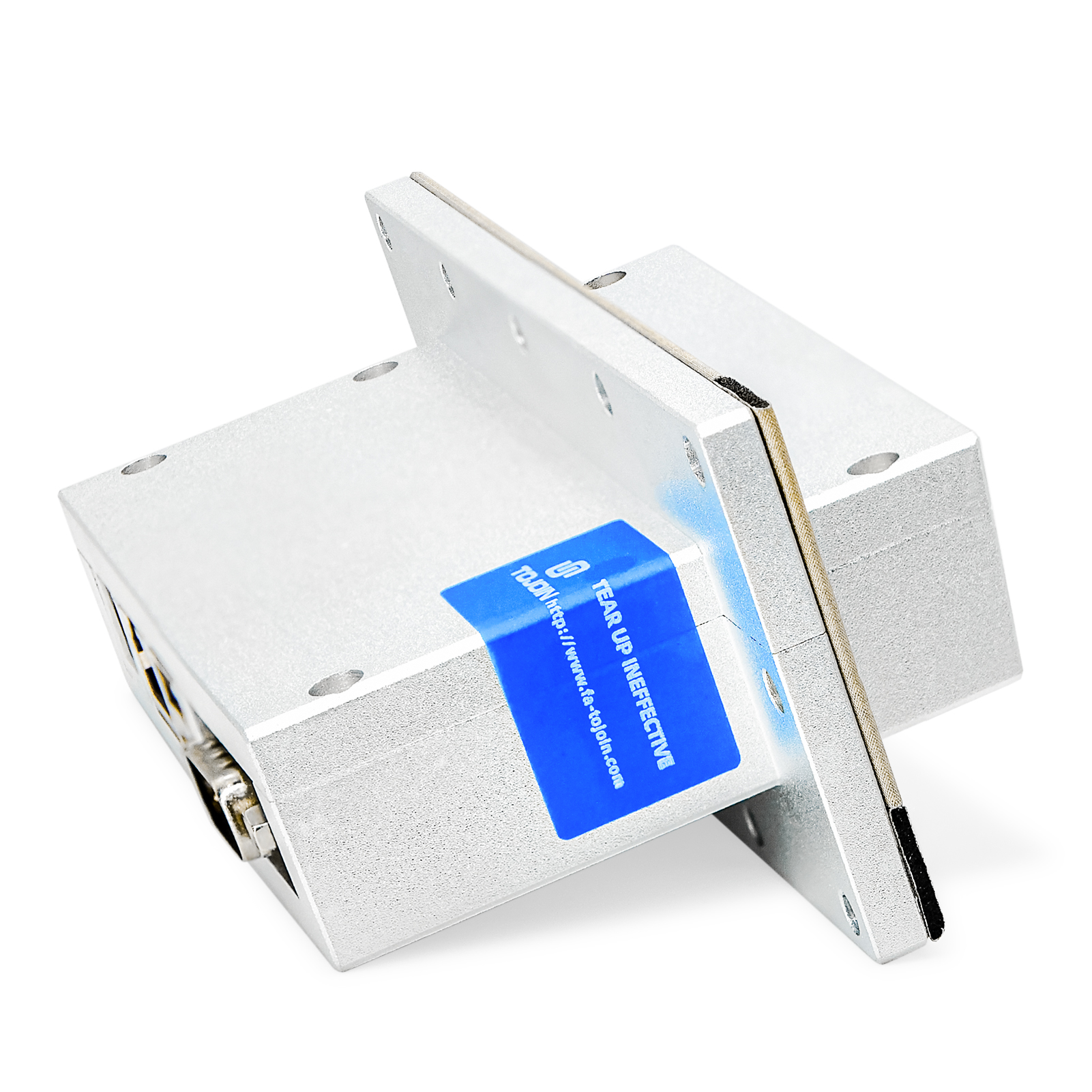

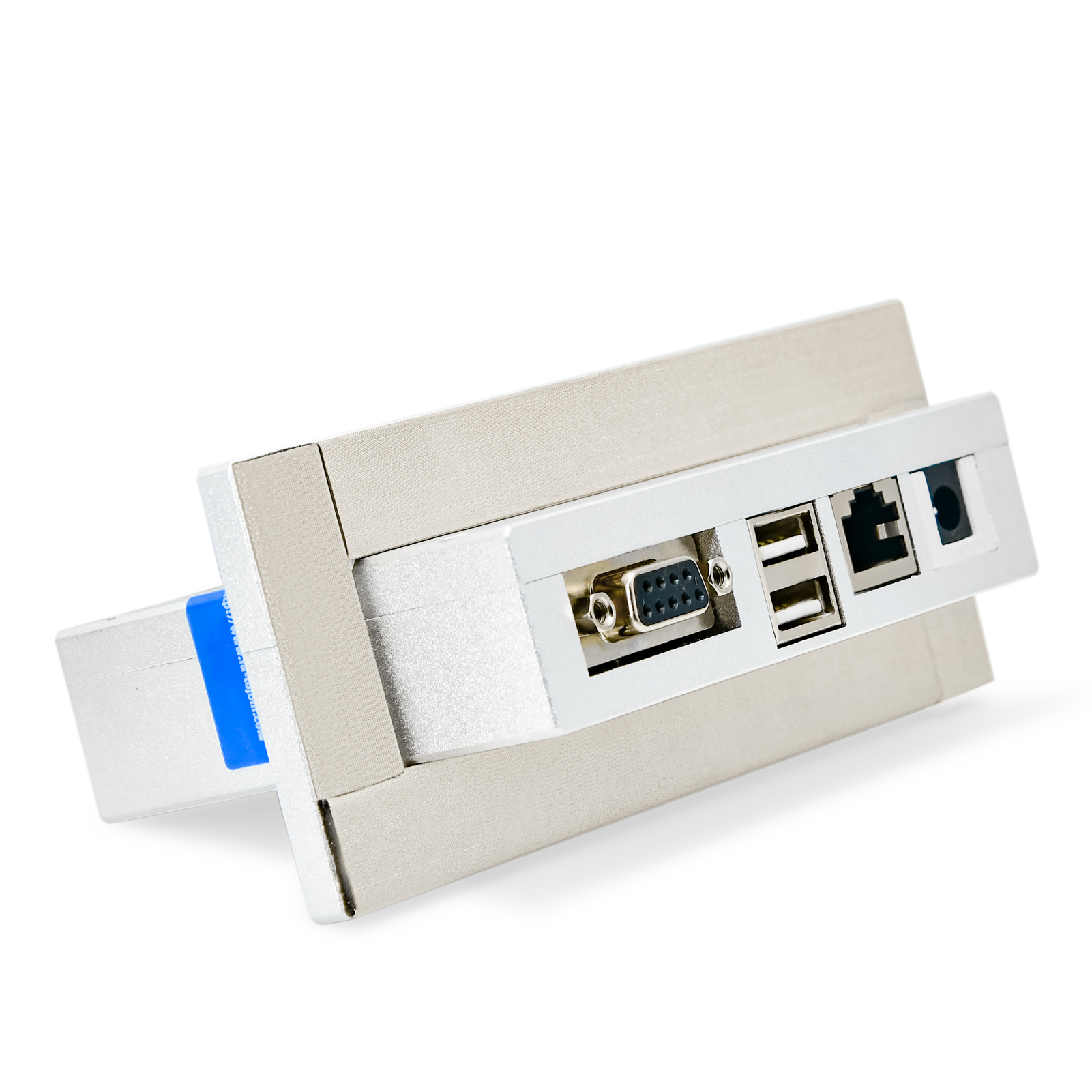

Product Appearance

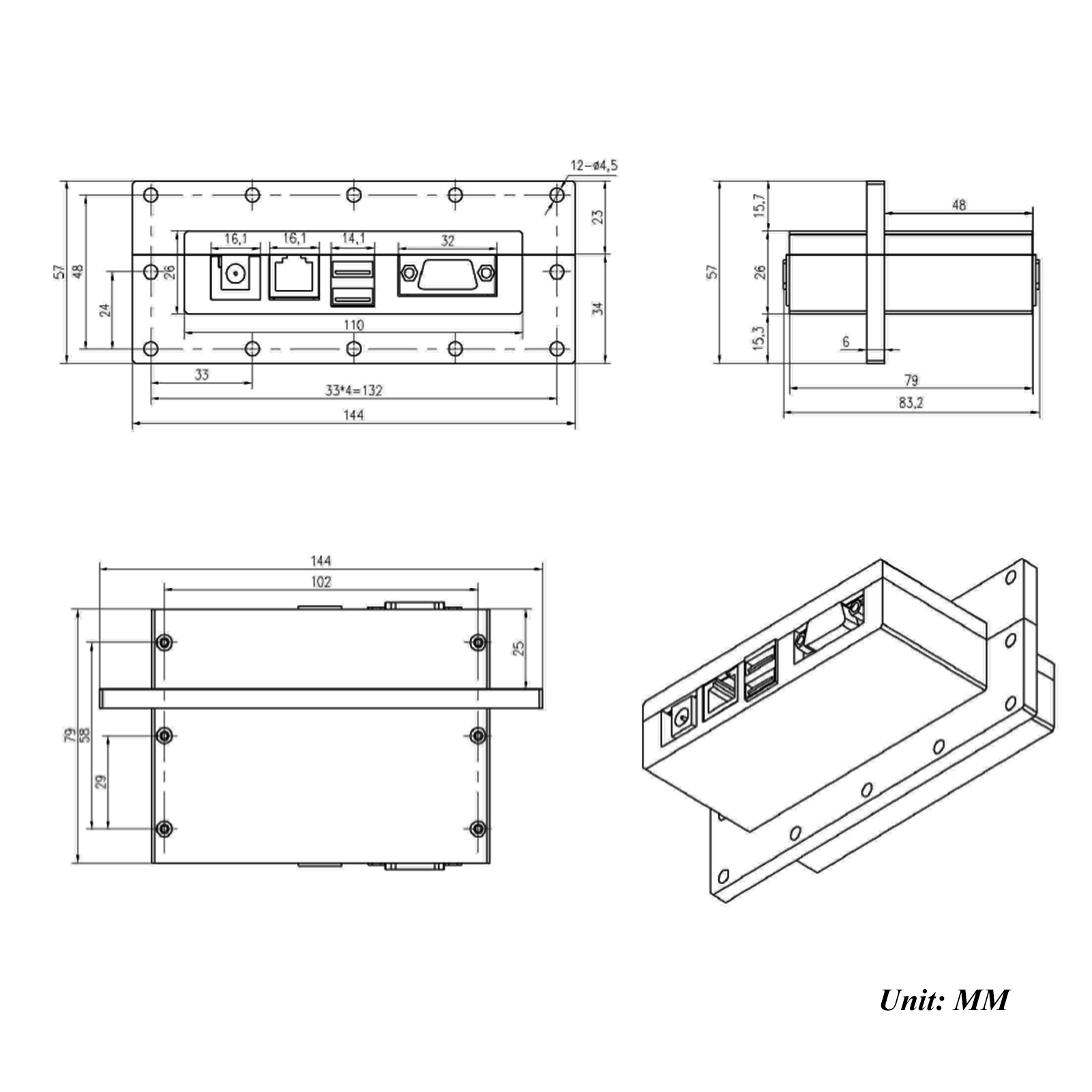

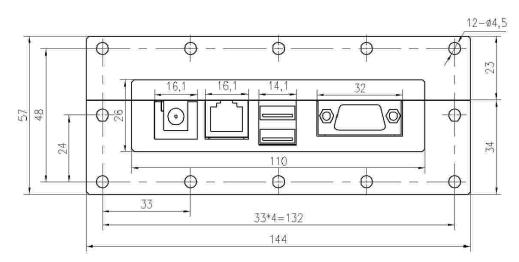

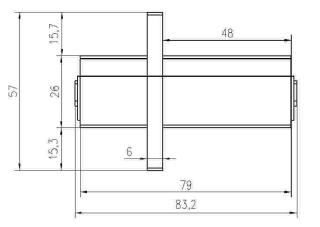

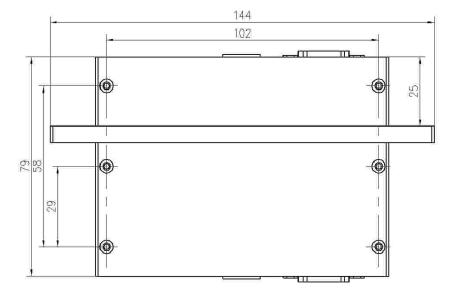

Appearance Structure
