HDMI*2 Filter
HDMI*2 Filter
detailed information
Product Model: 79PS-HDMI*2
PN: 60.06.050.0325

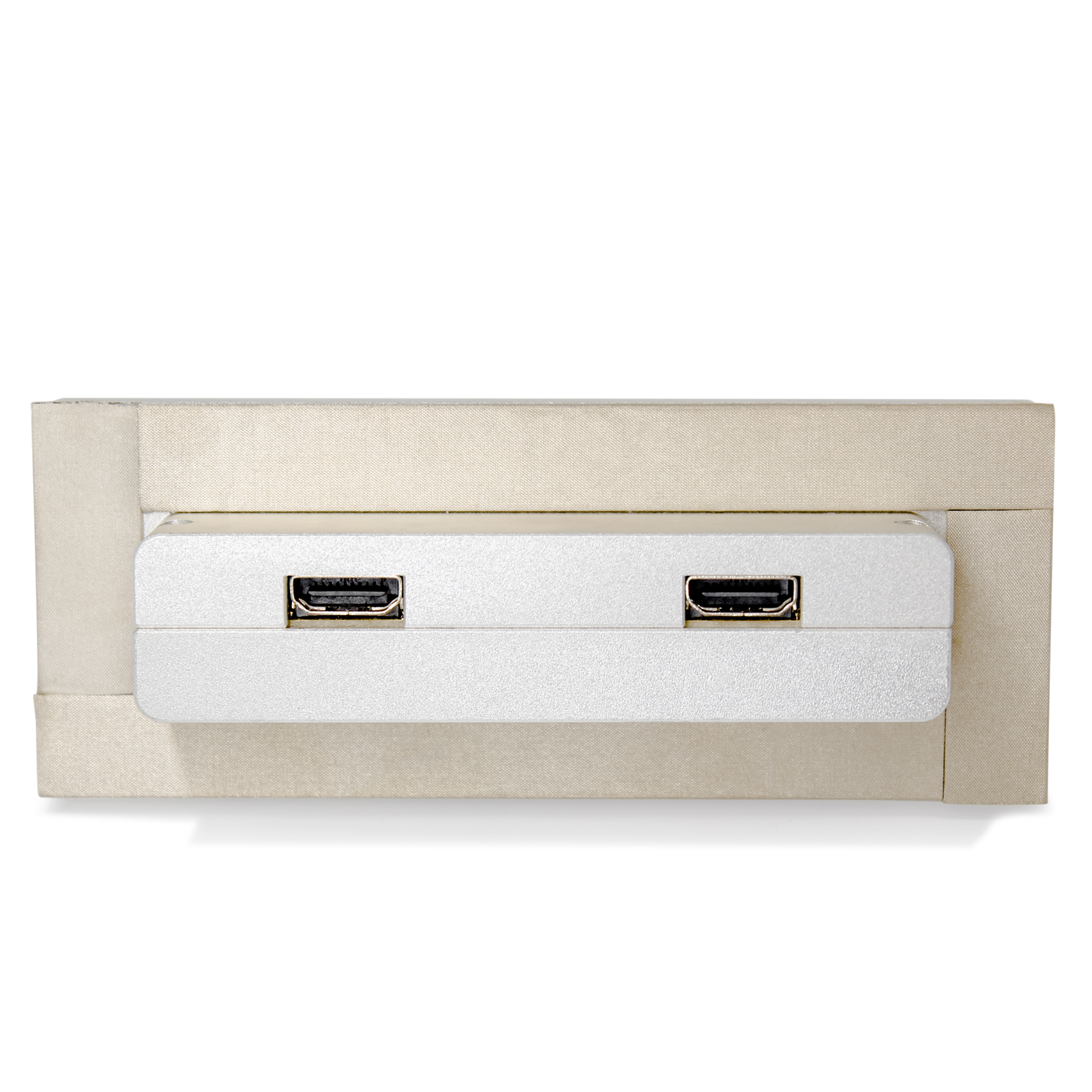

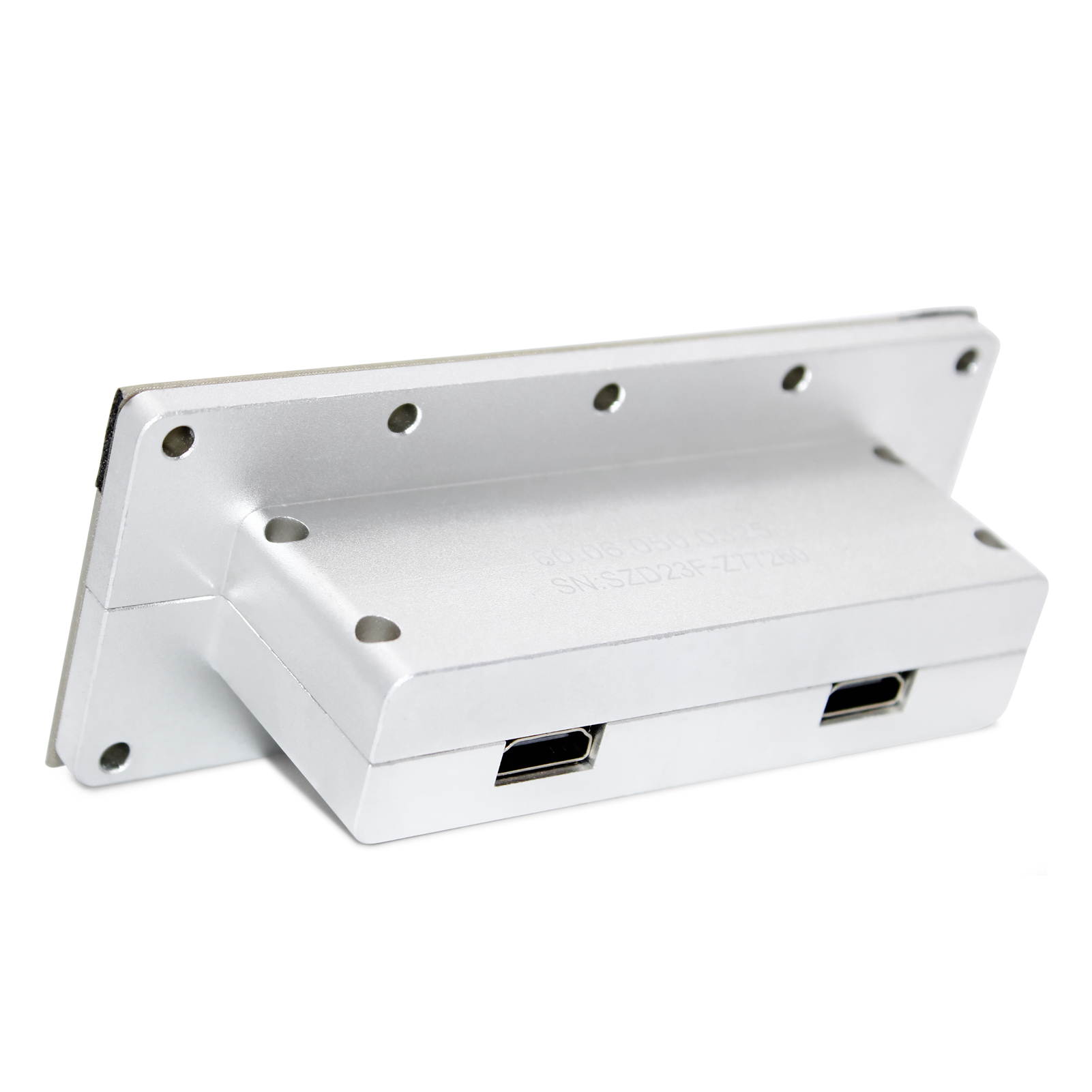

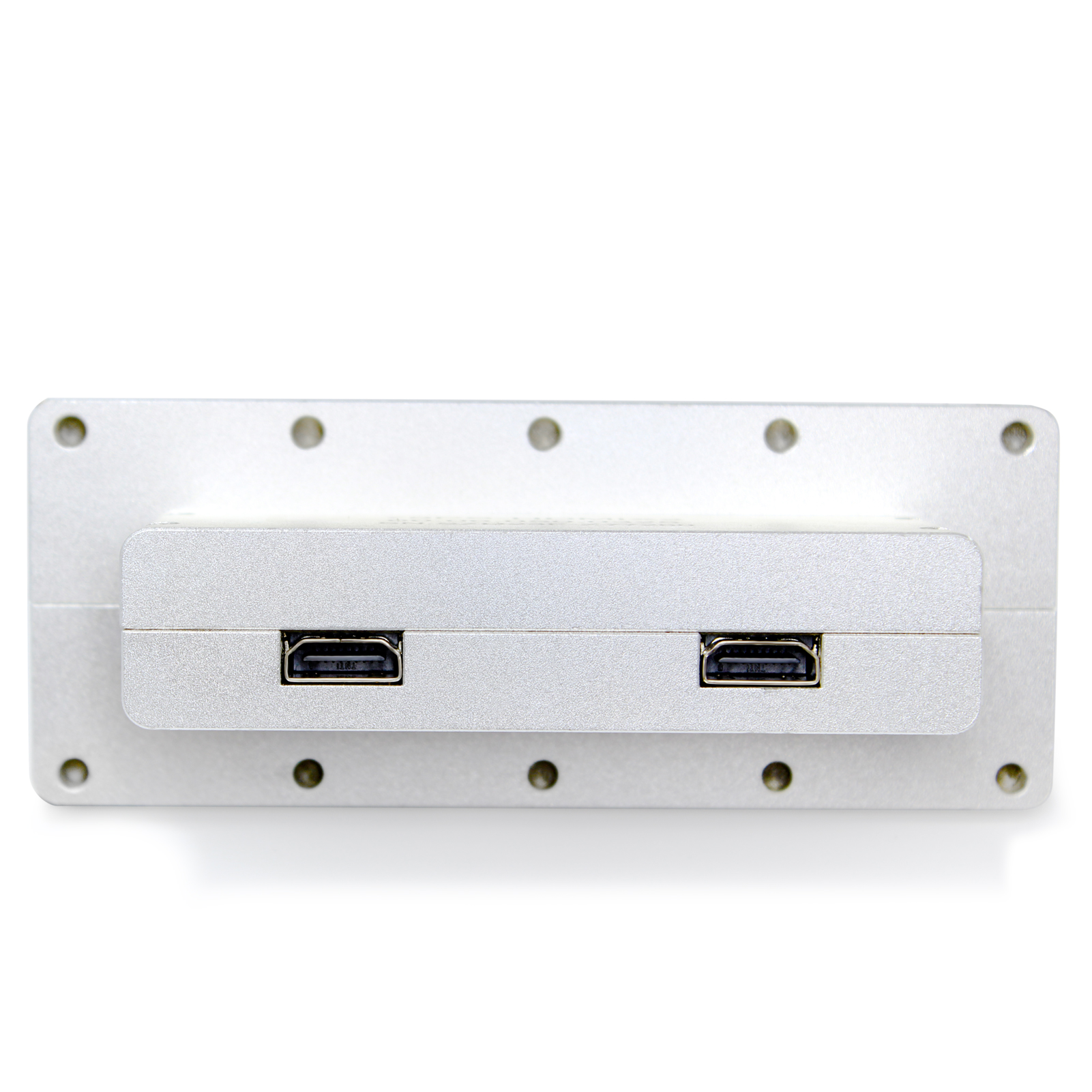

Product Appearance
 |  |  |
Technical Parameter
| Parameter | (Min.) | (Typ.) | (Max.) |
| Type | - | LPF | - |
| Frequency Range(MHz) | 800 | - | 9000 |
| Insertion Loss(dB) | 70 | 75 | - |
| Out Band Rejection(dB) | - | - | 3 |
| Operating Temperature（°C）) | -30 | Normal | +70 |
| Dimension(mm) | - | 144*79*57 | - |
| Weight(g) | - | 560 | - |
| Interface Type | HDMI A type, Support 720p/1080i/1080p/4K | ||

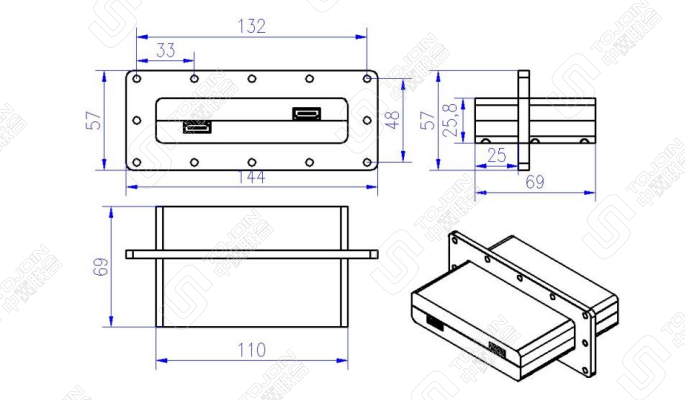

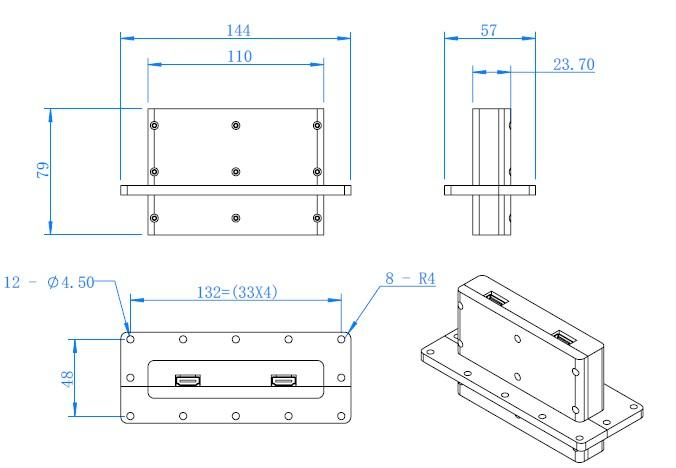

Appearance Structure
