AC Filters
AC Filters
detailed information
AC RF Filter

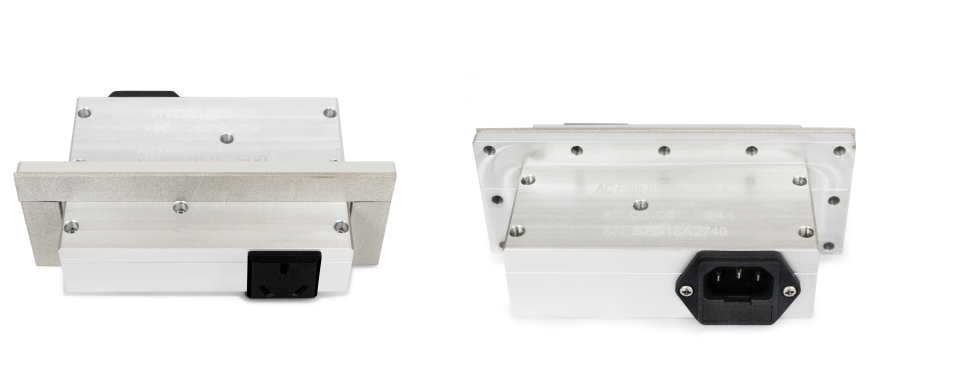

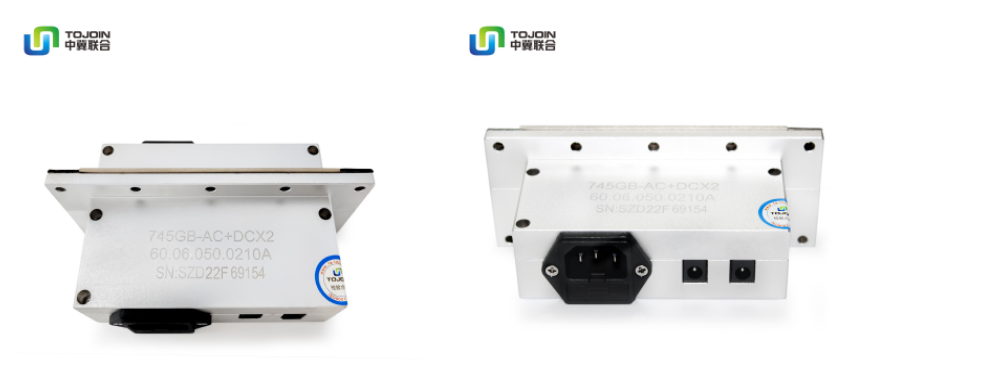

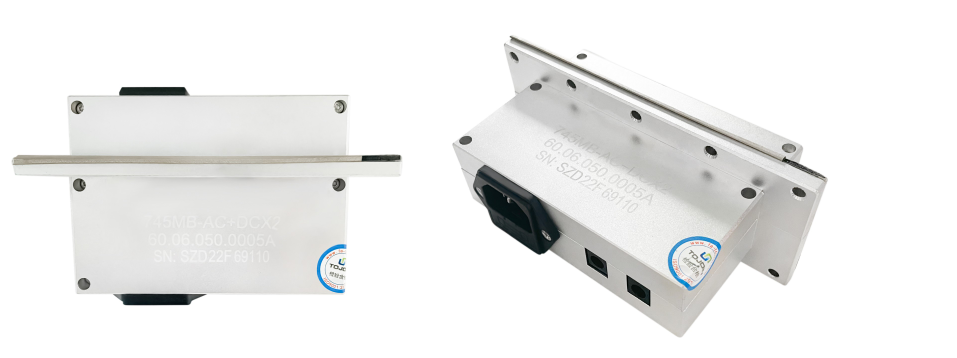

Product Appearance

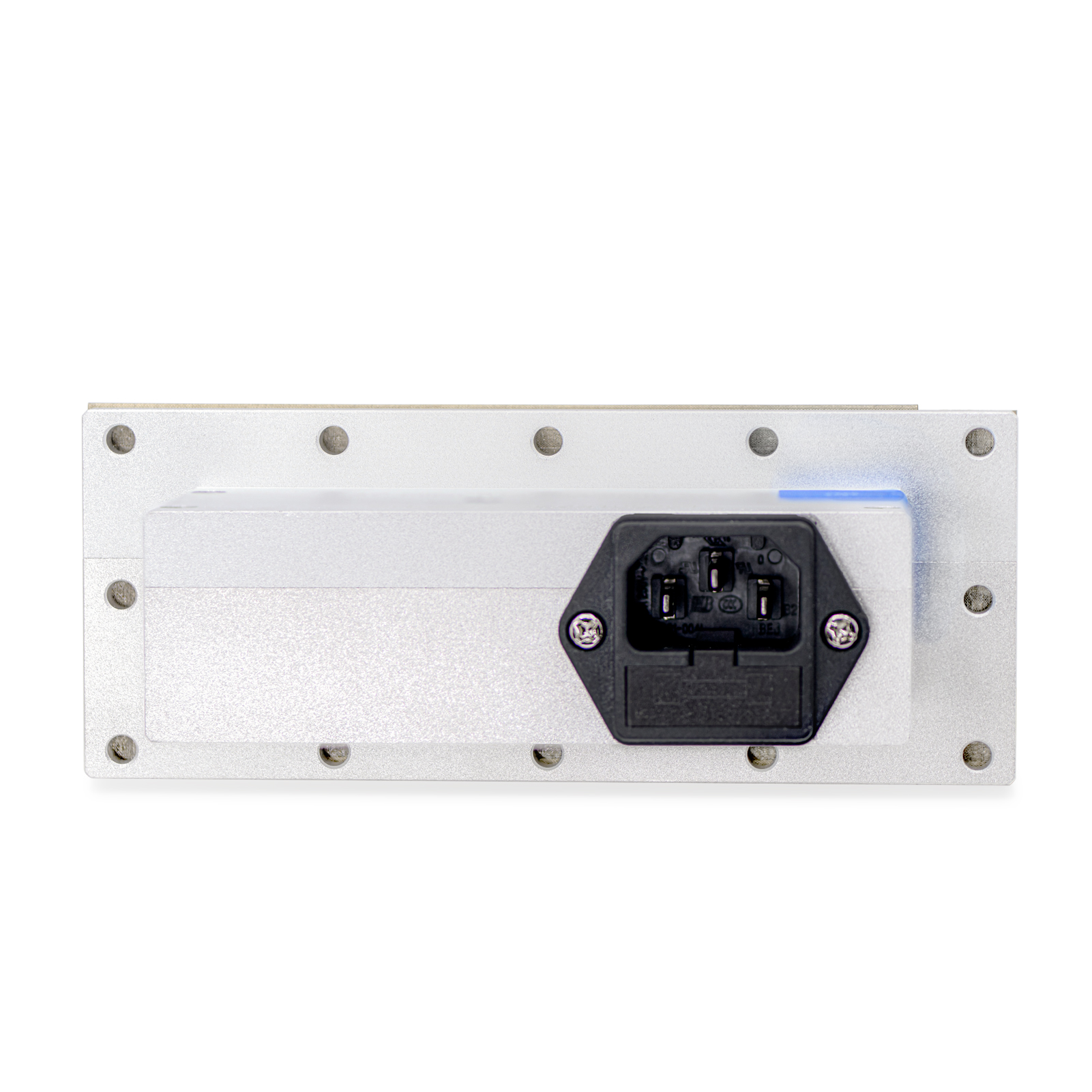

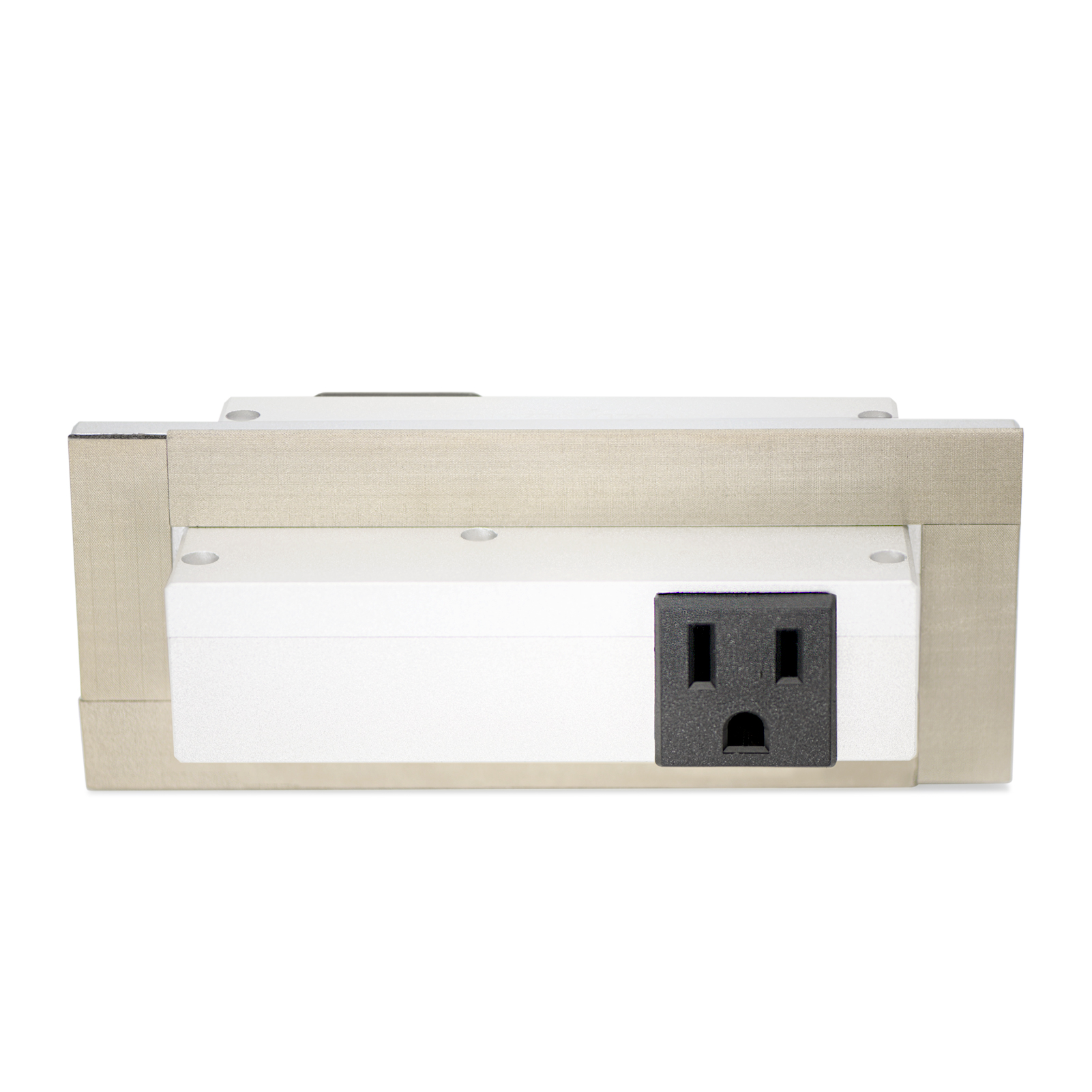

| US Plug 60.06.050.0241A | |
 |  |
| Chinese standard plug 60.06.050.0241 | |
 | |
Applications
Weather Radar and Satellite Communication Systems
Test and Measurement Equipment
Technical Specifications
| Model/Number | Frequency(MHz) | Insertion loss(dB) | Out-of-band suppression(dB) | Voltage(V) | Current(A) | Leakage current(mA) | Dimension(mm) |
AC Filter-01A 60.06.050.0241A US Plug | DC 500-8000 | - | ≥75 | 250max. | 10 | 1.5 | 144*78*57 |
AC Filter-01 60.06.050.0241 Chinese standard plug | DC-100 | -10@10MHz -25@30MHz -50@100MHz -55@300MHz -60@1GHz | ≥75 | 250max. | 10 | 1.5 | 144*115*57 |

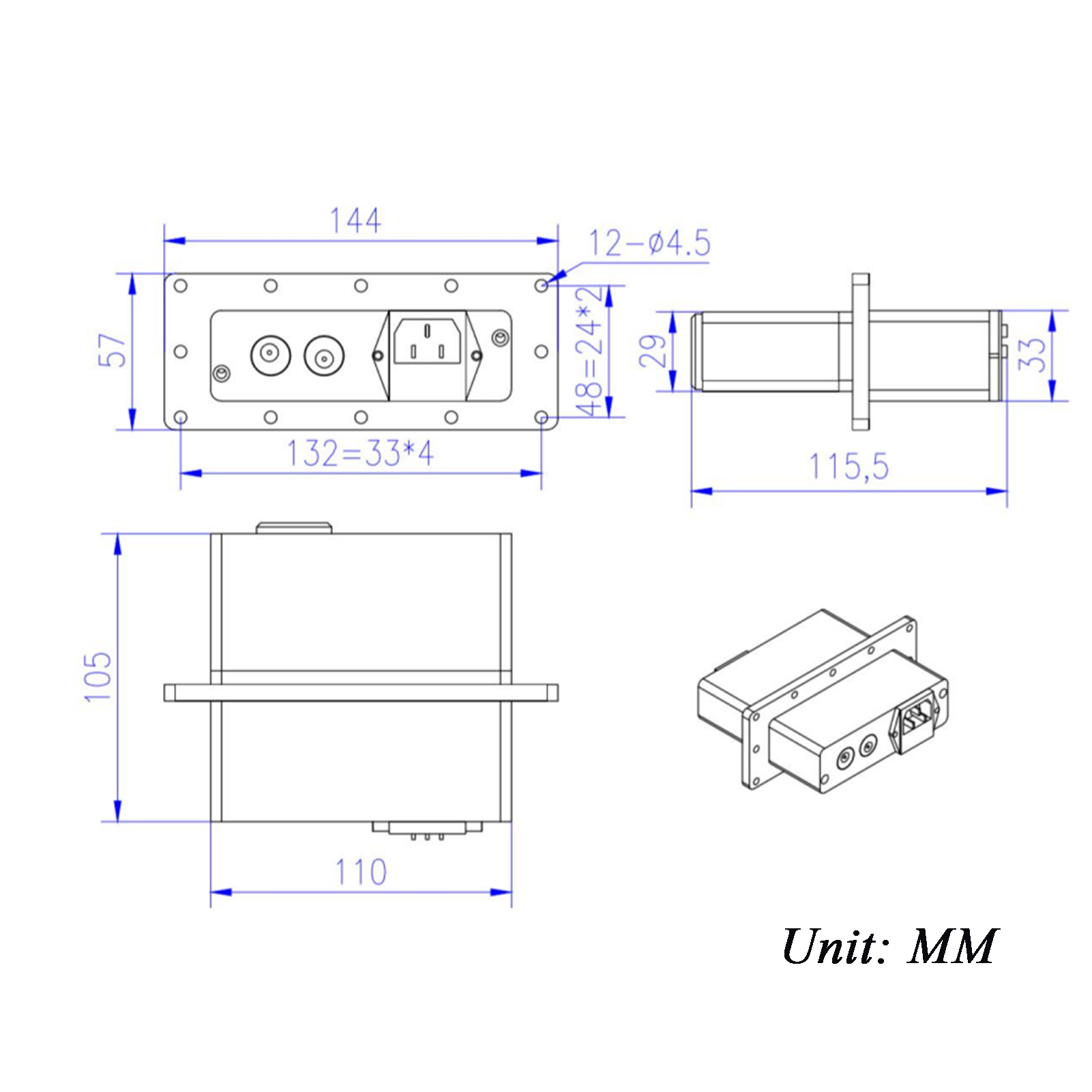

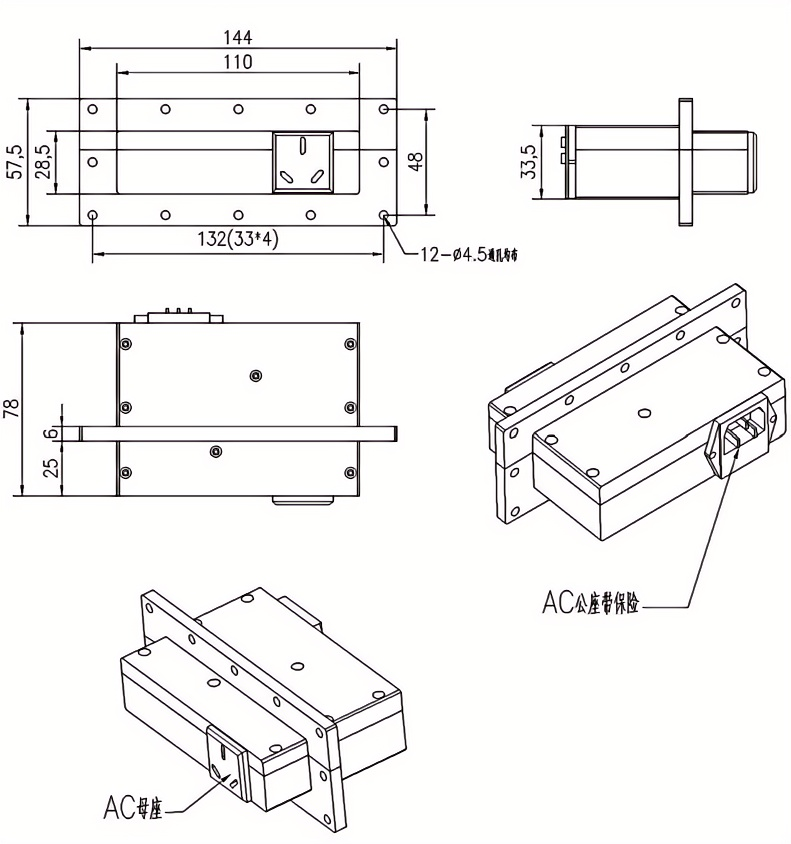

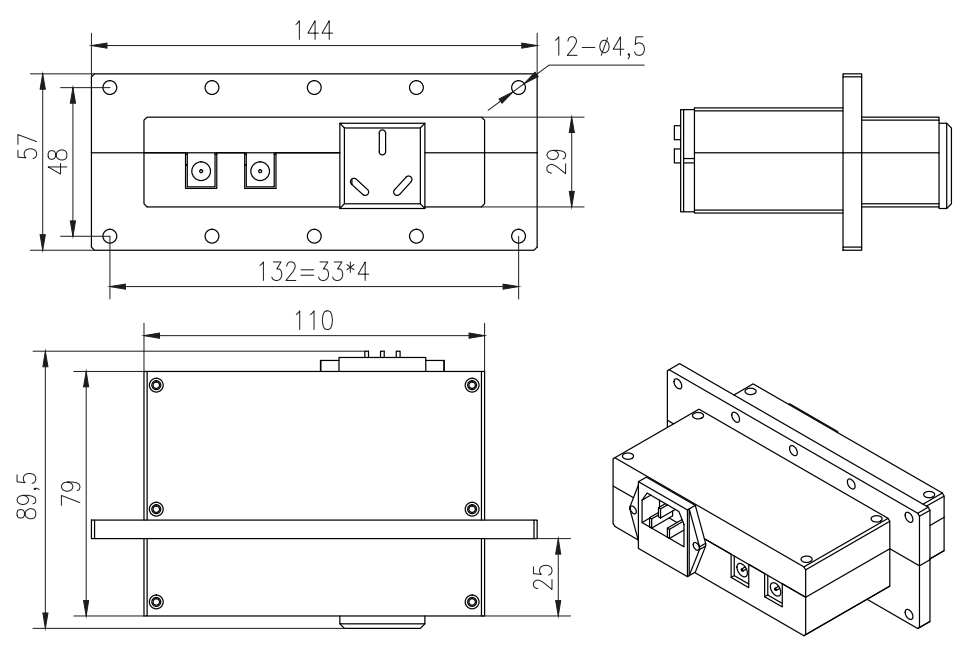

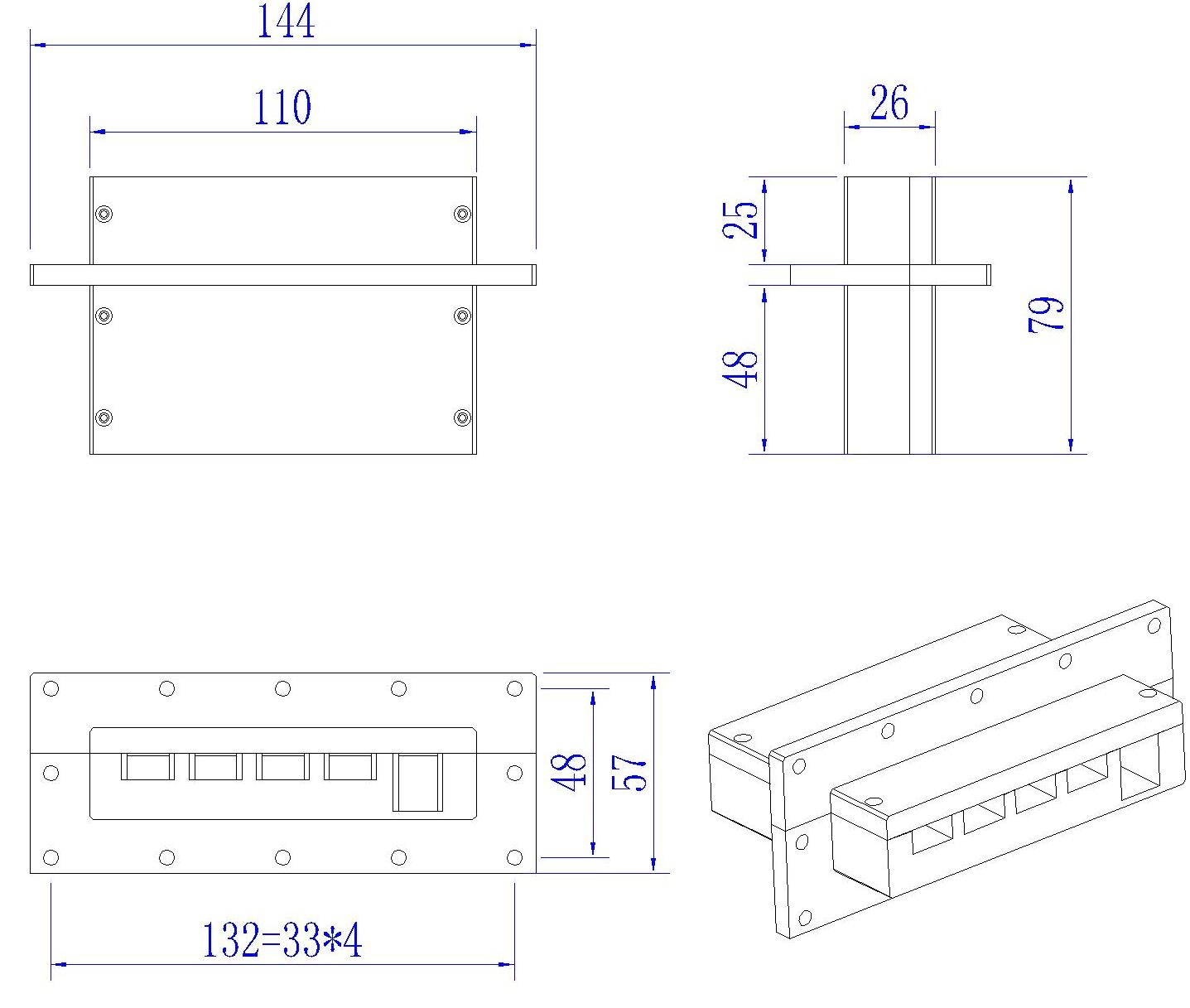

Product Dimensions（mm）
60.06.050.0241A US Plug

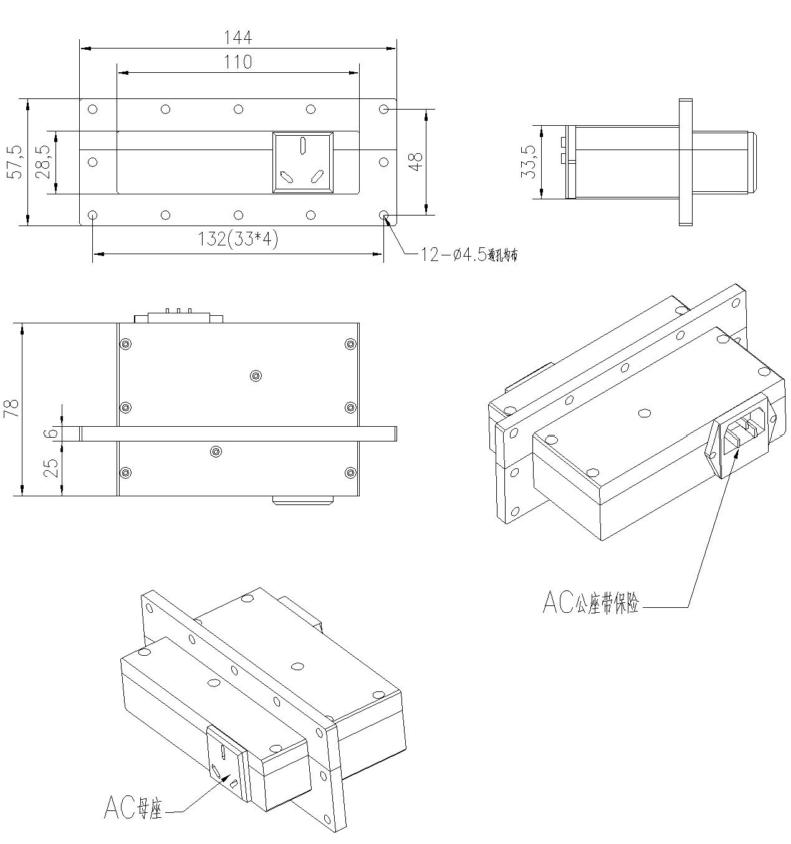

60.06.050.0241 Chinese standard plug
