MS3931-A-01 Shield Box
MS3931-A-01 Shield Box
Product Name Manual shield box
Product Model MS3931-A -01/367(W)*300(D)*136(H)
Product Number 60.00.001.1301
Product Description
MS3931-A-01 is an economical manual shielded box. It is suitable for building module and terminal test solution platforms in smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, and smart homes. The shield box is made of high-quality large-scale plate laser CNC cutting, sheet metal molding, electroplating, electrostatic spraying paint, assembly and commissioning, aging, testing and other more than a dozen strict process, with high shielding effectiveness, reliable structure, stable performance The advantages. Filter selection can be based on the actual needs of the customer, configure the appropriate I / O data interface, RF interface, or finalize the development of non-standard communication interface.

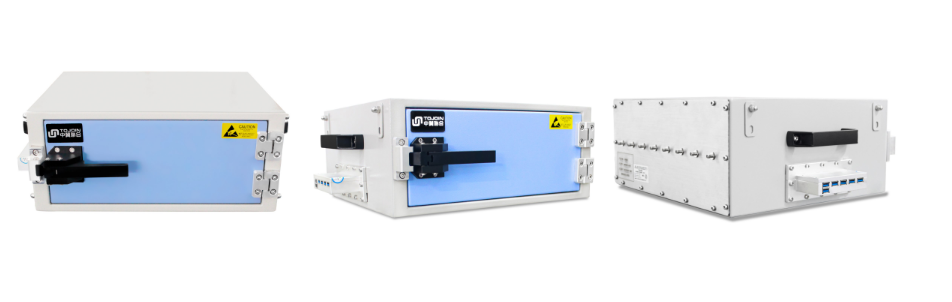

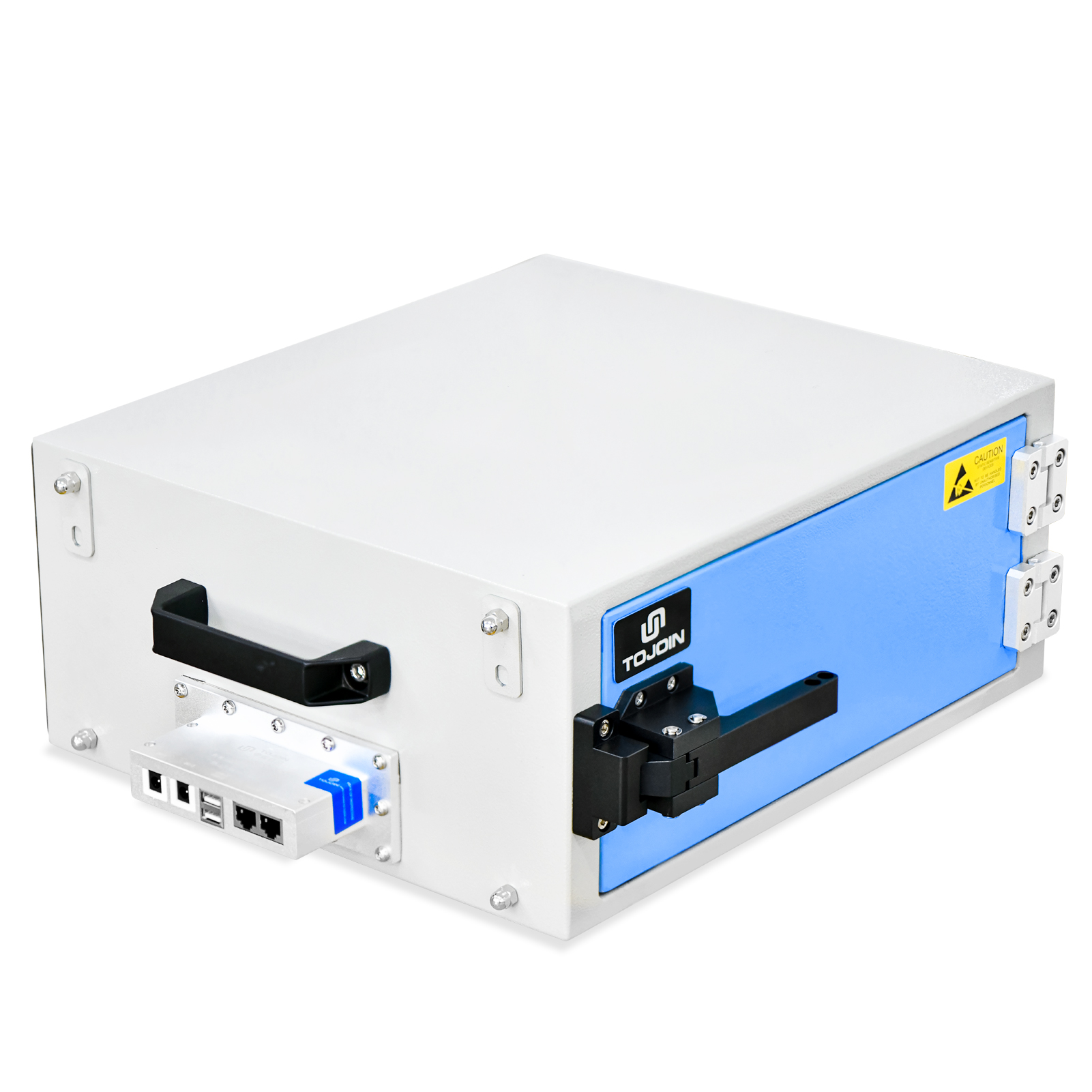

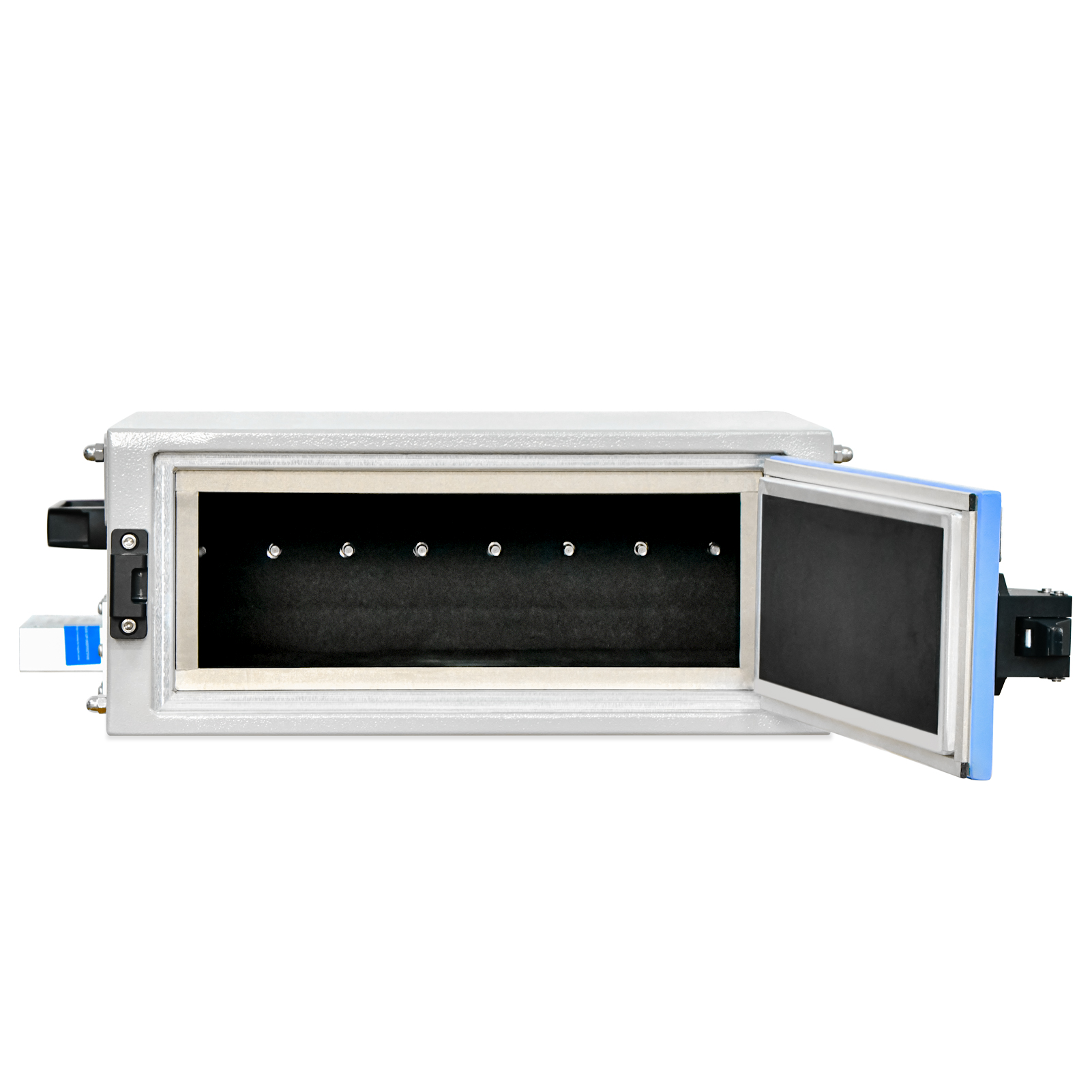

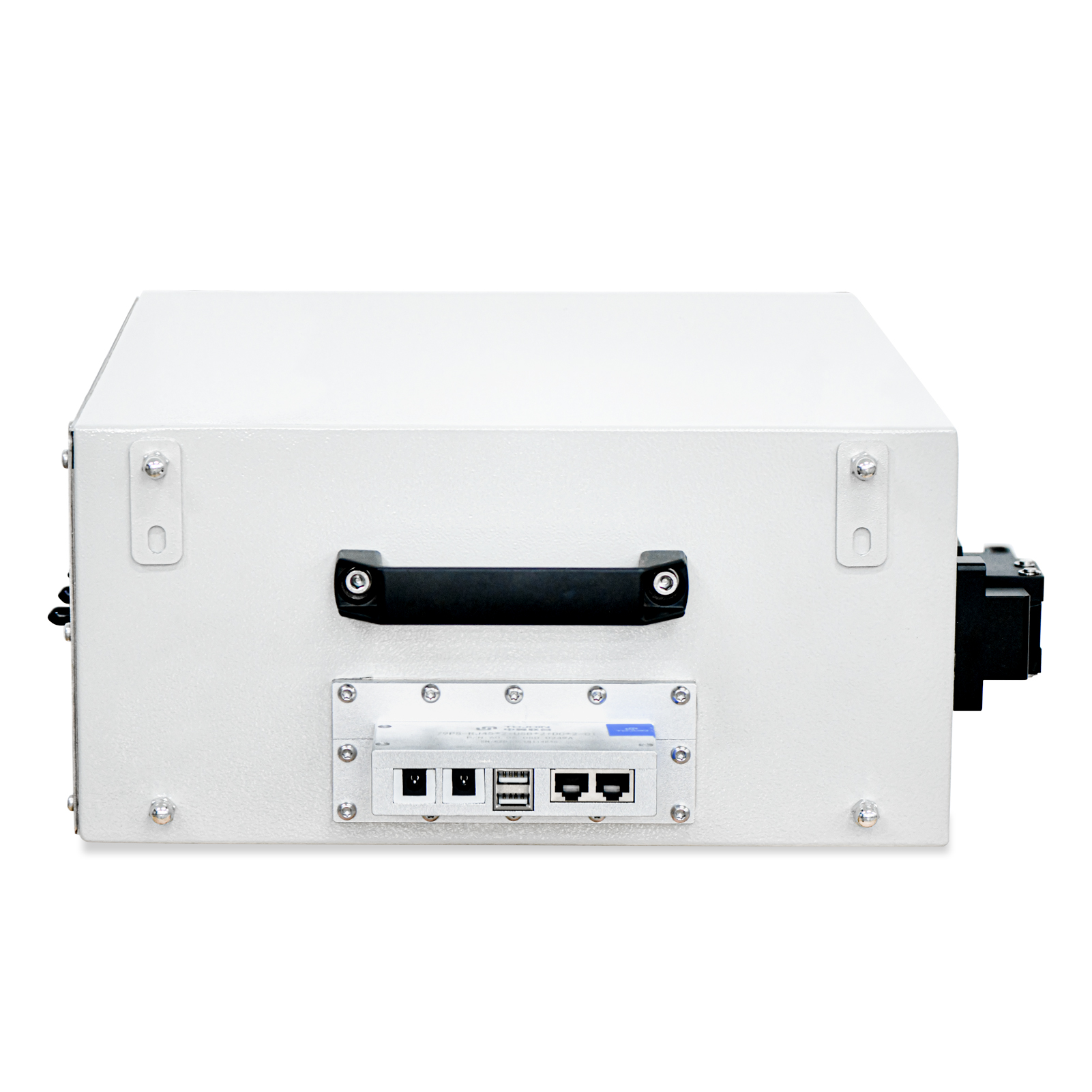

Product Appearance
Product Features
◆ The shielding box is small and light, easy to carry and move. Can be placed on multiple stacks to facilitate batch testing operations.
◆ The working size meets most of the test requirements for smart mobile terminals on the market. The use of a new type of wave-absorbing material minimizes the reflected signal in the box and reduces the chance of false detection due to the environment.
◆ The complete communication interface design allows you to build a test platform that is easier and faster.
Technical Specifications
Working frequency（GHz） | 0.8～6 |
Shielding effect | ≥75dB @2.4GHz/@5.8GHz |
≥68dB @7.5GHz | |
Interface Type | VGA、DB9、DB25、USB2.0、USB3.0、SMA、RJ45、BNC、RCA、DC、AC etc. (Could be customized and optional) |
Numbers of filters | 1 pcs |
Working temperature（°C） | Normal temperature work |
Internal dimensions（mm） | 367(W)*300(D)*136(H) |
Appearance dimension（mm） | 500(W)*400(D)*170(H) |
Weight（kg） | About 10 |
Appearance of color | Blue and Gray (according to customer requirements) |

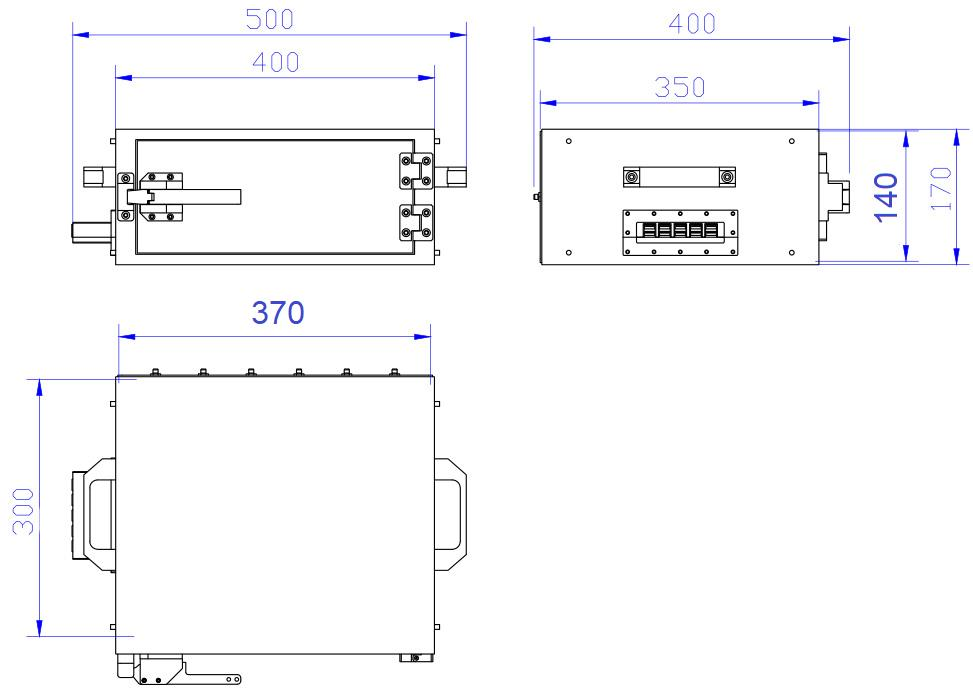

Appearance structure
Note: The filter can be combined and selected according to customer needs.
