MS8088

MS8088


detailed information

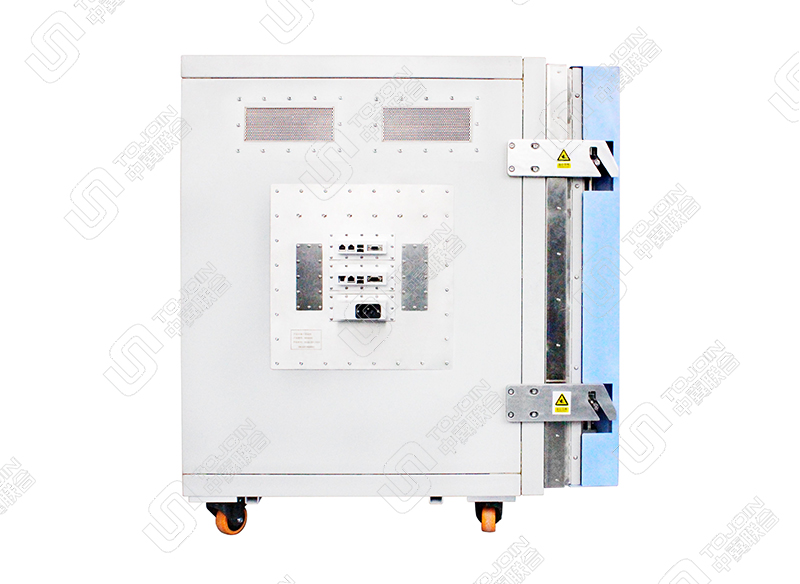

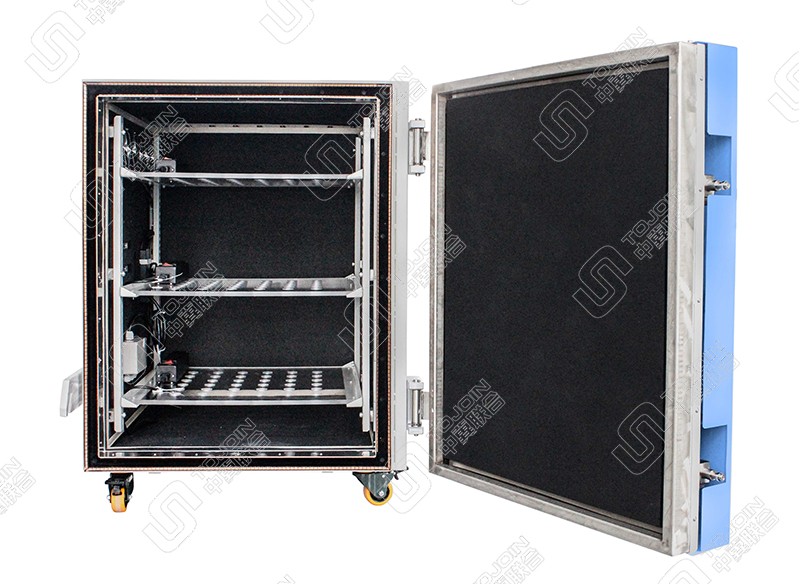

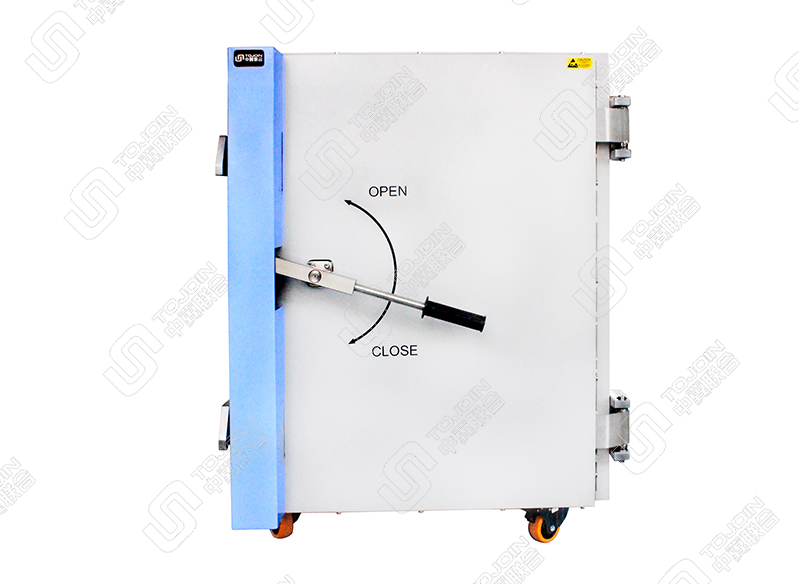

MS8088 RF MANUAL SHIELDING BOX

   1.  Model No: MS8088

2.Material Code: 60.00.001.1450

3.Specifications:



Frequency Range (GHz)

0.8 - 8



Shielding   Effect

80 dB @2.4 GHz

80 dB @5.8 GHz





Interface   Type

VGADB9DB25USB2.0USB3.0SMARJ45BNCRCADCACHDMIAV3.5, etc.

(Could be customized and optional)

Numbers of Filters

5 pcs, SMA*6

Operation Mode

Manual

Working Temperature (℃)

Normal Temperature

Inside Dimension (mm)

760(W)*772(D)*960(H)

Appearance Size (mm)

842(W)*961(D)*1095(H)

Weight (kg)

Approximately 80



Appearance   Color

Body: Beige, Door: Light Blue



(Could   be customized)

Absorb material(mm)

30mm flat foam
