AS4356 shielding box
AS4356 shielding box
detailed information
1.Product Name： AS4356 shielding box
2.P/N：60.00.102.1150
3. Technical Specification
Technical Specification： | |
Working frequency（GHz） | 0.8-8 GHz |
Shielding effect | ≥75 db @2.4GHz/@5.8GHz |
≥70 db @7.5GHz | |
Interface Type | 3*SMA 3*N/SMA 1*USB |
numbers of filters | 0 |
working temperature（°C） | Normal |

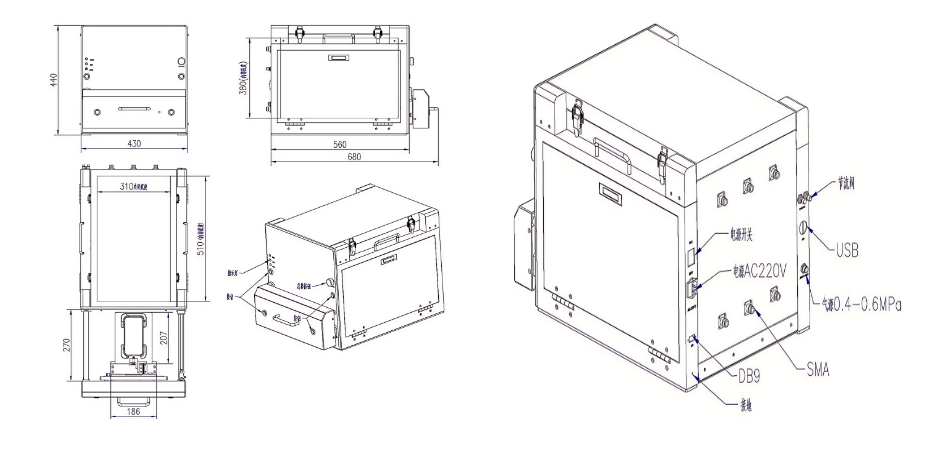

Working Dimensions（mm） | 310(W)*510(D)*380(H) |
Outer Dimensions（mm） | 430(W)*560(D)*440(H) |
Weight（kg） | 35Kg |
Appearance of color | Gray |
