MS80180-B
MS80180-B
Product Name Manual shield box
Product Model MS80180-B/800(W)*950(D)*1800(H)
Product Number 60.00.001.1152
Product Description
MS80180-B is an economical manual cabinet shielding box, suitable for building modules, terminal testing solution platform for smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, smart home and other fields. The shield box is made of high-quality large-scale plate laser CNC cutting, sheet metal molding, electroplating, electrostatic spraying paint, assembly and commissioning, aging, testing and other more than a dozen strict process, with high shielding effectiveness, reliable structure, stable performance The advantages. Filter selection can be based on the actual needs of the customer, configure the appropriate I / O data interface, RF interface, or finalize the development of non-standard communication interface.

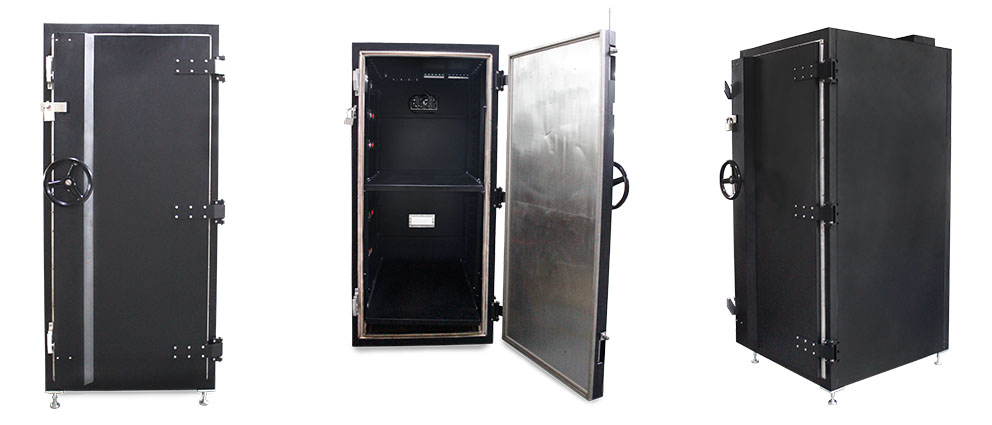

Product Appearance
Product Features
◆ The working size meets most of the testing requirements for smart mobile terminals on the market.
◆ The complete communication interface design allows you to build a test platform that is easier and faster.
◆ Interior with removable, adjustable height drawer compartment.
◆ A padlock on the door reduces the risk of being mistakenly opened when testing.
◆ Contain multiple sets of multi-mode single-mode optical fiber interface (fiber terminal box installation).
Technical Specifications
Working frequency（GHz） | 1MHz～10GHz |
Shielding effect | ≥60 dB |
Interface Type | LC Fiber |
Numbers of filters | 0 pcs |
Control method | Manually |
Working temperature（°C） | Normal temperature work |
Internal Dimensions（mm） | 800(W)*950(D)*1800(H) |
Appearance Dimension（mm） | 970(W)*1160(D)*2140(H) |
Weight（kg） | About 300 |
Appearance of color | Sand patterned Black（according to customer requirements） |

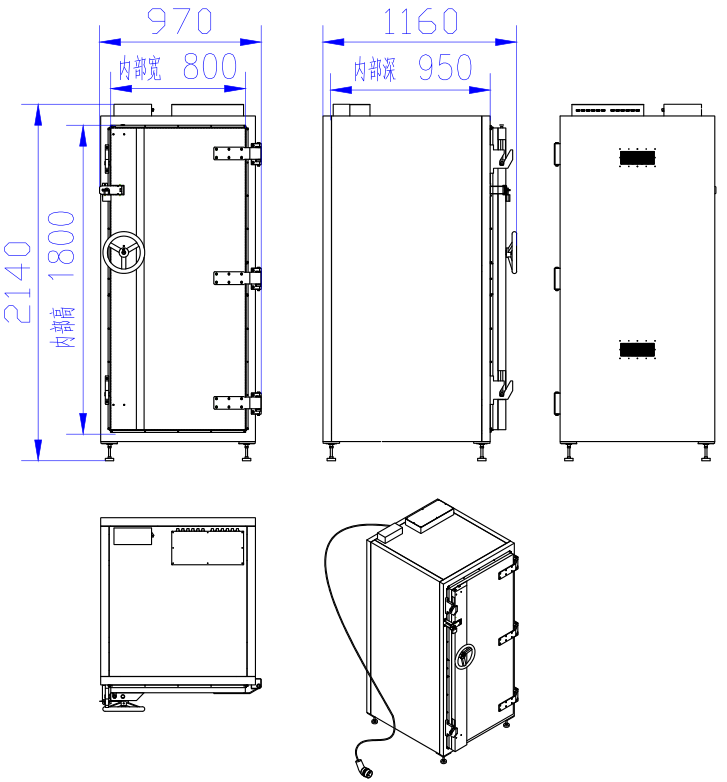

Appearance structure
