Product Name Shielded room
Product Model P1250-B/1200(W)*2100(D)*1750(H)
Product Number 60.00.001.1192
Product Description
P1250-B is an economical small-sized shielded room suitable for building modules and terminal test solution platforms for smart phones, WI-FI, Bluetooth, smart grid devices, automotive electronics, drones, and smart homes. The shielded room is made of high-quality large-scale plate laser CNC cutting, sheet metal molding, electroplating, electrostatic spraying paint, assembly and commissioning, aging, testing and other more than a dozen strict process, with high shielding effectiveness, reliable structure, stable performance The advantages. Filter selection can be based on the actual needs of the customer, configure the appropriate I / O data interface, RF interface, or finalize the development of non-standard communication interface.

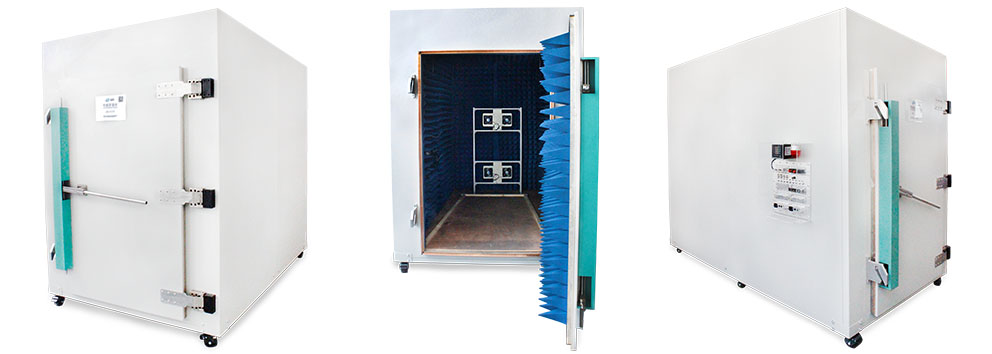

Product Appearance
Product Features
◆ The large working size meets most of the testing requirements of smart mobile terminals on the market.
◆ The overall splicing structure can be disassembled and reinstalled if necessary.
◆ Casters for easy movement to different sites for testing.
◆ Ventilation equipment and temperature monitoring warning device.
◆ The use of a new type of wave-absorbing material minimizes the reflected signal in the box and reduces the chance of false detection due to the environment.
◆ The complete communication interface design allows you to build a test platform that is easier and faster.
Technical Specifications
Working frequency（GHz） | 0.8～4GHz |
Shielding effect | ≥70dB @2.4GHz |
Interface Type | VGA、DB9、DB25、USB2.0、USB3.0、SMA、RJ45、BNC、RCA、DC、AC etc. (Could be customized and optional) |
Numbers of filters | 8 pcs |
Control method | Manually |
Working temperature（°C） | Normal temperature work |
Internal dimensions（mm） | 1200(W)*2100(D)*1750(H) |
Appearance dimension（mm） | 1760(W)*3320(D)*2250(H) |
Weight（kg） | About 1000 |
Appearance of color | Beige (according to customer requirements) |

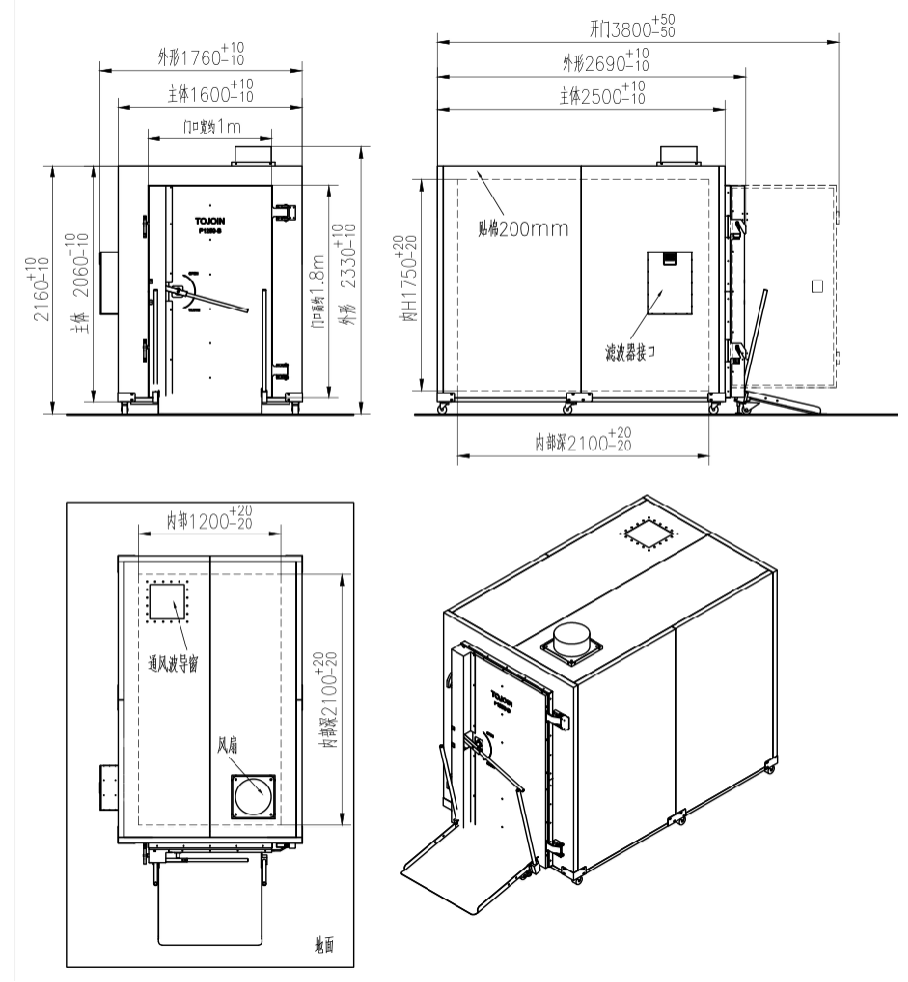

Appearance structure

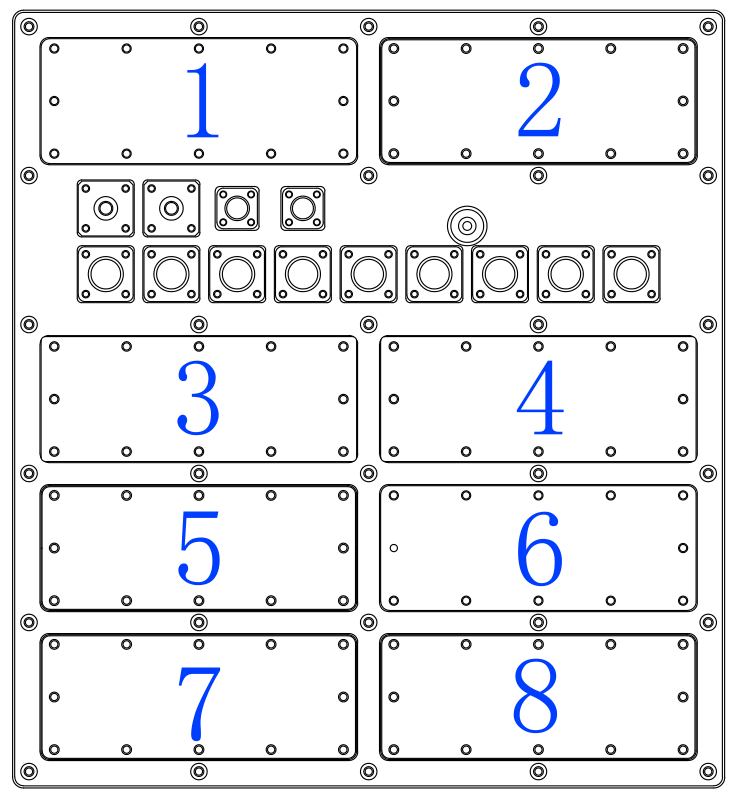

Note: The filter can be combined and selected according to customer needs.
