Product Name Automatic shielding box
Product Model SD3943/W346*D386*H278.5
Product Number 60.00.102.1190
Product Description
SD3943 is an economical pneumatic single-layer shielding box. It is suitable for building module and terminal test solution platforms in smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, and smart homes. The shield box is made of high-quality large-scale plate laser CNC cutting, sheet metal molding, electroplating, electrostatic spraying paint, assembly and commissioning, aging, testing and other more than a dozen strict process, with high shielding effectiveness, reliable structure, stable performance The advantages. Filter selection can be based on the actual needs of the customer, configure the appropriate I / O data interface, radio frequency interface and finalize the development of non-standard communication interface.

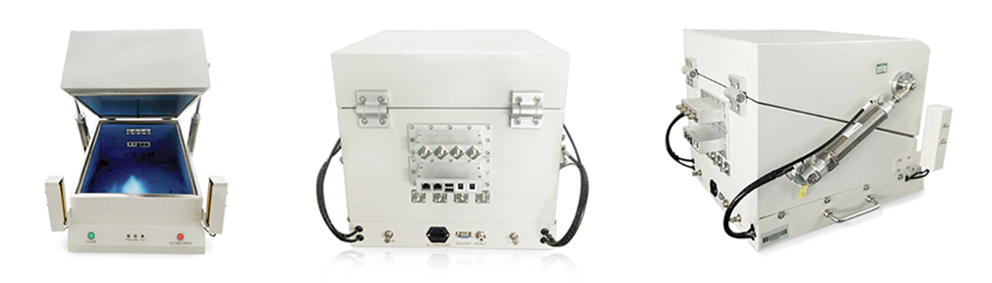

Product Appearance
Product Features
The working size of 346*386*278.5 meets most of the testing requirements of smart mobile terminals on the market.
The use of a new type of wave-absorbing material minimizes the reflected signal in the box and reduces the chance of false detection due to the environment.
The complete communication interface design allows you to build a test platform that is easier and faster.
Reliable safety protection measures, high sensitivity magnetic ring sensor and photoelectric sensor double protection.
Support RS232 serial communication command control.
Support PLC online programming control.
Technical Specifications
Working frequency(GHz) | 0.8～6 |
Shielding effect | ≥80dB@2.4GHz |
Interface Type | VGA,DB9,DB25,USB2.0,USB3.0,SMA,RJ45,BNC,RCA,DC,AC,optical fiber,HDMI,AV3.5, etc. (Could be customized and optional) |
Numbers of filters | 2 pcs |
Control method | Touch switch control |
Safety protection measures | Magnetic ring, light sensor dual protection, ensure operational safety |
Working temperature(℃) | Normal temperature work |
Working size(mm) | 346(W)*386(D)*278.5(H) |
Appearance dimension(mm) | 470(W)*534(D)*392(H) |
Weight(Kg) | About 50 |
Appearance of color | Beige (according to customer requirements) |

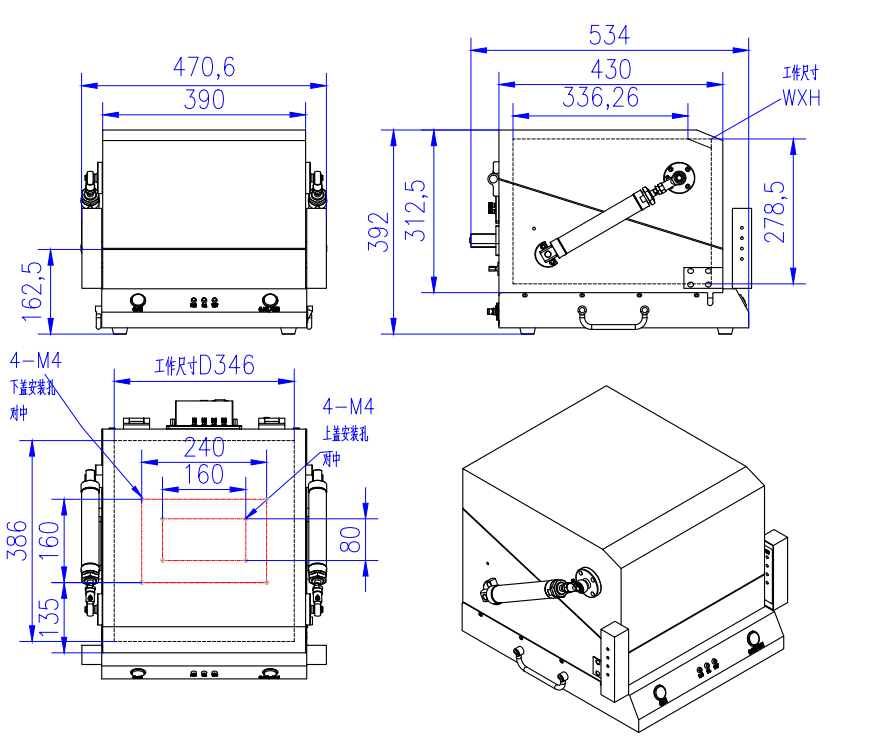

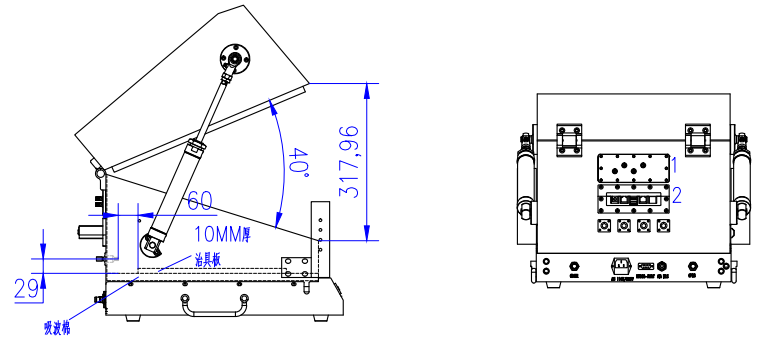

Appearance structure
Note: The filter can be combined and selected according to customer needs.
