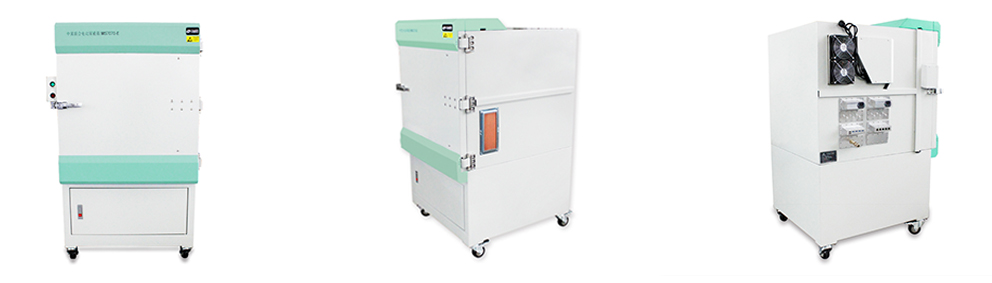

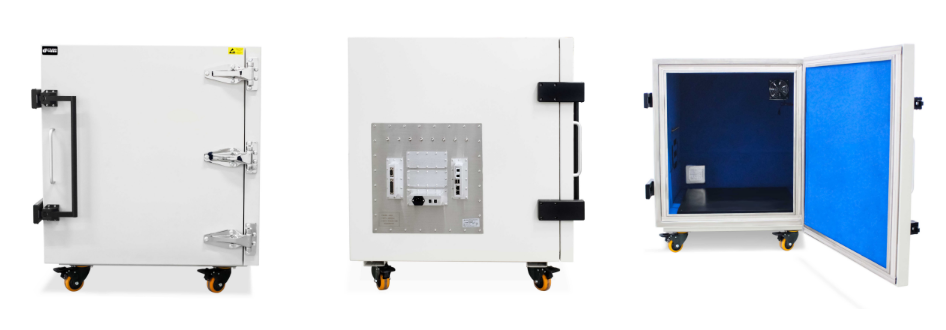

MS7070 series shielding box
MS7070 series shielding box
Product Description
MS7070 series is a manual shielding box, which is suitable for building module and terminal test solution platform in smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, smart homes and other fields.
MS7070 Series Technical Specifications
Model/Number | Frequency（GHz） | Shielding effect（dB） | Number of filter openings | Internal and external dimensions（mm） | Weight（kg） |
MS7070-E 60.00.001.0736 | 0.8～8 | ≥80@2.4GHz/5.8GHz | 8pcs | External：799.7(W)*837.5(D)*1398(H) | About 90 |
MS7070 60.00.001.0737 | 0.8～8 | ≥75@2.4GHz/5.8GHz | 5pcs | External：878.5(W)*838(D)*1307(H) | About 90 |
MS7070-A-01 60.00.001.0738 | 0.8～8 | ≥75@2.4GHz/5.8GHz | 5pcs | External：878.5(W)*838(D)*1307(H) | About 90 |
MS7070-A-03 60.00.001.1330 | 0.8～8 | ≥75@2.4GHz/5.8GHz | Left 2pcs | Internal：696(W)*696(D)*696(H) External：848.4(W)*838(D)*1305(H) | About 90 |
