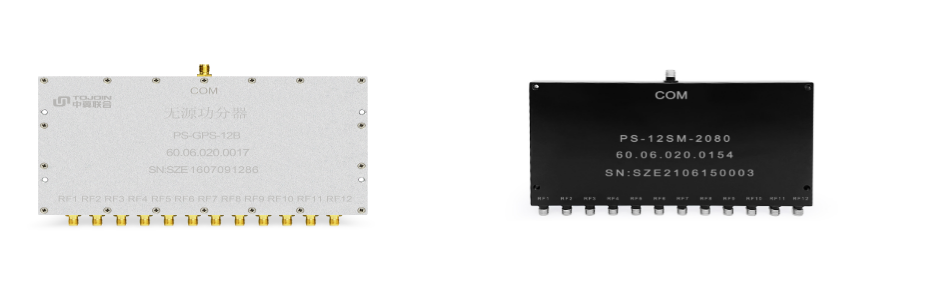

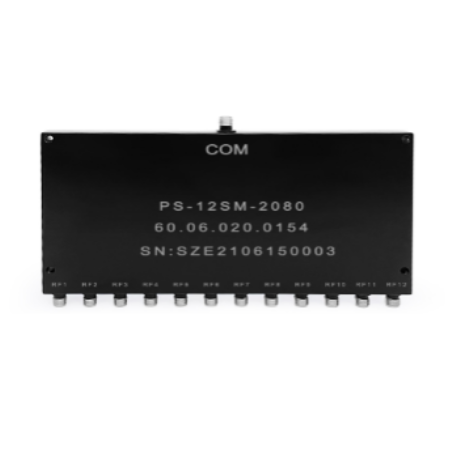

Power splitter (12-way) Series

Power splitter (12-way) Series

detailed information

Power splitter (12-way) Series Technical Specifications

Model/Number

Frequency

（GHz）

Insertion loss

(dB)

(including

distribution

ratio)


Isolation（dB）

Standing wave ratio（VSWR）

Balance



Interface

type




Power

Capacity

（W）


Appearance

dimension

（mm）


Weight

（Typ.）（g）

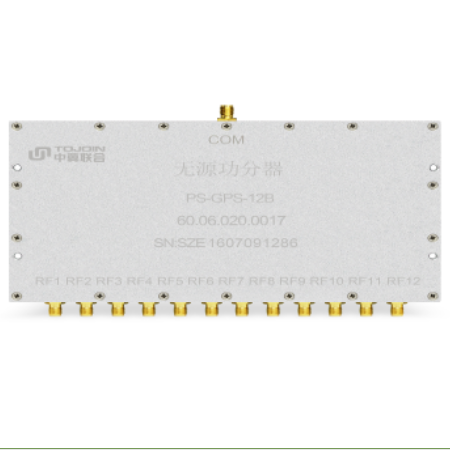

PS-GPS-12B

60.06.020.0017

1.55~1.65

≤12

≥20

≤1.5

Amplitude ≤0.5dB

Phase≤5°

SMA

10

182.0×102.0×13.5

500

PS-12NM-0727

60.06.020.0085

0.7~2.7

≤13

≥20

≤1.5

Amplitude ≤0.6dB

Phase≤5°

N

30

221.0×181.5×18.0

-
