AS3545 series shielding box
AS3545 series shielding box
detailed information
Product Description

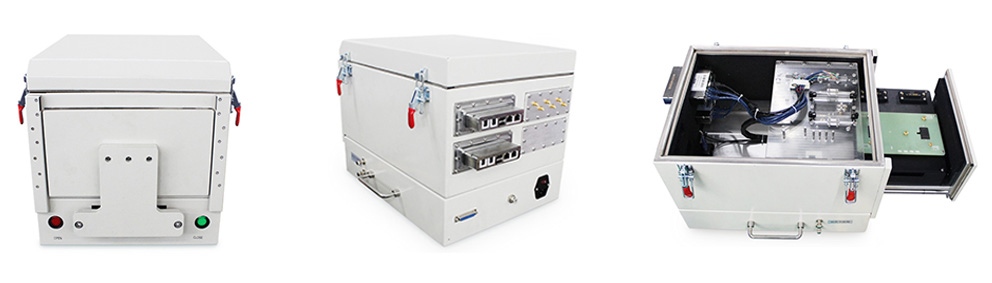

AS3545 series is a drawer type automatic shielding box. It is suitable for the wireless testing of the semi-finished products of the set-top box of the router, and has two modes of manual and serial automatic operation, which can be applied to the application reform of the factory automation test system.
AS3545 Series Technical Specifications

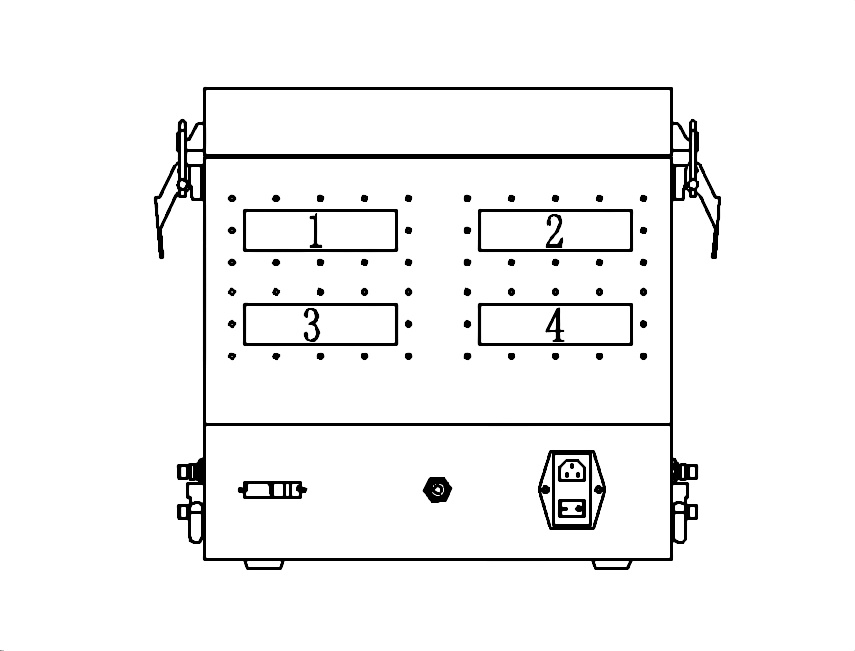

Model/Number | Frequency(GHz) | Shielding effect(dB) | Number of filter openings | Internal and external dimensions(mm) | Weight(Kg) |

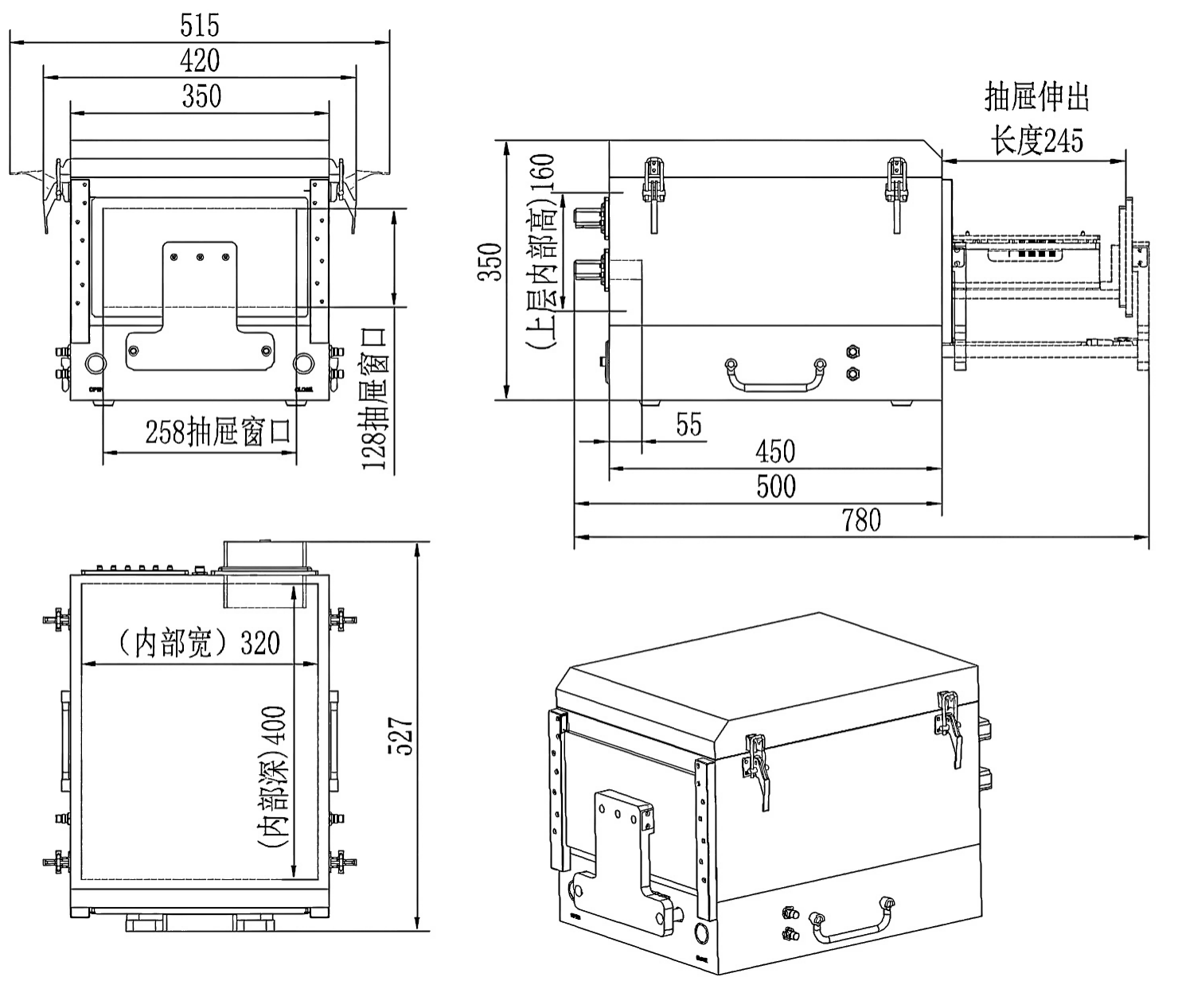

AS3545-A 60.00.102.1091 | 0.8～6 | ≥75@2.4GHz/5.8GHz | 4pcs | Internal:320(W)*400(D)*190(H) External:350(W)*450(D)*380(H) | About 40 |
AS3545 60.00.102.1090 | 0.8～6 | ≥75@2.4GHz ≥70@5.8GHz | 4pcs | Internal:320(W)*400(D)*160(H) External:350(W)*450(D)*350(H) | About 30 |
