Product Description
ES4040 series is an electric drawer shielding box for unlimited communications testing, EMI testing, coupling testing, RF functional testing, etc. used to build smart phones, WIFI, Bluetooth, smart grid equipment, automotive electronics, drones, smart home, etc. Domain module and terminal test solution platform.
ES4040 Series Technical Specifications
Model/Number | Frequency(GHz) | Shielding effect(dB) | Number of filter openings | Internal and external dimensions(mm) | Weight(Kg) |
ES4040 60.00.001.0930 | 0.8～6 | ≥75@2.4GHz/5.8GHz | 1pcs | Internal:330(W)*333(D)*218(H) External:433(W)*563.5(D)*304(H) | About 30 |
ES4040-B 60.00.001.0931 | 0.8～6 | ≥70@2.4GHz/5.8GHz | 2pcs | Internal:280(W)*330(D)*209(H) External:380(W)*580.5(D)*340(H) | About 30 |
ES4040-C 60.00.001.0933 | 0.8～6 | ≥75@2.4GHz, ≥70@5.8GHz | 2 pcs | External:440(W)*607(D)*373.5(H) | About 30 |
ES4040-D 60.00.001.0934 | 0.8～6 | ≥75@2.4GHz, ≥70@5.8GHz | 3 pcs | External:460(W)*460(D)*385(H) | About 30 |
ES4040-D01 60.00.001.0935 | 0.8～6 | ≥70 | 3 pcs | External:460(W)*460(D)*385(H) | About 30 |
Product Appearance

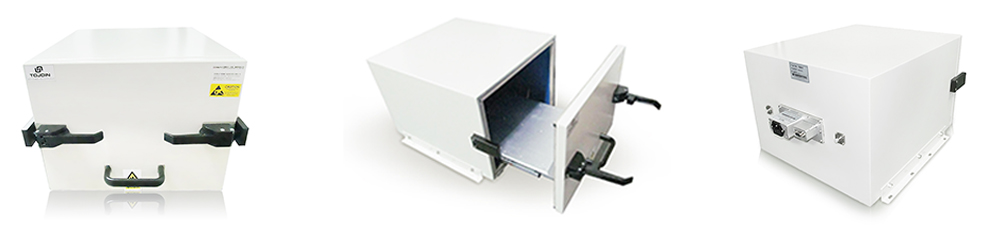

ES4040

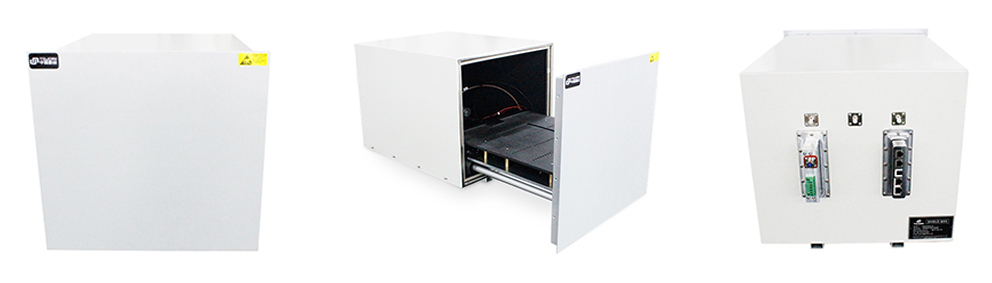

ES4040-B

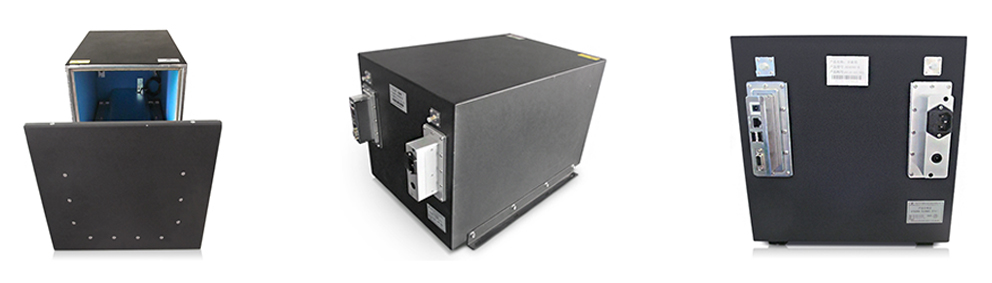

ES4040-C

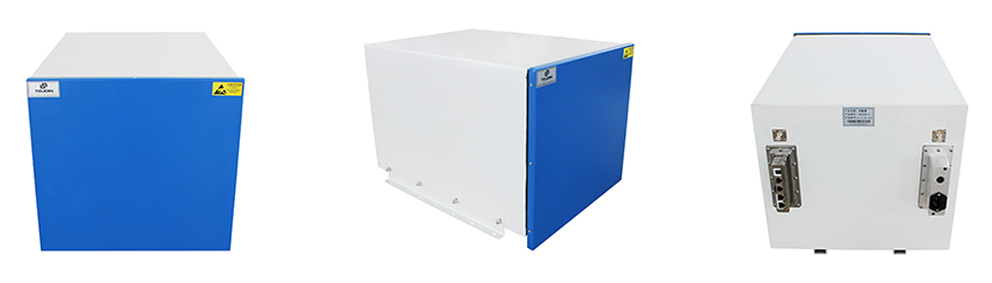

ES4040-D
ES4040-D01
