Product Description

    DSD4345 is a double-layer pneumatic shielded box. Its working size is suitable. It is widely used in intelligent terminal products such as WIFI, 2G, 3G, 4G, Bluetooth, GPS, BD, etc. The research and development, production test verification, such as smart meter, mobile phone, tablet Laboratory or production testing of computers, wireless routers, network cards, drones, Bluetooth headsets, speakers, etc. The shield box is made of high-quality large-scale SPPC materials such as CNC cutting, sheet metal forming, surface plating, electrostatic spraying paint, assembly and debugging, aging/testing and other dozens of rigorous processes, with high shielding effectiveness, reliable structure, and performance. Stable advantages. Filter selection can be based on customer needs, configure the appropriate I / O data interface, RF interface or finalize the development of non-standard communication interface.

DSD4345 Series Technical Specifications

Model/Number

Frequency(GHz)

Shielding effect(dB)

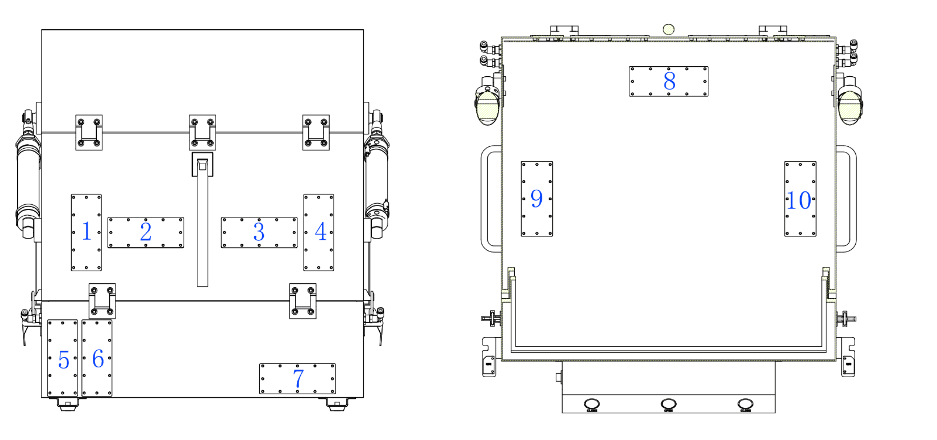

Number of filter openings

Internal and external dimensions(mm)

Weight(Kg)

DSD4345-A

60.00.101.0080

0.8~6

≥75@2.4GHz/5.8GHz

External 7pcs

Internal 3pcs

Internal:(upper layer)

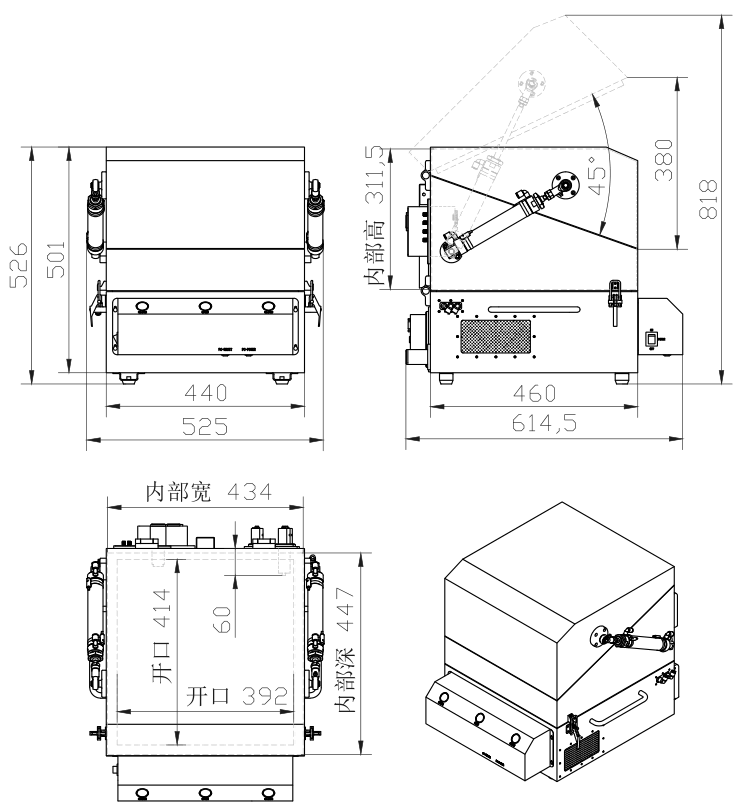

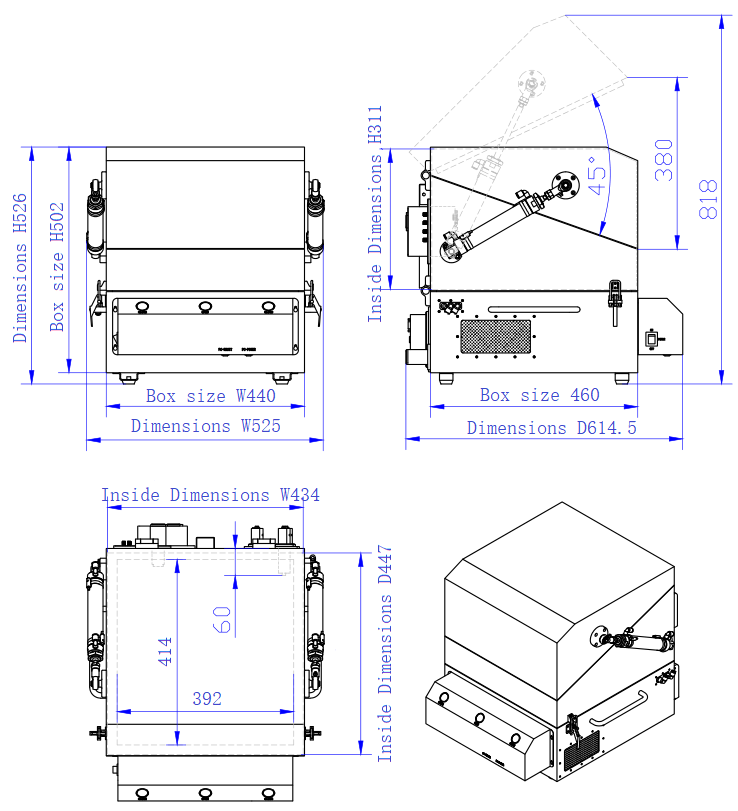

434(W)*447(D)*311(H)

(under layer)

434(W)*447(D)*180(H)

External:525(W)*615(D)*526(H)


About 50

DSD4345-J

60.00.101.0070

0.8~6

≥75@2.4GHz/5.8GHz

External 7pcs

Internal 3pcs

Internal:(upper layer)

434(W)*447(D)*311(H)

(under layer)

434(W)*447(D)*180(H)

External:525(W)*620(D)*526(H)


About 50

DSD4345-L

60.00.101.0060

0.8~6

≥75@2.4GHz

≥70@5.8GHz


External 8pcs

Internal 3pcs

Internal:434(W)*447(D)*311(H)

External:525(W)*615(D)*526(H)


About 50

DSD4345-G

60.00.102.0955

0.8~6

≥75@2.4GHz

≥70@5.8GHz


External 7pcs

Internal 3pcs

Internal:434(W)*447(D)*311(H)

External:525(W)*615(D)*526(H)


About 50

DSD4345-G-05

60.00.102.0942

0.8~6

≥75@2.4GHz

≥70@5.8GHz


External 7pcs

Internal 3pcs

Internal:434(W)*447(D)*311(H)

External:525(W)*615(D)*526(H)


About 50

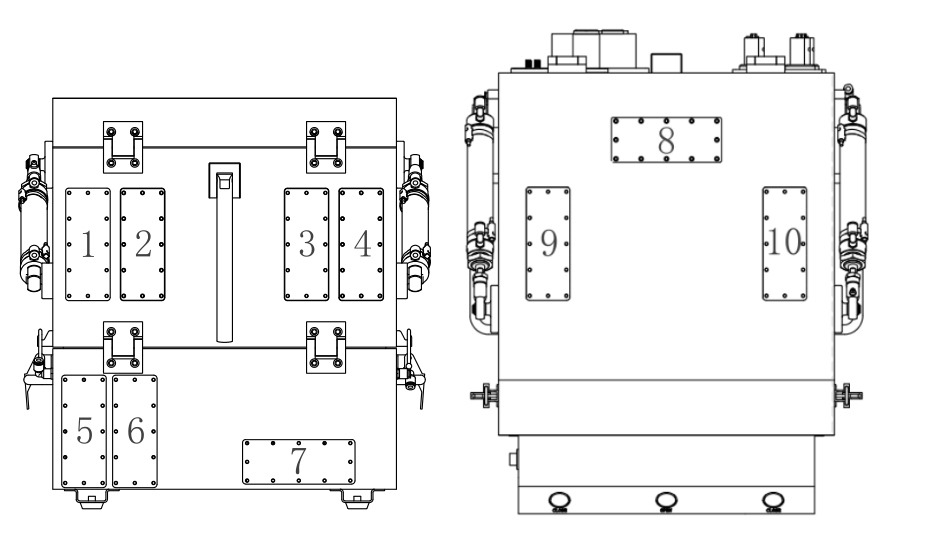

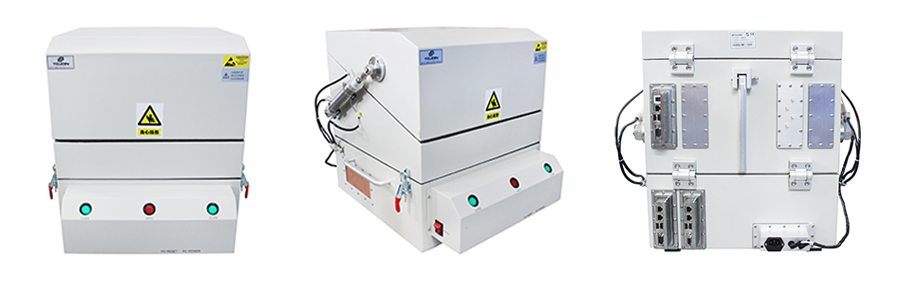

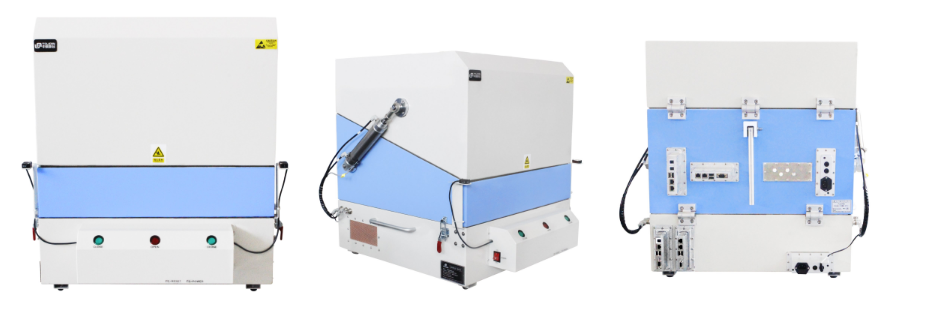

Product Appearance


DSD4345-J


DSD4345-L


DSD4345-G
