Power splitter (4-way) Series

Power splitter (4-way) Series


detailed information

Power splitter (4-way) Series Technical Specifications

Model/Number

Frequency

(GHz)

Insertion loss

(dB)

(including

distribution

ratio)

Isolation(dB)

Standing wave ratio(VSWR)

Balance



Interface

type




Power

Capacity

(W)

Appearance

dimension

(mm)

Weight

(Typ.)(g)

PS-4SM-0560

60.06.020.0088

0.5~6

≤7

@0.5~3.5GHz

≤7.8

@3.5~6GHz

≥13

@0.5~0.6GHz

≥20

@0.6~6GHz

Enter

≤1.45@0.5~0.8GHz

≤1.45@0.8~3.5GHz

≤1.5@3.5~5.8GHz

≤1.65@5.8~6.0GHz

Output:

1.45@0.5~0.8GHz

1.35@0.8~3.5GHz

1.5@3.5~6.0GHz

Amplitude:

≤0.25dB

@0.7~1.0GHz

≤0.35dB

@2.4~2.5GHz

≤0.5dB

@4.8~5.8GHz

Phase:≤5°

SMA

5

66.0×57.0×13.5

136g


PS-4NM-1517G6

60.06.021.0008

1.5~1.7

-

-

Enter:≤2.0

Output:≤1.5

-

N

-

111×109.5×20.5

365g

PS-TX-4B

60.06.020.0001

2~6

≤7

≥20

≤1.4

Amplitude:

≤0.3dB

Phase:

≤5°

SMA

10

59.5×52.0×12.0

91g

PS-GPS-4NS

60.06.020.0021

1.57~1.58

≤7.5

≥28

≤1.35

Amplitude:

≤0.3dB

Phase:

≤5°

SMA(with DC-block 50VDC max)

20

66.5×47.5×12.0

84g

PS-GPS-4NS1

60.06.020.0107

1.57~1.58

≤7.5

≥30

≤1.25

Amplitude:

≤0.3dB

Phase:

≤5°

SMA(COM、RF1 DC through;RF2~RF8with   DC-block 50VDC max)

20

66.5×47.5×12.0

84g

PS-4SM-DC08

60.06.020.0048

10~800MHz

≤8

≥20

≤1.4

Amplitude:

≤0.3dB

Phase:

≤5°

SMA

2

60.0×43.0×15.0

PS-4NM-0325

60.06.020.0071

0.3~2.5

≤7.2

≥17

@0.3~0.35GHz;

≥20

@0.35~2.5GHz

≤1.5

Amplitude:

≤0.3dB

Phase:

≤5°

N

20

119×110×20

700

PS-4NM-2060

60.06.020.0063

2~6

≤7.5

≥20

≤1.35

Amplitude:

≤0.3dB

Phase:

≤5°

N-F

50

107×65×20.65

378g

PS-4NM-0727

60.06.020.0066

0.7~2.7

≤7

≥20

≤1.4

Amplitude:

≤0.4dB

Phase:

≤6°

N-F

50

105×71.5×18.5

348g

PS-GPS-4NS-20

60.06.021.0002

1.575~1.58

-

≥20

Enter:≤2

Output:≤1.5

Amplitude:

≤0.3dB

Phase:

≤5°

N-Female

Enter10

121.5×99.0×21.0

300g

PS-4NM-1517G7B

60.06.021.0017

1.565~1.585

-

≥20

Enter:≤2

Output:≤1.5

-

N-Female

-

111×109.5×20

300g

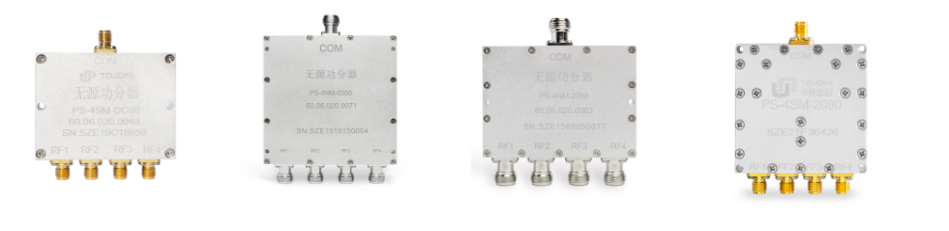

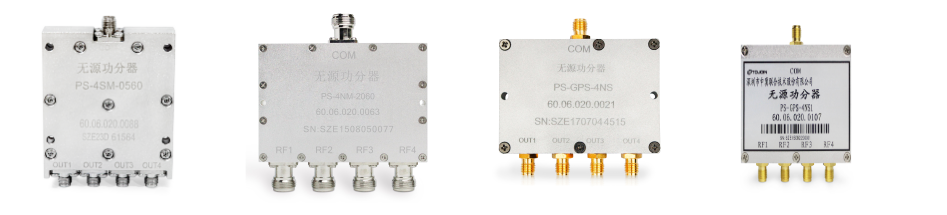

Product Appearance

              PS-4SM-0560                             PS-TX-4B                                      PS-4NM-1517G6                          PS-GPS-4NS
