Power splitter (2-way) Series Technical Specifications

 Passive power splitter

Model/Number

Frequency

(GHz)

Insertion loss

(dB)

(including

distribution

ratio)

Isolation

(dB)

Standing wave ratio(VSWR)

Balance




Interface

type



Power

Capacity

(W)

Appearance

dimension

(mm)

Weight

(Typ.)(g)

PS-2SM-0460

60.06.020.0039

0.4~6

≤3.5

@0.4~4GHz

≤4.5

@4~6GHz

≥20

≤1.45

@0.4~0.8GHz

≤1.35

@0.8~6GHz

Amplitude

≤0.3dB

Phase

≤5°

SMA

5

80.2×36.4×12.0

63

PS-GPS-2T

60.06.020.0095

1.55~1.65

≤3.5

≥25

≤1.35

Amplitude

≤0.2dB

Phase

≤5°

N-F

50

50.0×50.0×20.5

-

PS-GPS-2D1

60.06.020.0108

1.2~1.7

≤3.5

≥20

≤1.35

Amplitude

≤0.2dB

Phase

≤5°

SMA(COM、RF1 DC through;RF2~RF8with DC-block 50VDC max)

30

51.0×51.0×17.5

-

PS-2SM-2080

60.06.020.0019

2~8

≤3.5

@2~6GHz

≤3.8

@6~8GHz

≥20

@2~6GHz

≥18

@6~8GHz

≤1.35

Amplitude

≤0.3dB

Phase

≤5°

SMA

10

32.0×33.5×12.9

35

PS-GPS-2D

60.06.020.0004

1.2~1.7

≤3.5

≥20

≤1.35

Amplitude

≤0.3dB

Phase

≤5°

SMA (with DC-block 50VDC max)

30

51.0×51.0×17.5

92

PS-2NM-0727

60.06.020.0026

0.7~2.7

≤3.5

≥20

≤1.3

Amplitude

≤0.3dB

Phase

≤5°

N

50

50.0×50.0×20.5

155

PS-2NM-2060

60.06.020.0089

2~6

≤4.2

≥20

1.5

Amplitude 0.3dB

Phase

N-F

50

50.0×50.0×20.5

155

PS-2SM-0427

60.06.020.0083

0.4~2.7

≤4.2

≥20

≤1.5

Amplitude

≤0.2dB

Phase

≤5°

SMA

20

62.0×61.0×17.5

165

PS-2SM-0305

60.06.020.0076

0.3~0.5

≤3.5

≥20

≤1.35

Amplitude

≤0.3dB

Phase

≤5°

SMA

30

74.5×52.0×17.0

-

PS-2NM-0709

60.06.020.0080

0.7~0.9

≤3.5

≥20

≤1.35

Amplitude

≤0.2dB

Phase

≤5°

N-F

50

50.0×50.0×20.5

-

PS-2SM-0727

60.06.020.0035

0.7~2.7

≤3.5

≥20

≤1.3

Amplitude

≤0.3dB

Phase

≤5°

SMA

50

51.0×51.0×17.5

-

PS-2NM-0305

60.06.020.0077

0.3~0.5

≤3.8

≥20

≤1.35

Amplitude

≤0.2dB

Phase

≤5°

N-F

30

77.5×50.4×18.5

192

PS-2SM-DC08

60.06.020.0047

10~800MHz

≤4

≥20

≤1.4

Amplitude

≤0.3dB

Phase

≤5°

SMA (optional BNC or N-F)

2

25.5×38.5×15.4

-

PS-2SM-0727

60.06.020.0027

0.7~2.7

≤3.5

≥20

≤1.35

Amplitude

≤0.3dB

Phase

≤5°

SMA

50

51.5×50.3×21.0

140

PS-2NM-0310

60.06.020.0044

0.3~1

≤3.8

≥20

≤1.35

Amplitude

≤0.3dB

Phase

≤5°

N-F

30

77.5×50.4×18.5

192

Active power splitter

Model/Number

Frequency

(GHz)

Gain

(Typ.)(dB)

Isolation(Typ.)(dB)

Standing

wave ratio

(VSWR)

Balance




Interface

type



Power

Capacity

(W)

Appearance

dimension

(mm)

Weight

Typ.)(g)

PS-2NM-GPS-G12

60.06.021.0012

1.575~1.58

12

-30

@ 1575.42 MHz (L1);

-25

@ L1 ≤f ≤ L1 +10 MHz;

     -25

@ L1-10MHz ≤f ≤ L1

Enter

≤1.5

Output

≤1.3

Amplitude

≤0.3dB

Phase

≤5°

N-

Female

20

97.5×79.5×32.5

200

PS-2TM-1117-G12A

60.06.021.0016

1.1~1.7

10

25

Enter

≤2

Output

≤1.8

Amplitude

0.3dB

Phase

≤5°

TNC-Female

20

75×53×21.5

200

Product Appearance

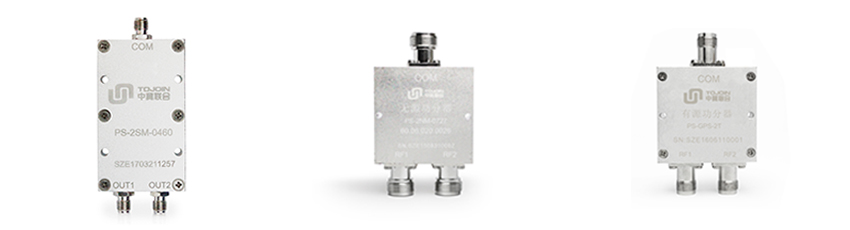

                      PS-2SM-0460                                            PS-2NM-0727                                             PS-GPS-2T

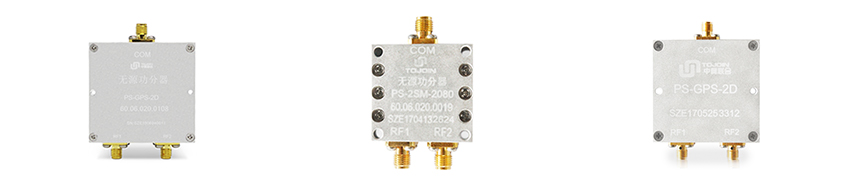

                       PS-GPS-2D1                                                PS-2SM-2080                                              PS-GPS-2D
