Power splitter (16-way) Series
Power splitter (16-way) Series
detailed information
Power splitter (16-way) Series Technical Specifications
| image | Model/Number | Frequency（GHz） | Insertion loss (dB) (including distribution ratio) | Isolation（dB） | Standing wave ratio（VSWR） | Balance | Interface type | Power Capacity （W） |
|---|---|---|---|---|---|---|---|---|
 | PS-GPS-16B 60.06.020.0043 | 1.55~1.65 | ≤13.5 | ≥20 | ≤1.5 | Amplitude ≤0.3dB Phase ≤5° | SMA(with DC-block 50VDC max) | 10 |
 | PS-16SM-2060 60.06.020.0097 | 2~6 | ≤13.5 | ≥20 | ≤1.5 | Amplitude ≤0.5dB Phase ≤5° | SMA | 10 |
PS-16SM-1575G24-A 60.06.021.0022 | 1.55~1.61 | - | ≥20 | ≤1.5 | ≤2 | SMA | 30mA |

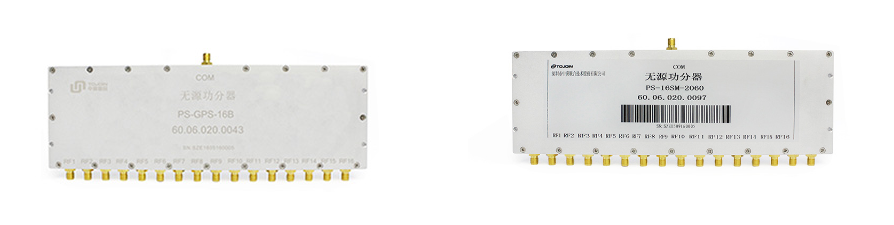

Product Appearance
PS-GPS-16B PS-16SM-2060
