ATT 12.4G RF Attenuator
ATT 12.4G RF Attenuator
detailed information
RF Fixed Attenuator 12.4G 2W 50Ω SMA Male to Female

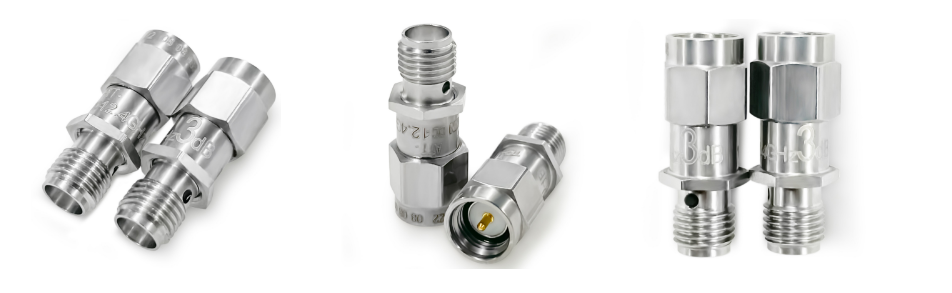

Product Appearance
APPLICATIONS
Impedance Matching
Instrumentation
Test Setups
ATT 12.4G Attenuator Technical Specifications
Number | Attenuation Value （dB） | Frequency （GHz） | Interface Type | VSWR | Inner Conductor Material | Outer Conductor Material |
60.06.040.0114 | 3dB±0.5 | DC-12.4 | SMA male-SMA female | ≤1.25 | Gold-plated copper alloy | Stainless steel rustproofing treatment |
| 60.06.040.0124 | 6dB±0.5 | DC-12.4 | SMA male-SMA female | ≤1.25 | Gold-plated copper alloy | Stainless steel rustproofing treatment |
| 60.06.040.0110 | 10dB±0.5 | DC-12.4 | SMA male-SMA female | ≤1.25 | Gold-plated copper alloy | Stainless steel rustproofing treatment |
| 60.06.040.0226 | 20dB±0.8 | DC-12.4 | SMA male-SMA female | ≤1.25 | Gold-plated copper alloy | Stainless steel rustproofing treatment |
| 60.06.040.0112 | 30dB±0.9 | DC-12.4 | SMA male-SMA female | ≤1.25 | Gold-plated copper alloy | Stainless steel rustproofing treatment |
| 60.06.040.0113 | 40dB±0.9 | DC-12.4 | SMA male-SMA female | ≤1.25 | Gold-plated copper alloy | Stainless steel rustproofing treatment |
Product Dimensions（mm）
