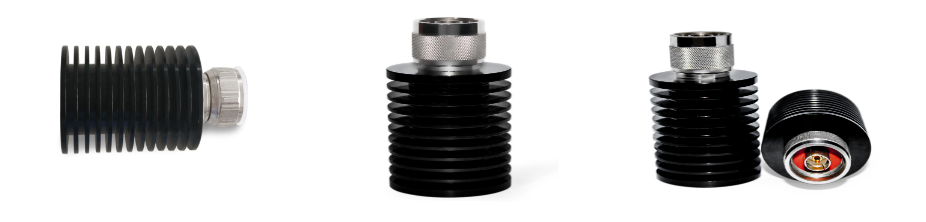

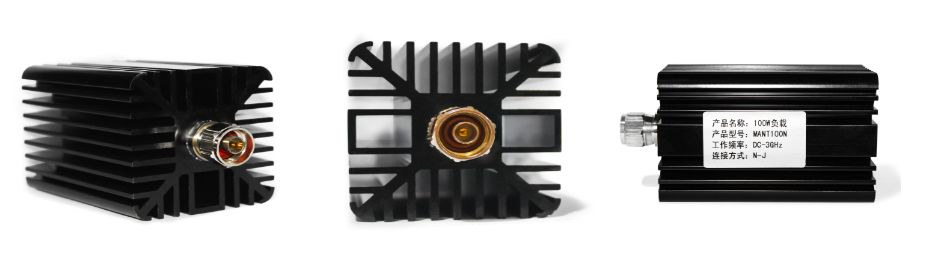

N-type load series
N-type load series
detailed information
N-type load Series Technical Specifications
Model | N-50JR-2W | N-50JR-5W | N-50JR-10W | N-50JR-20W | N-J50R-50W | N-50JR-100W |
Number | 60.06.080.0001 | 60.06.080.0002 | 60.06.080.0003 | 60.06.080.0004 | 60.06.080.0006 | 60.06.080.0014 |
Frequency（GHz） | DC-3 | DC-3 | DC-3 | DC-3 | DC-3 | DC-3 |
Average power（W） | 2 | 5 | 10 | 20 | 50 | 100 |
Standing wave ratio（VSWR） | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 |
Resistance(Ω) | 50 | 50 | 50 | 50 | 50 | 50 |
Interface type | N male | N male | N male | N male | N male | N male |
Working temperature（℃） | -10 - +70 | -10 - +70 | -10 - +70 | -10 - +70 | -10 - +70 | -10 - +70 |
Appearance dimension（mm） | Φ30.7*47 | Φ29.8*39 | Φ29.8*71 | Φ34.4*70 | Φ49.5*93 | 70*70*117 |
Standards compliant | MIL-C-39012 | MIL-C-39012 | MIL-C-39012 | MIL-C-39012 | MIL-C-39012 | MIL-C-39012 |
